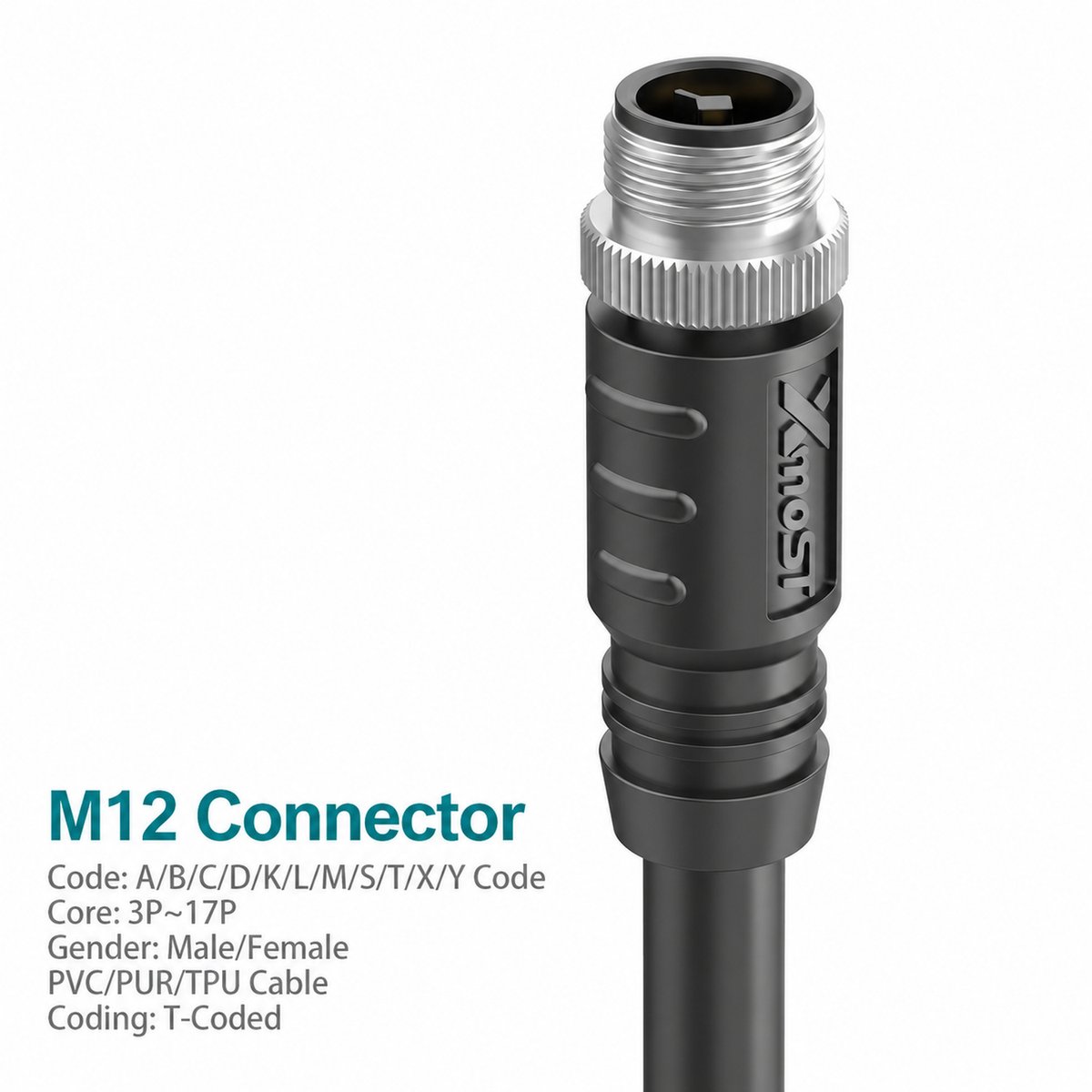

Xmost M12 T-coded male straight power cable connector provides an unshielded DC power connection for equipment with a matching T-coded female interface. Its single-ended molded construction combines the 4-pin male connector and cable into a preassembled assembly.
The straight cable exit directs the cable along the mating axis, supporting installations with clearance behind the connection. M12 × 1.0 screw locking secures the mating interface.
The catalog lists a rated current of 12 A, a rated voltage of 63 V and a wire size of 1.5 mm² / AWG16. PVC and PUR cable options are listed in 1 m and 3 m lengths.
Key Features
- 4-pin M12 T-coded male interface for compatible DC power equipment.
- 12 A rated current and 63 V rated voltage, as listed in the catalog.
- Unshielded DC power cable assembly.
- Straight molded connector for axial cable routing.
- Single-ended preassembled cable construction.
- M12 × 1.0 screw-locking interface.
- 1.5 mm² / AWG16 wire size listed in the technical specifications.
- PVC or PUR cable options, with 1 m and 3 m catalog lengths.
Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Connector axial length shown | 45.5 |
| Coupling section axial span | 13.5 |
| Molded body axial span | 32 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 14.6 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |
Dimensions correspond to the marked spans in the straight male connector drawing. Cable length is specified separately.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | T-coded |
| Contact Gender | Male |
| Contact Count | 4-pin |
| Connector Orientation | Straight |
| Assembly Type | Single-ended molded cable assembly |
| Shielding | Unshielded |
| Application Listed | DC Power |
| Standard Listed | IEC 61076-2-111 |
| Rated Current | 12 A |
| Rated Voltage | 63 V |
| Wire Size | 1.5 mm² / AWG16 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination Options Listed | Soldering / crimping |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
| Screw / Nut Material Options | Nickel-plated brass / nickel-plated zinc alloy |
| Contact Material Options | Gold-plated phosphor bronze / gold-plated brass |
| Sealing Material Options | FKM / silicone / epoxy |
| Outer Housing Material Options | TPU / PVC |
| Cable Jacket Options | PVC / PUR |
| Catalog Cable Lengths | 1 m / 3 m |
Applications
Suggested applications for this M12 T-coded male straight DC power connector include:
- Industrial automation equipment: DC supply connections to compatible T-coded female interfaces.
- Machine modules: Power wiring between compatible DC-powered components.
- Modular equipment: Detachable DC power connections between equipment sections.
- Axial cable-routing layouts: Installations where the cable can exit directly behind the connector.
Match the equipment’s voltage, current and pin assignment to the selected cable assembly.
Selection and Ordering
Specify the cable jacket and cable length. Select the corresponding unshielded straight male part number from the catalog ordering table.
Match the T-coded 4-pin interface to the equipment. Follow the male connector’s front-view pin diagram and corresponding wire-color assignment when wiring.
