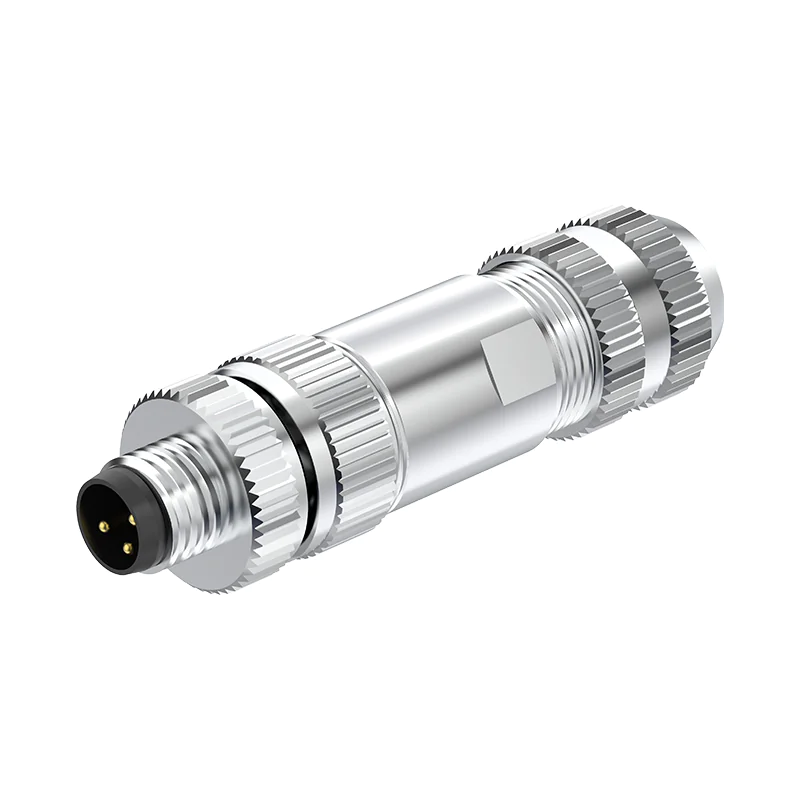

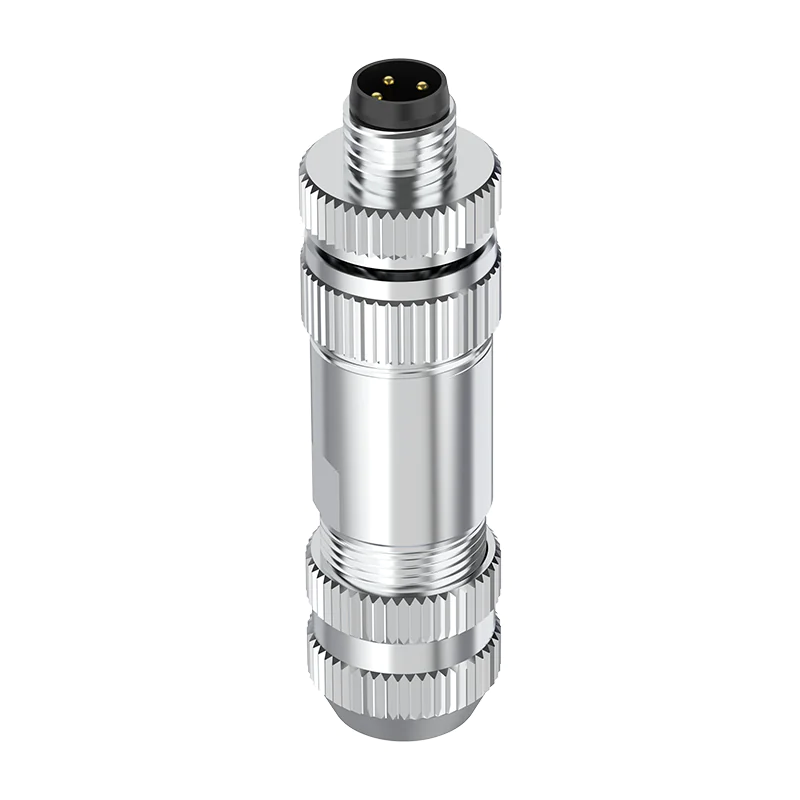

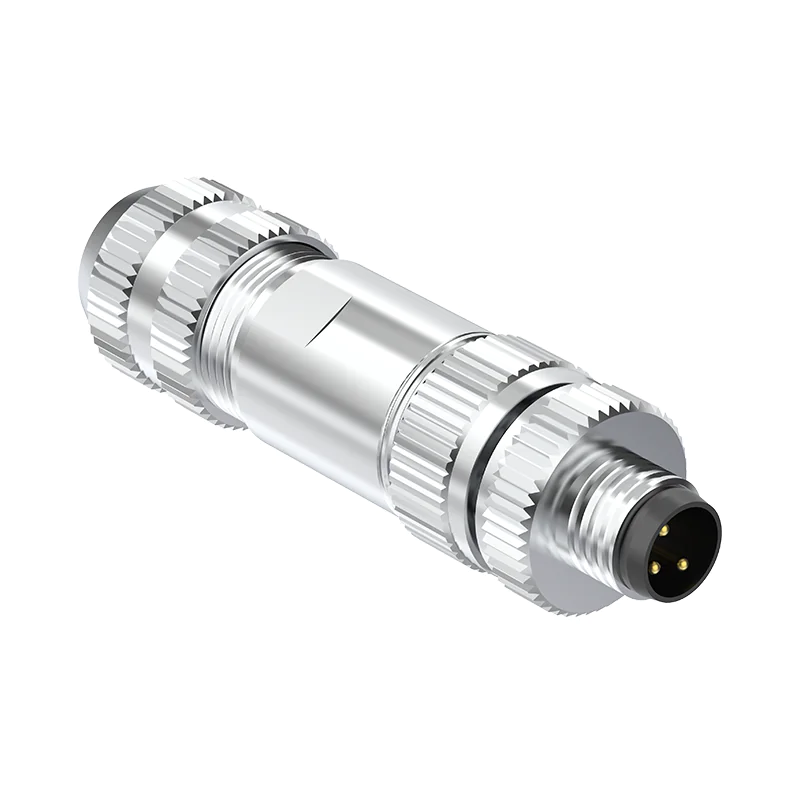

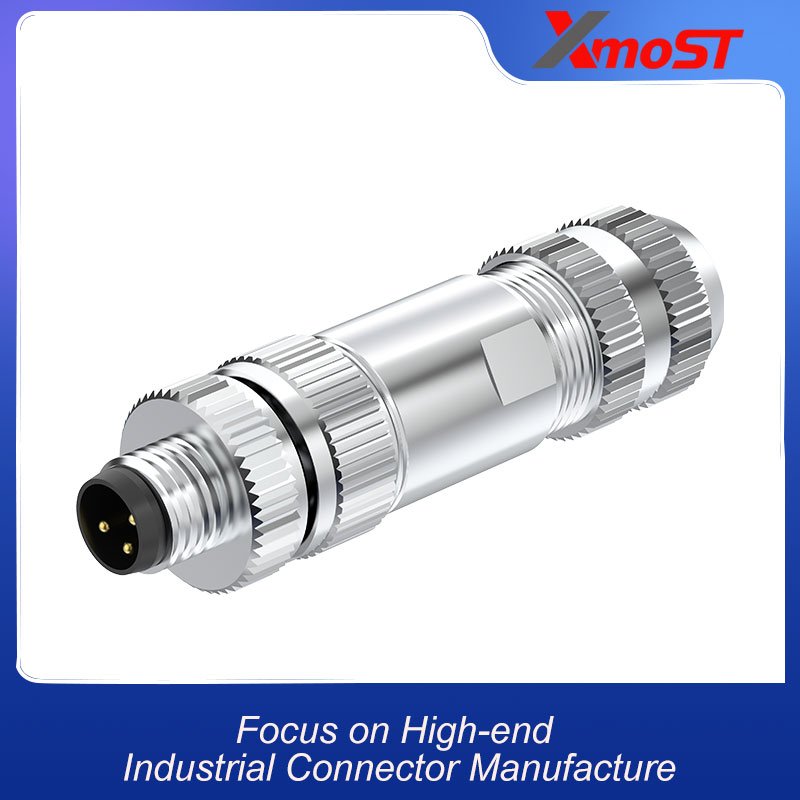

M8 Connector B-Code male metal inline is a 3Pin shielded screw connector designed for reliable signal transmission in electrically noisy environments. This M8 Connector is ideal for sensor connections, PLC I/O modules, robot control cabinets, and factory automation systems where EMI protection is critical. The M8 Connector field attachable metal plug supports wire 0.25-0.34mm² (AWG24-22), cable φ3.5-5mm. Screw termination for easy field assembly. Rated 60V / 3A. Shielded housing provides EMI protection. Screw locking M8×1.0. Housing: Metal. Gold-plated contacts. Compliant with IEC 61076-2-104. Operating temperature -25°C to +80°C (dynamic), -40°C to +80°C (static).
- Pollution Degree: 3
- Insulator Material: PA+GF/TPU+GF
- Screw/Nut Material: Nickel-Plated Brass / Nickel-Plated Zinc Alloy
- Pin Material: Gold-Plated Phosphor Bronze / Gold-Plated Brass
- Sealing Material: FKM / Silicone / Epoxy
- Outer Housing Material: Nickel-Plated Brass / Nickel-Plated Zinc Alloy
