M8 D-code female cable is a pre-molded industrial Ethernet cable designed for reliable data transmission in factory automation networks. This 4Pin straight M8 connector features D-code coding, making it an ideal Profinet cable for connecting industrial Ethernet devices such as PLCs, switches, and fieldbus systems. The pre-molded overmolded construction provides enhanced durability and IP67 waterproof protection for harsh environments. Rated 60V / 3A. Gold-plated phosphor bronze contacts ensure stable signal integrity. TPU/PVC jacket material. Compliant with IEC 61076-2-104. Operating temperature -40°C to +80°C. Length customizable.

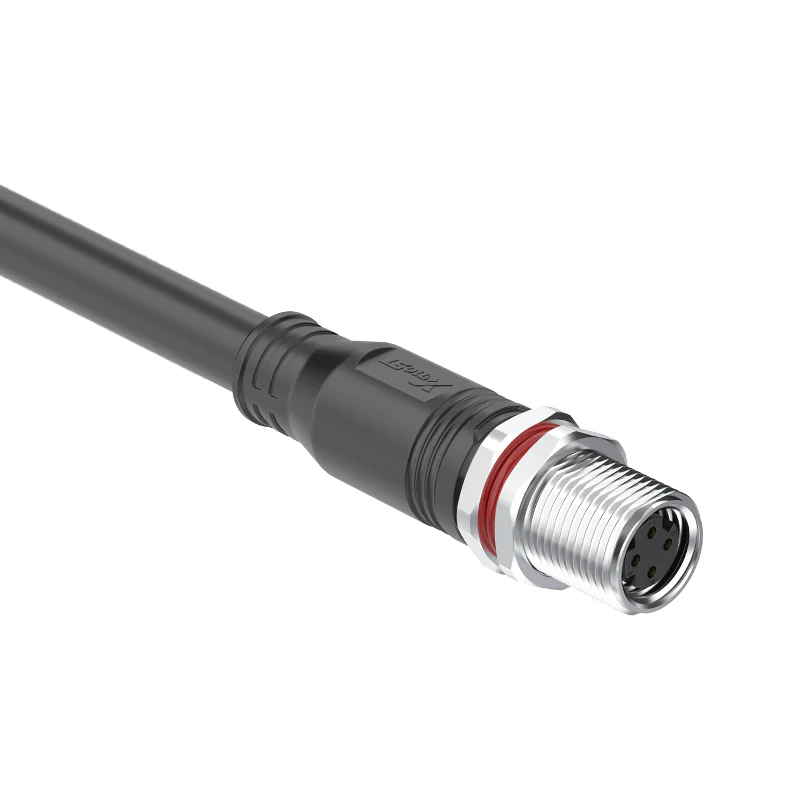

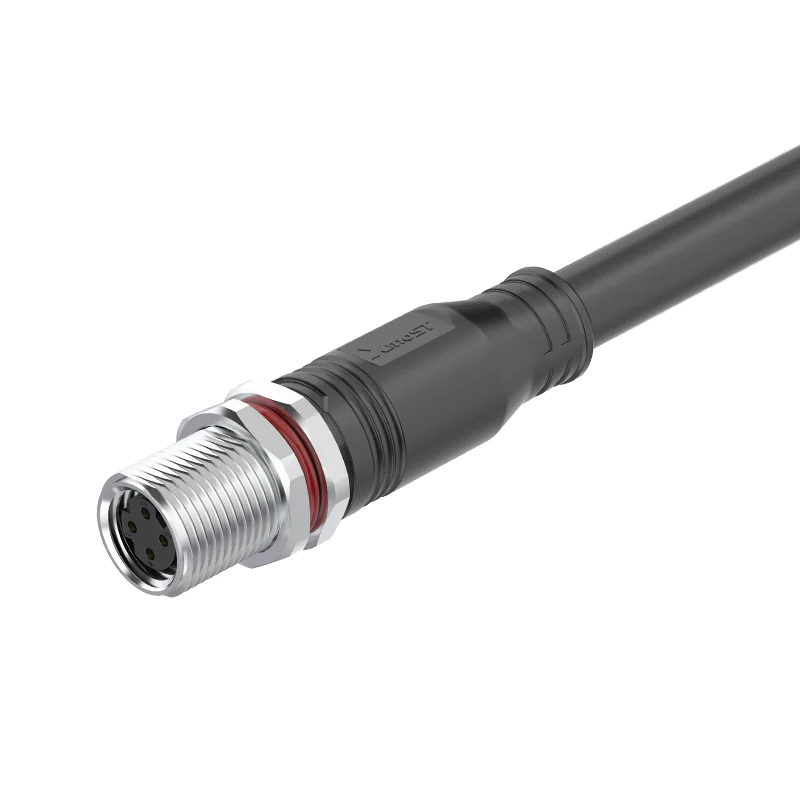

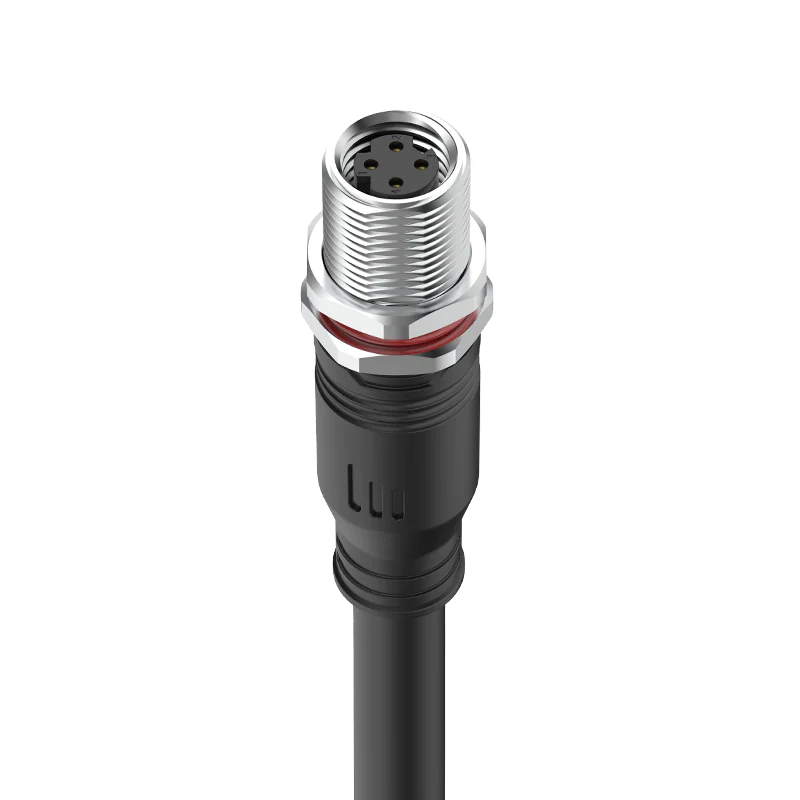

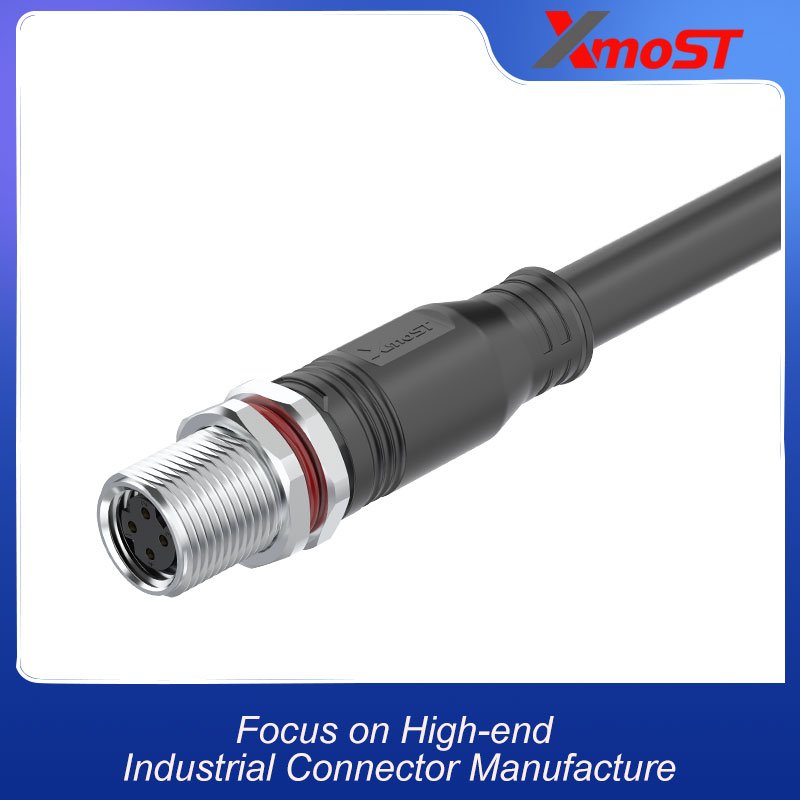

M8 Connector D-Code 4Pin Female Straight Cable – Industrial Ethernet, Data Transmission, IP67
- Category: M8
- Type: Molded Cable Connector
- Connector Type: Female Pin
- Application: Automation Equipment
- Pin Number: 4Pin
- Coded: D-Code
- Rated Voltage: 60V / 30V
- Rated Current: 3A / 1.5A
- Contact Material: Phosphor Bronze Gold Plated / Brass Gold Plated
- Insert Material: Phosphor Bronze Au/Brass Au
- Temperature Range: -25℃~+80℃ Dynamic; -40℃~+80℃ Static
- Waterproof Degree: IP67
- Shielding Performance: Non-Shielded
- Plug: Assembly, overmolded cable type (length customizable)
- Socket: Prefabricated Cable, Male and Female Connectors
- Compliance Standard: IEC 61076-2-104
- Shell Material: TPU/PVC
- Contact Impedance: ≤5mΩ
