Male Assembly Plug – Quick-Lock IP67 On-Site Wiring

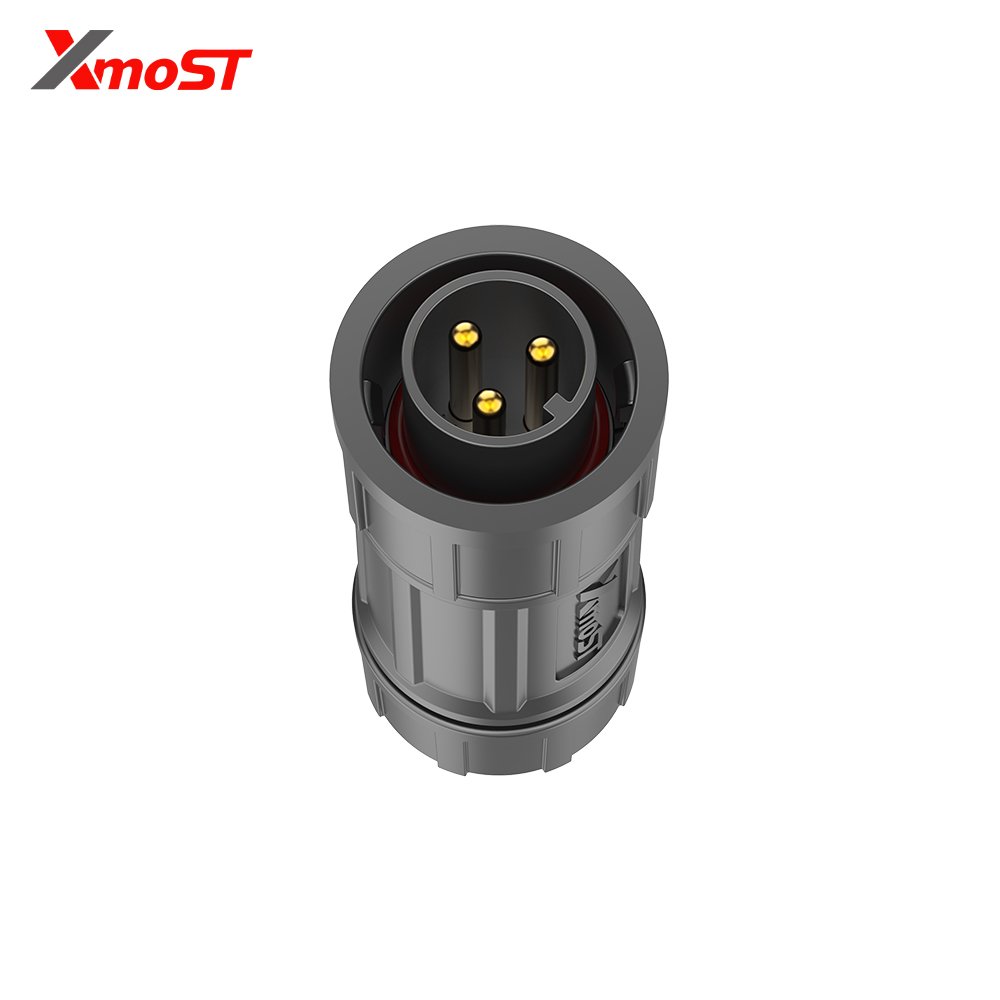

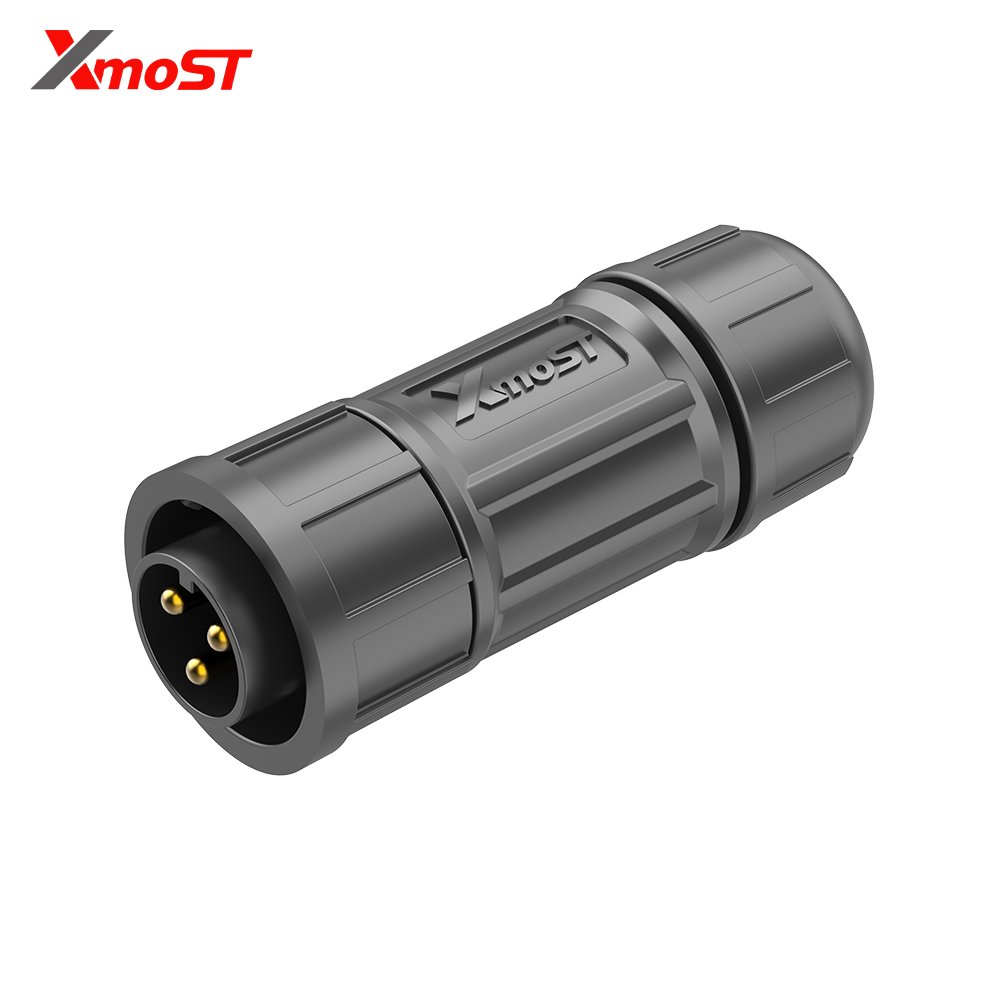

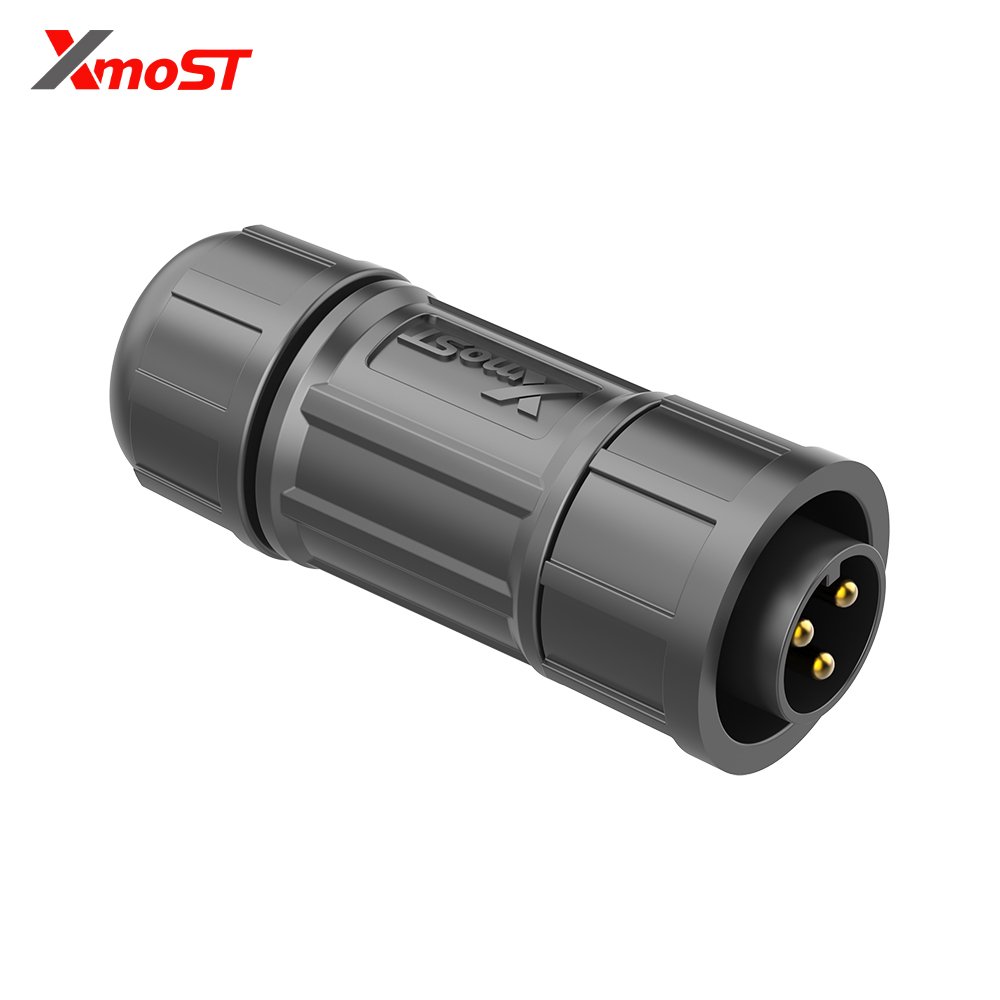

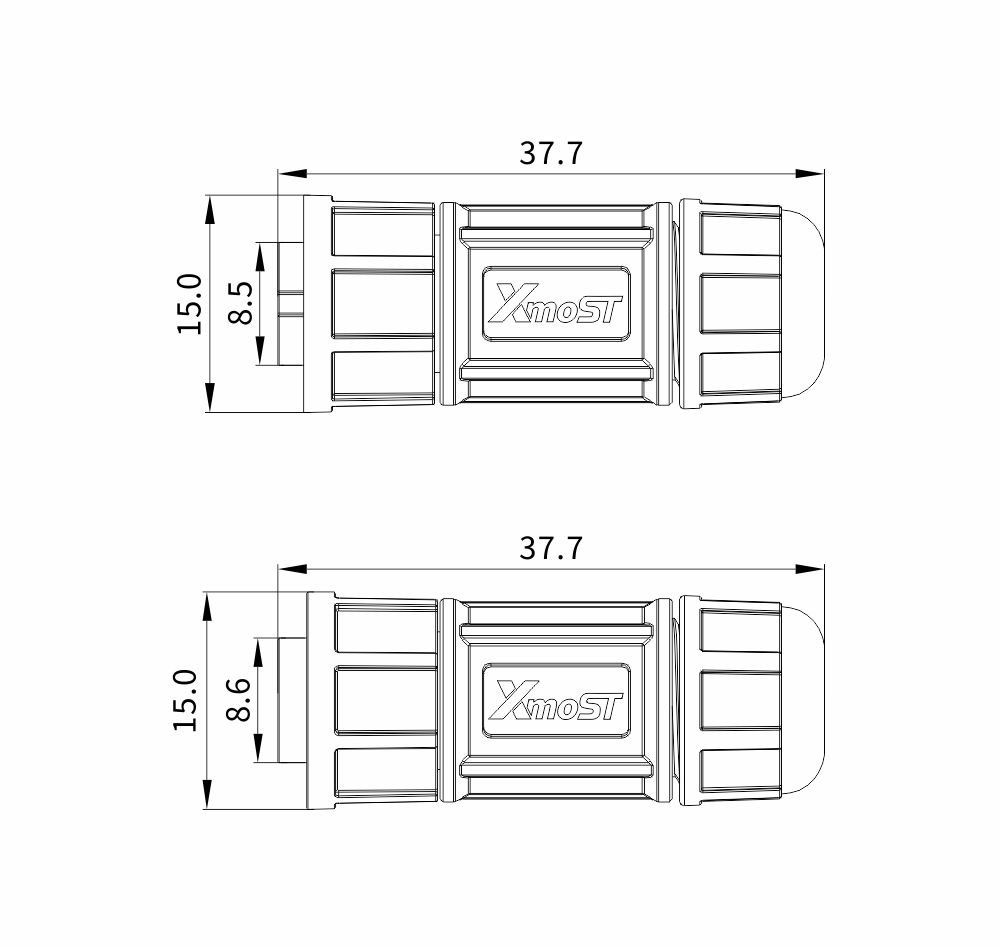

M12 3-Pin Male Assembly Straight Plug – Quick-Lock, For On-Site Wiring & Field Assembly

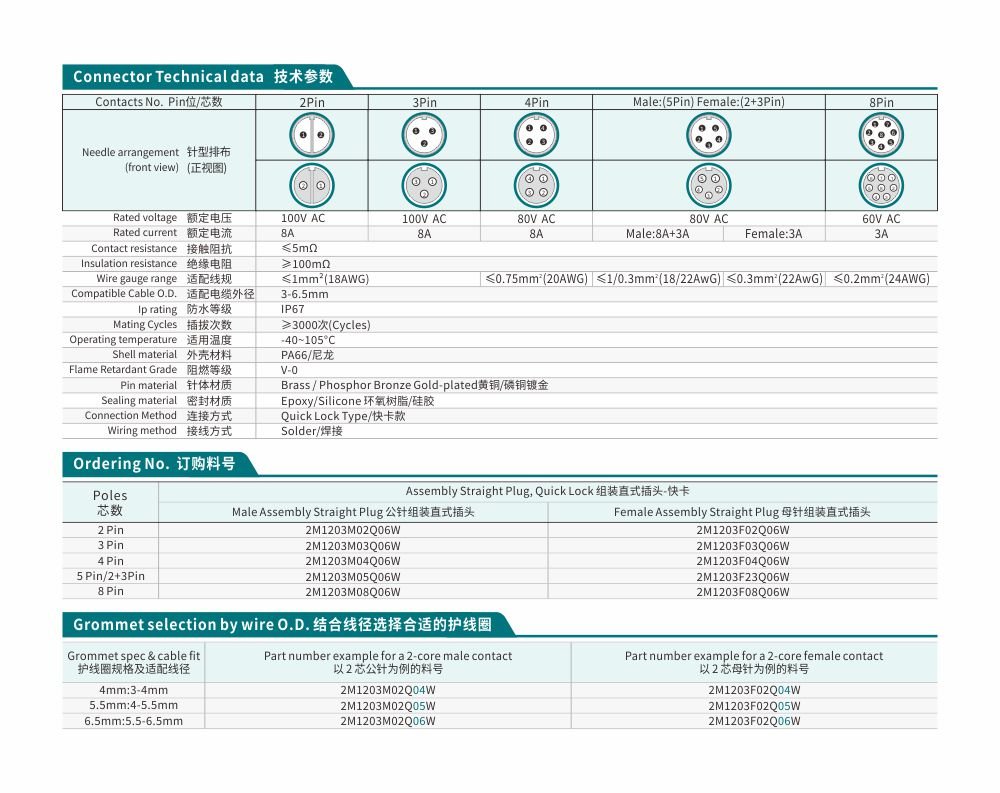

Contacts : 3-Pin
Needle Arrangement: Male
Rated Voltage: 100V AC
Rated Current: 8A
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
Wire Gauge Range: ≤0.75mm² (20 AWG)
Compatible Cable O.D.: 3 – 6.5mm
IP Rating: IP67
Mating Cycles: ≥3,000 Cycles
Operating Temperature: -40°C ~ +105°C
Shell Material: PA66/Nylon
Flame Retardant Grade: UL94 V-0
Contact Material: Brass/Phosphor Bronze Gold-plated
Sealing Material: Epoxy/Silicone
Connection Method: Quick-Lock
Wiring Method: Solder

On-Site Assembly – No Pre-Molding Required, Maximum Flexibility

Unlike pre-molded cables that lock you into fixed lengths, this M12 male assembly plug is designed for on-site wiring. Simply solder the contacts to your cable, screw the housing together, and plug in. This means you can cut cables to exact length on-site – no more coil waste, no more waiting for custom cable assemblies. Perfect for retrofits, repairs, and installations where cable runs vary.

Quick-Lock Coupling – Push to Connect, Pull to Release

The quick-lock system enables tool-free mating – simply push to connect with an audible click confirming secure engagement, pull to release. No torque specs, no wrenches, no over-tightening. Field technicians can connect and disconnect in seconds, saving valuable time during installation and maintenance. Rated for 3,000+ mating cycles.

Ideal for Control Cabinets & Junction Boxes – Custom Cable Lengths On-Site

When installing sensors, actuators, or fieldbus devices in control cabinets, cable lengths are never perfect. With this assembly plug, you cut the cable to the exact length needed, solder the connector, and you’re done. No excess cable to bundle, no custom-order lead times. The compact straight design fits easily through cable glands and inside crowded junction boxes.

IP67 Waterproof – Built for Factory Floors & Outdoor Installations

Rated IP67 waterproof and dust-tight, this connector withstands moisture, washdowns, oils, and dust. The rugged PA66 nylon housing resists corrosion and mechanical stress. Operating temperature range from -40°C to +105°C – suitable for cold storage, hot production lines, outdoor sensors, and everything in between.

Gold-Plated Contacts – Reliable Signal, Low Contact Resistance

Brass/phosphor bronze contacts with gold plating ensure contact resistance ≤5mΩ and insulation resistance ≥100MΩ. Supports up to 0.75mm² (20 AWG) wire with cable O.D. 3-6.5mm. Solder termination provides a permanent, low-loss connection that won’t loosen over time. Built to last with 3,000+ mating cycles.
