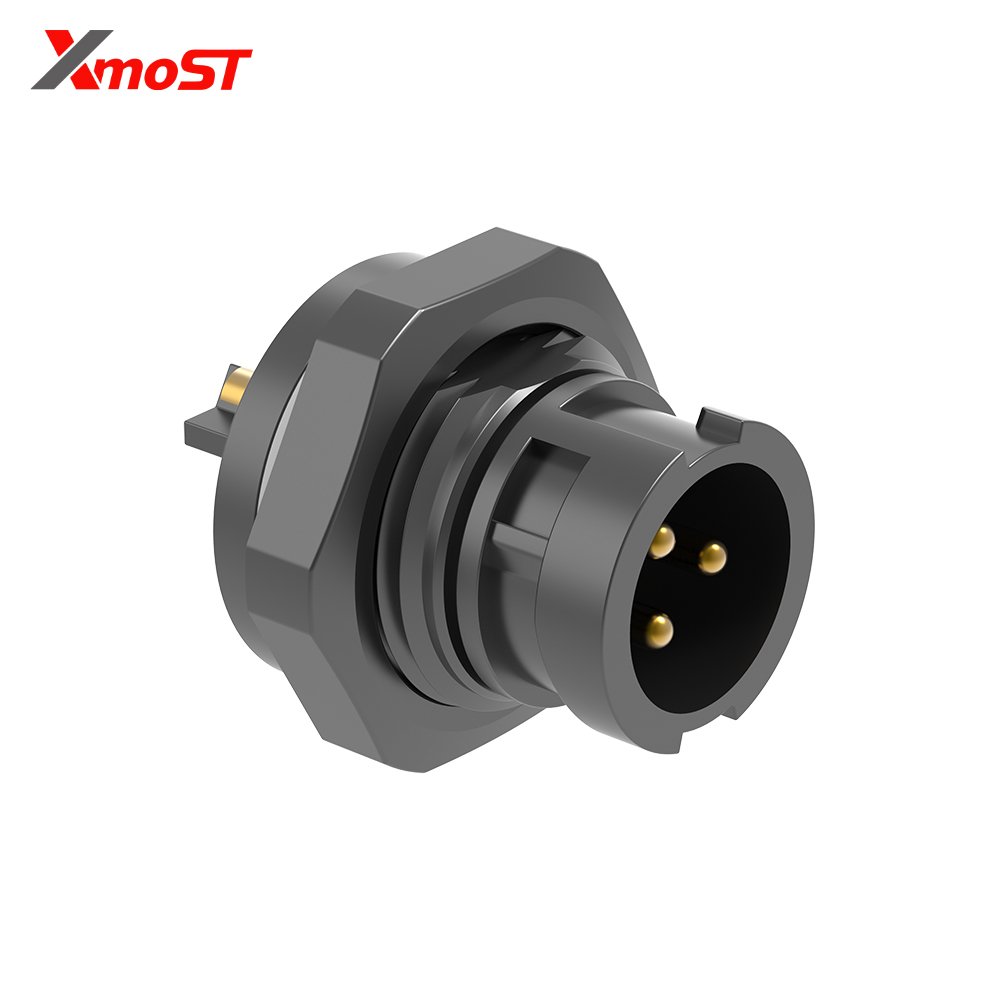

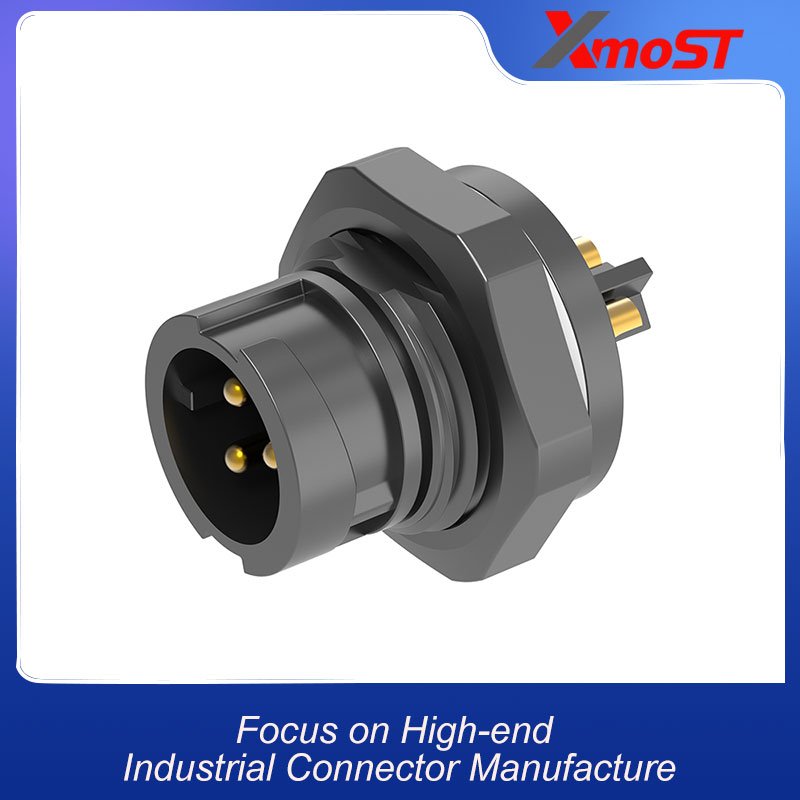

IP67 Waterproof M12 Male Connector for Industrial Applications – This M12 3-pin male circular connector features a rugged PA66 nylon housing with IP67 waterproof and dustproof rating, ensuring reliable performance in sensors, actuators, and factory automation equipment exposed to water, dust, and moisture. Operating temperature range from -40°C to +105°C.

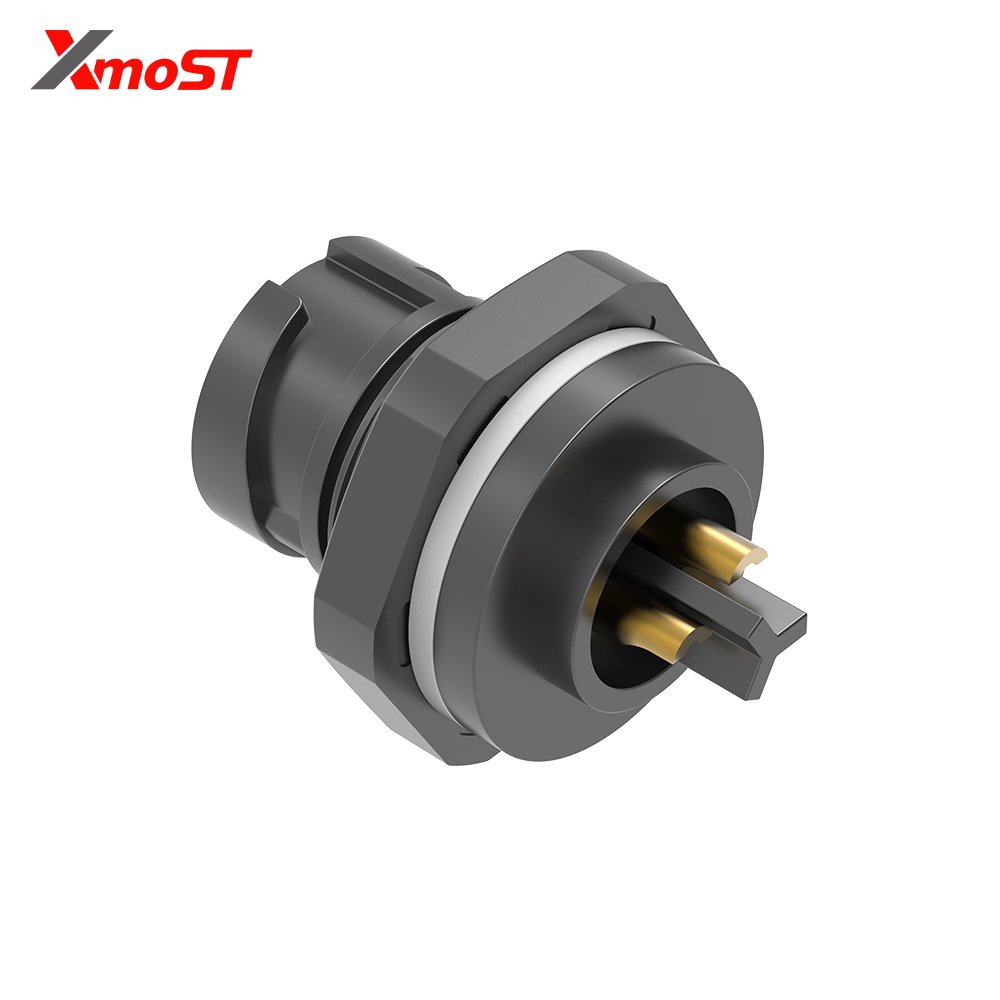

Front Lock Socket Design for Easy Panel Installation – The front lock mounting allows installation from the front side of the panel – simply insert into the mounting hole and tighten the front nut. No need to access the back of the equipment, saving installation time and simplifying maintenance. Ideal for applications where rear panel access is limited.
Quick-Lock Coupling for Fast, Tool-Free Mating – The quick-lock system enables secure, vibration-proof connections with simple push-and-click mating. Polarization prevents mismating, guaranteeing correct installation every time. Rated for 3,000+ mating cycles for long-term reliability.
Gold-Plated Contacts for Low-Resistance Signal Transmission – Features brass/phosphor bronze contacts with gold plating, ensuring excellent conductivity with contact resistance ≤5mΩ and insulation resistance ≥100MΩ. Supports up to 0.75mm² (20 AWG) wire. Solder termination for secure, permanent connections.
Lightweight & Durable PA66 Plastic Construction – Made from high-performance PA66 nylon with UL94 V-0 flame retardant rating, this M12 plastic circular connector offers excellent corrosion resistance and significant weight reduction compared to metal connectors. PA66 nut material ensures consistent performance in demanding environments.
