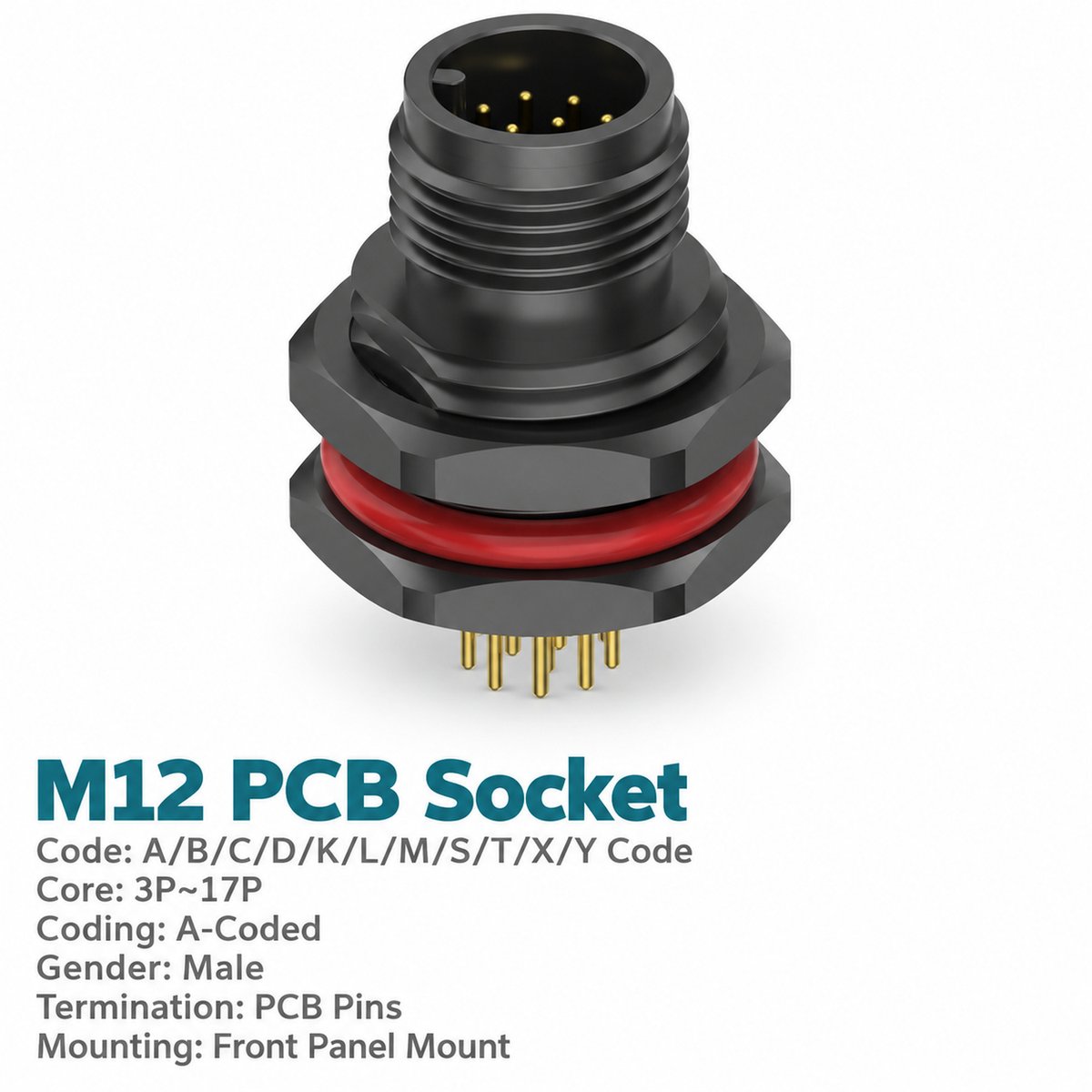

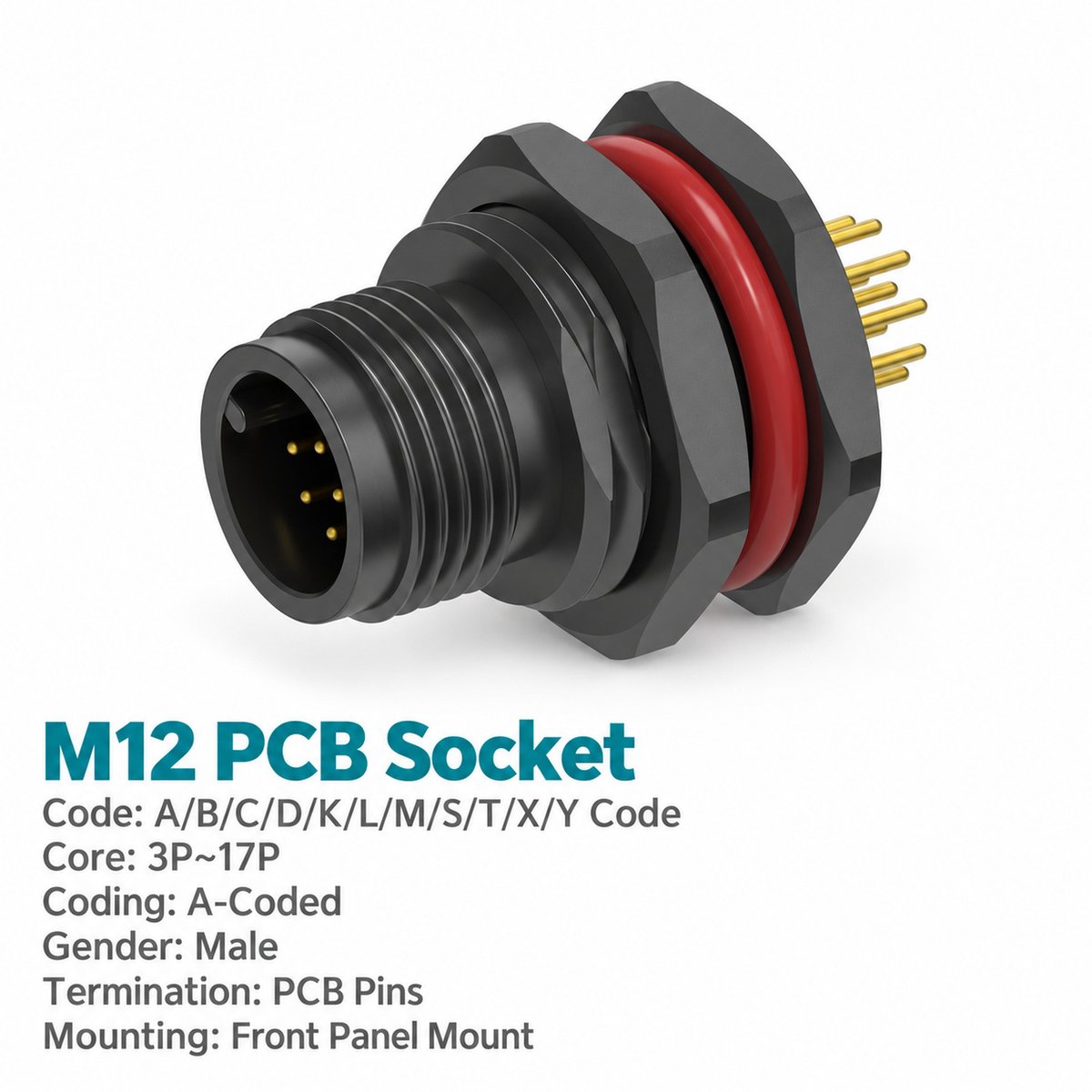

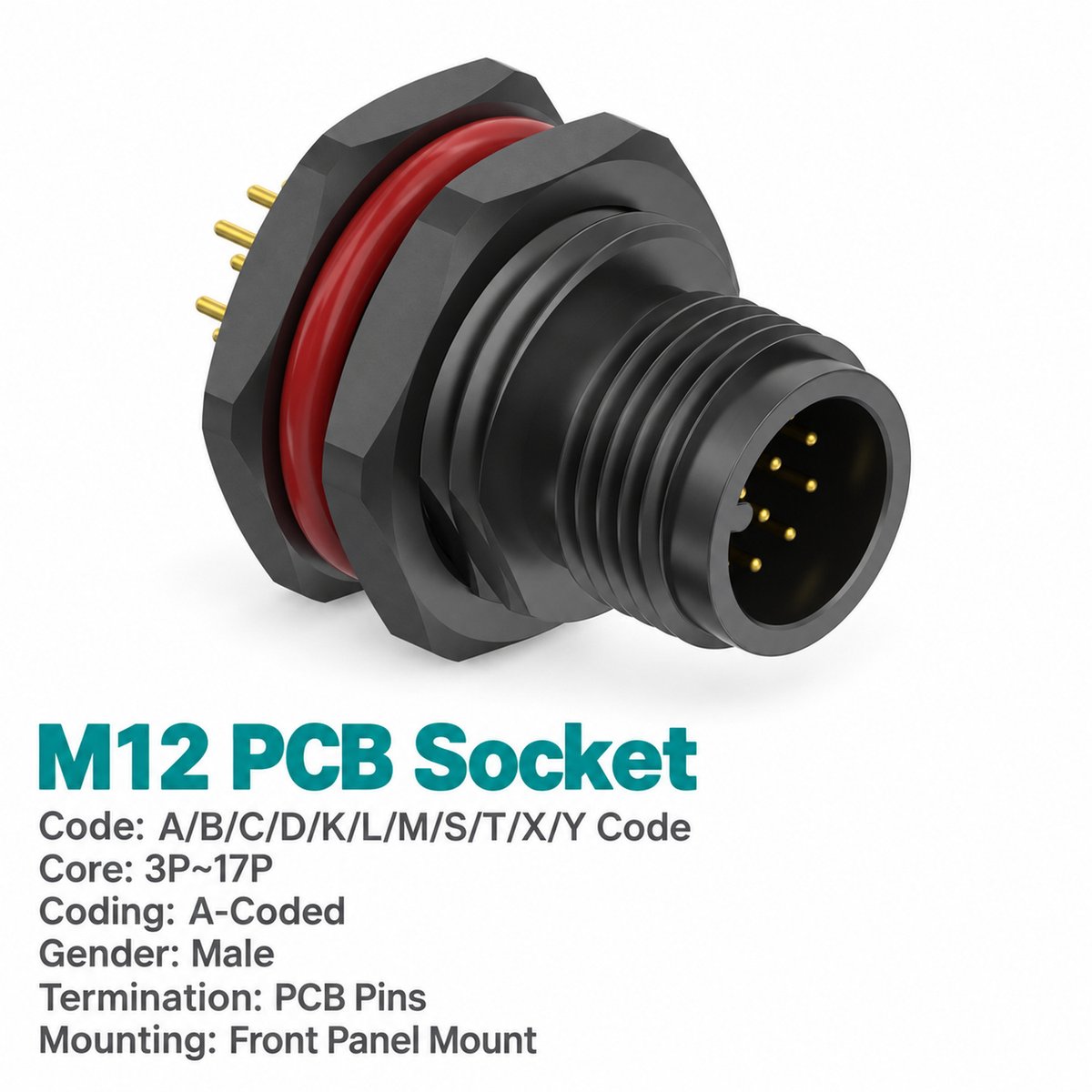

M12 A-Coded Male Plastic PCB Connector, 3–17 Pin

Xmost M12 A-coded male plastic PCB connector provides a panel interface between an external female cable connector and the equipment’s circuit board. Its rear contacts are designed for PCB insertion and dip soldering.

The plastic panel connector is secured through a PG9 mounting opening and provides an M12 × 1.0 threaded mating connection. Select the contact count according to the circuit’s conductor requirements and the matching A-coded female cable connector.

Six configurations are available. Current and voltage ratings vary by pin count, so check the selected version’s electrical limits before ordering.

Key Features

PCB contact termination: Connects the panel interface to the circuit board through soldered PCB contacts.
Six pin-count options: Choose 3, 4, 5, 8, 12 or 17 contacts.
A-coded male interface: For compatible sensor, actuator and equipment cable connections.
Plastic construction: The catalogue lists PA66+GF for the screw/nut material.
PG9 panel mounting: Secures the connector to the equipment enclosure.
M12 threaded mating: M12 × 1.0 connection to the external cable connector.
Unshielded design: For installations that do not require connector shielding.
Separate electrical ratings: Configuration-specific data supports accurate selection.

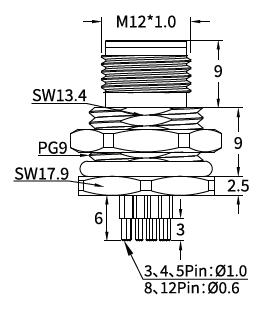

Product Dimensions

[Insert the male plastic panel connector outline drawing and panel cut-out drawing here.]

Dimensions in mm

Item to Check	Drawing Value
Mating thread	M12 × 1.0
Panel mounting thread	PG9
Upper wrench size	SW13.4
Mounting nut wrench size	SW17.9
Upper axial section shown	9
Middle axial section shown	9
Lower axial section shown	2.5
Rear contact section dimension shown	6
Contact tip section dimension shown	3
Contact diameter, 3 / 4 / 5-pin versions	Ø1.0
Contact diameter, 8 / 12-pin versions	Ø0.6

The outline drawing does not specify a contact diameter for the 17-pin version. Confirm that detail for the ordered part.

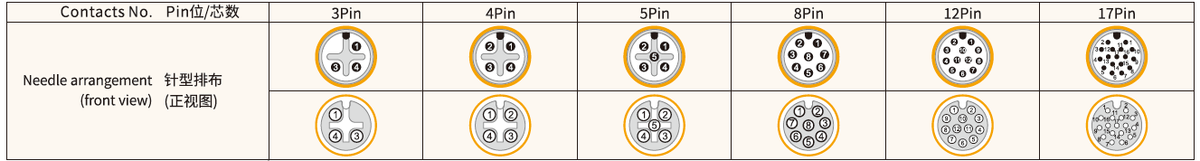

Needle Arrangement (Front View)

[Insert only the male needle arrangement row from page 1, showing 3, 4, 5, 8, 12 and 17 pins.]

The diagrams show the mating-face view. Match the contact count and numbered arrangement to the external female connector and equipment schematic.

The 3-pin version uses contact positions 1, 3 and 4.

Product Specifications

Parameter	Specification
Product type	M12 A-coded male plastic PCB panel connector
Termination	PCB dip soldering
Standard listed	IEC 61076-2-101
Shielding	Unshielded
Mating thread	M12 × 1.0
Panel mounting thread	PG9
Insulation resistance	≥100 MΩ
Contact resistance	≤5 mΩ
Recommended coupling torque	0.4 N·m
Maximum coupling torque	0.8 N·m
Temperature range, flexible use	−25°C to +80°C
Temperature range, static use	−40°C to +80°C
Protection ratings listed	IP67 / IP68
Pollution degree	3
Insulator materials listed	PA66+GF / TPU+GF

Electrical Ratings by Contact Count

Contacts	Rated Current	Rated Voltage
3 pins	4 A	250 V
4 pins	4 A	250 V
5 pins	4 A	60 V
8 pins	2 A	30 V
12 pins	1.5 A	30 V
17 pins	1.5 A	30 V

Applications

This M12 A-coded male plastic PCB connector can be considered for:

Sensor interface modules: Connecting external sensor cables to internal electronics.
Actuator control equipment: Providing a detachable interface within the selected electrical ratings.
Automation enclosures: Combining panel mounting with circuit-board termination.
Multi-contact control devices: Selecting additional contacts for the required equipment circuits.

Confirm the electrical ratings, mounting clearance and mating connector before selection.
