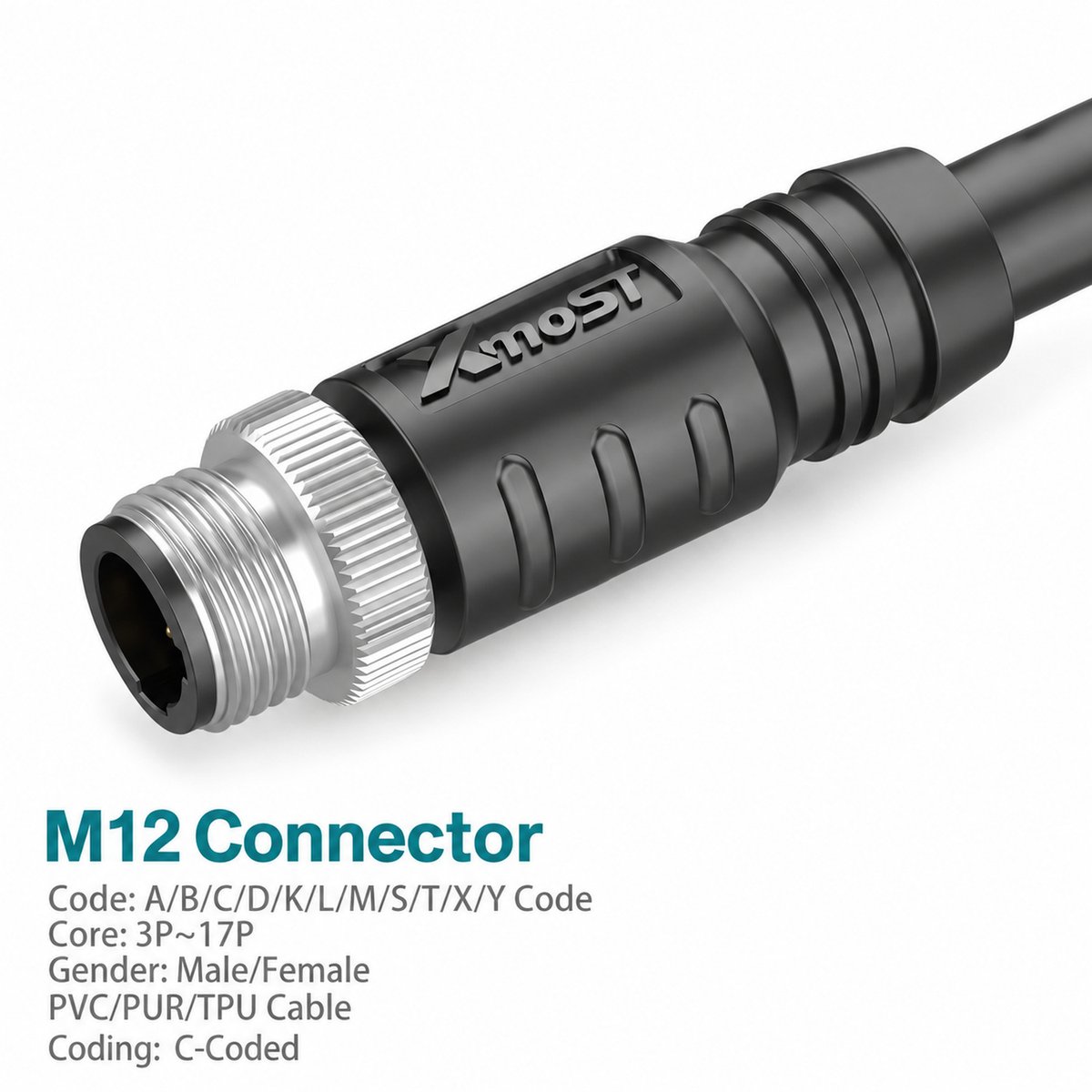

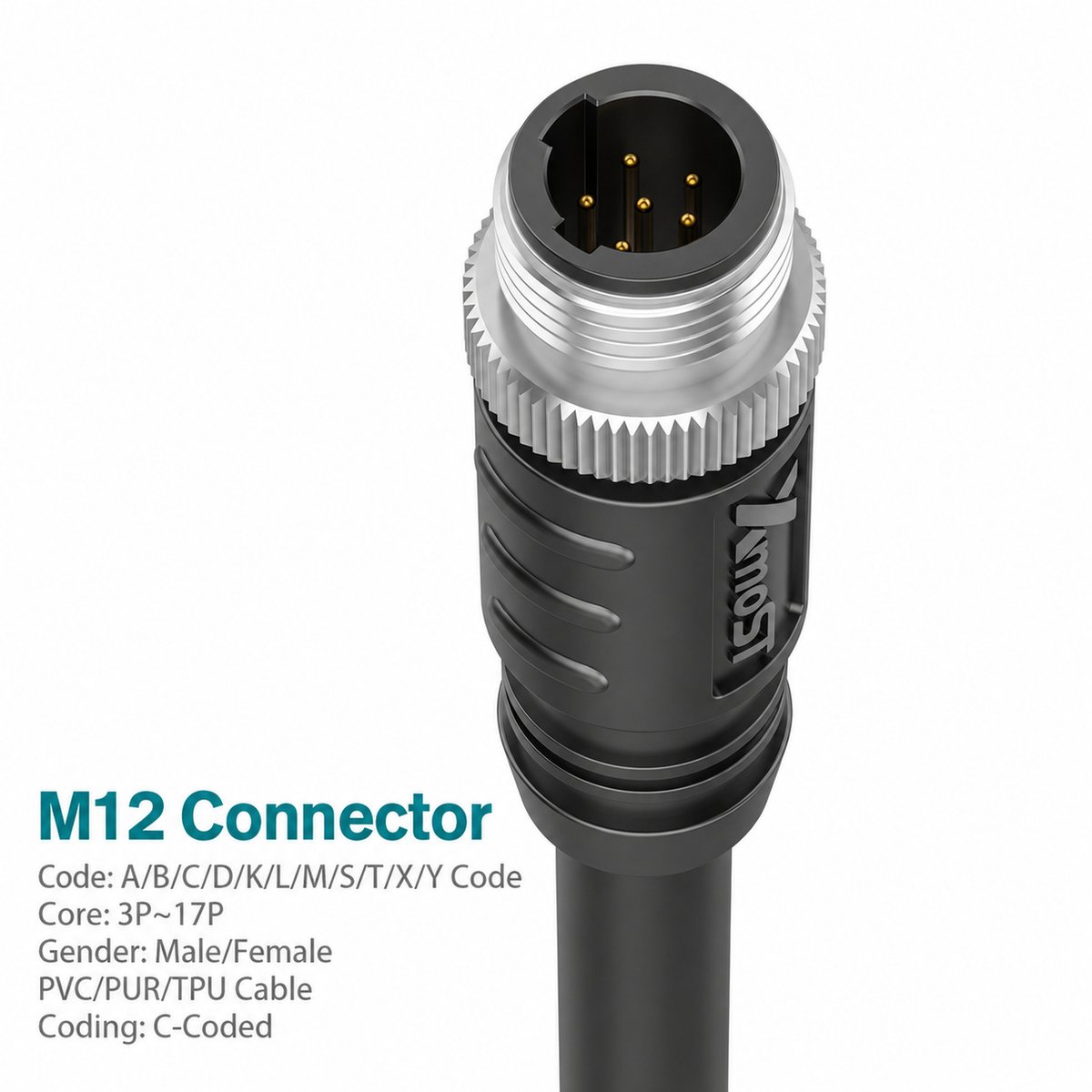

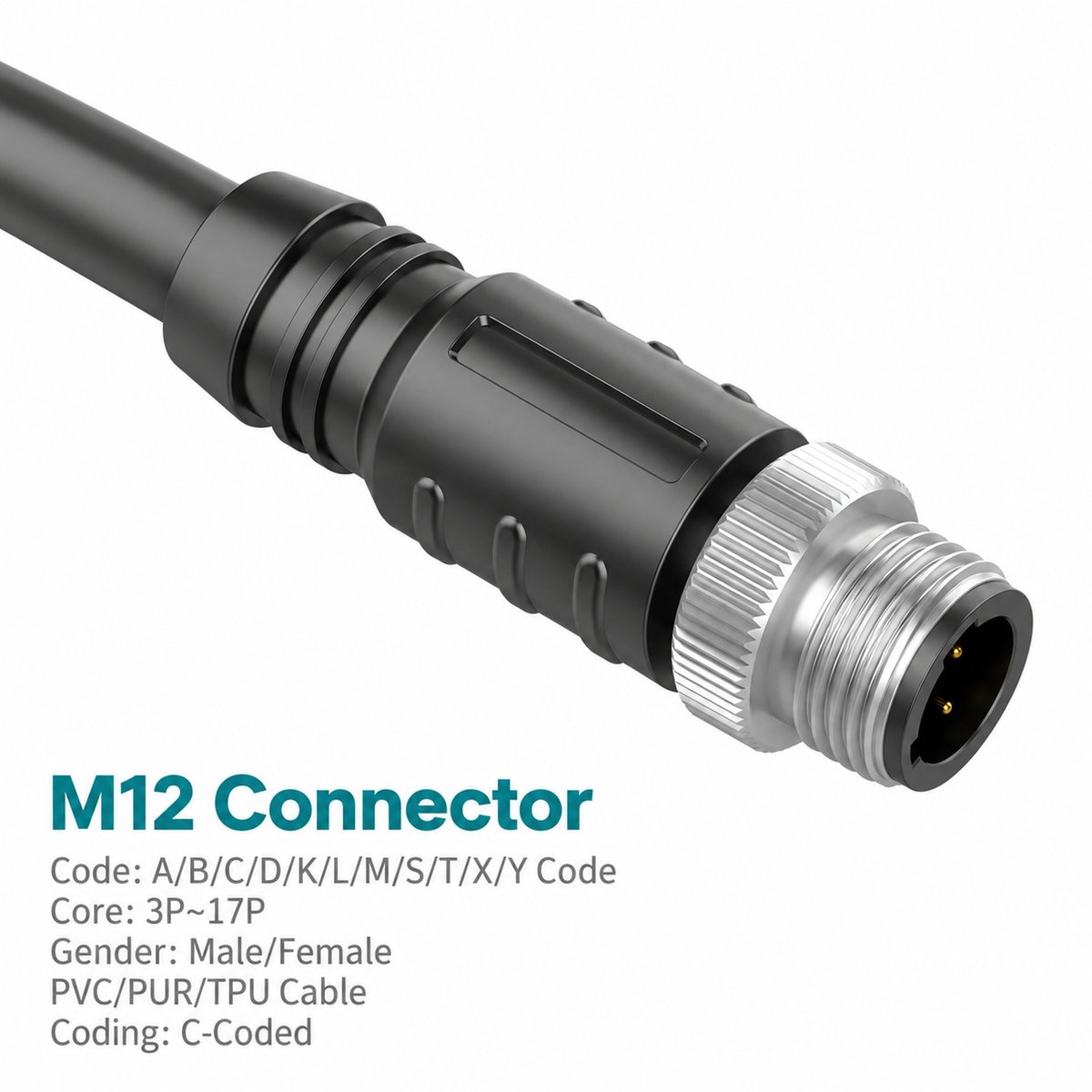

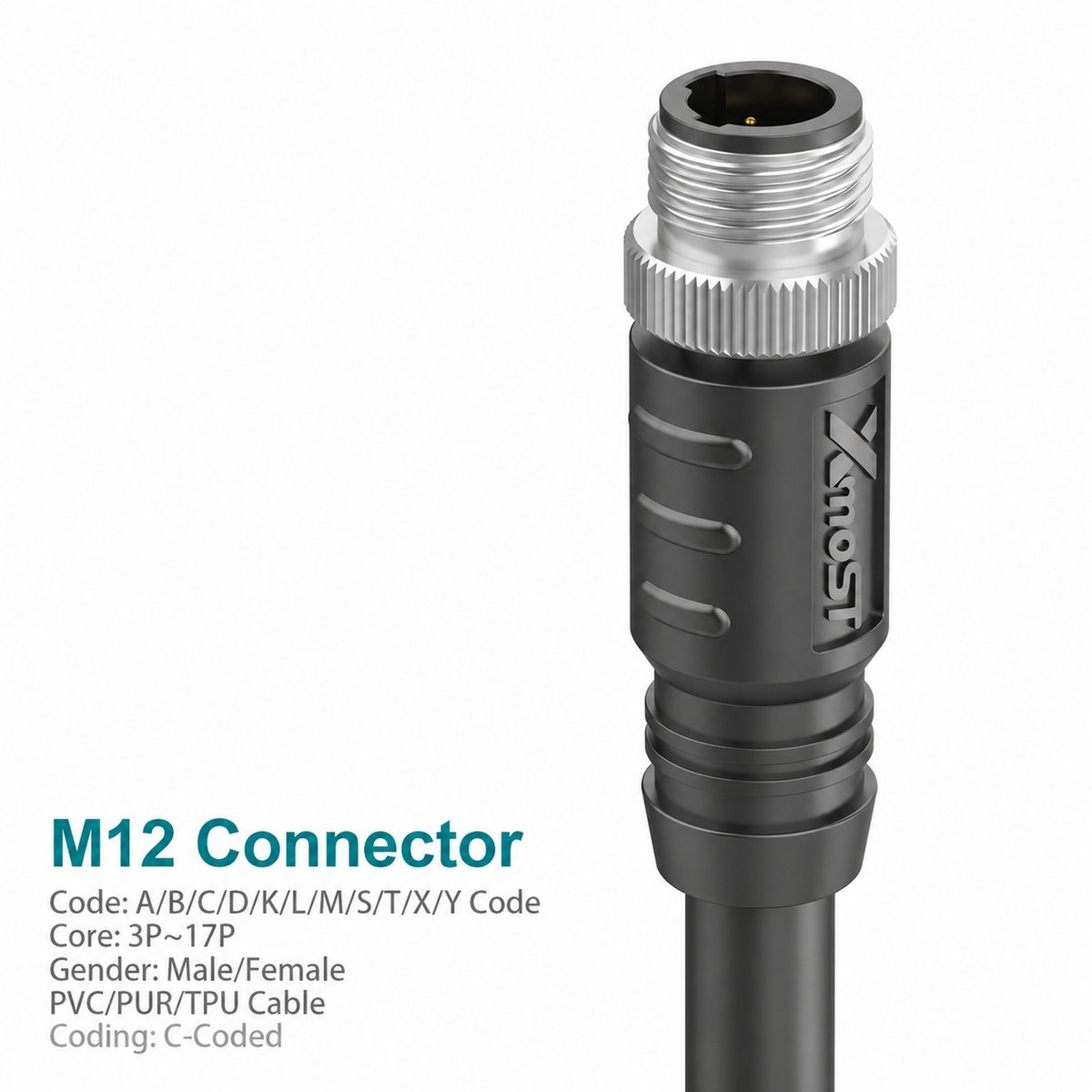

Xmost M12 C-coded male molded cable connector provides an AC power connection for compatible industrial equipment. Its single-ended construction combines a male connector with a preassembled cable, while the M12 × 1.0 screw-locking interface secures the mating connection.
Straight and right-angle versions accommodate different cable-routing requirements. The range includes 3-pin (2 + PE), 4-pin (3 + PE), 5-pin (4 + PE) and 6-pin (5 + PE) configurations. Electrical ratings vary by contact arrangement, as shown below.
Key Features
- C-coded male interface for compatible AC power connections.
- Single-ended molded cable assembly with an integrated cable exit.
- Unshielded construction.
- Straight and right-angle versions for different installation layouts.
- 3-, 4-, 5- and 6-pin options, including protective earth contacts.
- M12 × 1.0 screw locking, with a recommended tightening torque of 0.4 N·m.
- PVC and PUR cable options, with 1 m and 3 m lengths listed in the catalog.
Product Dimensions

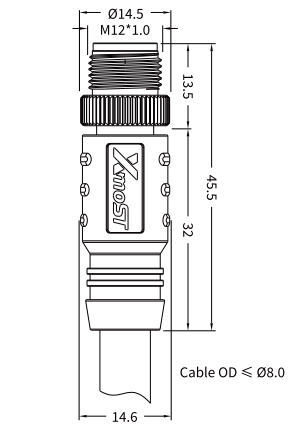

Dimensions (mm)
Product Specifications
Electrical Ratings by Contact Configuration
| Contact Configuration | Rated Current | Rated Voltage | Wire Size |
|---|---|---|---|
| 3-pin (2 + PE) | 4 A | 250 V | 0.34 mm² / AWG22 |
| 4-pin (3 + PE) | 4 A | 250 V | 0.34 mm² / AWG22 |
| 5-pin (4 + PE) | 2 A | 60 V | 0.14 mm² / AWG26 |
| 6-pin (5 + PE) | 2 A | 30 V | 0.14 mm² / AWG26 |
PE = Protective Earth.
General Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | C-coded |
| Contact Gender | Male |
| Assembly Type | Single-ended molded cable assembly |
| Connector Orientation | Straight / right-angle |
| Shielding | Unshielded |
| Standard Listed | IEC 61076-2-101 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
| Screw / Nut Material Options | Nickel-plated brass / nickel-plated zinc alloy |
| Contact Material Options | Gold-plated phosphor bronze / gold-plated brass |
| Sealing Material Options | FKM / silicone / epoxy |
| Outer Housing Material Options | TPU / PVC |
| Cable Jacket Options | PVC / PUR |
| Catalog Cable Lengths | 1 m / 3 m |
Applications
Suitable application areas include:
- Industrial machinery: AC power connections to equipment fitted with compatible C-coded interfaces.
- Automation equipment: Power wiring between compatible machine modules.
- Modular production systems: Detachable power connections for equipment sections.
- Installations with limited cable-routing space: Right-angle versions where cable direction must change close to the connection point.
Select the contact configuration according to the equipment’s voltage, current and protective earth requirements.
Selection and Ordering
When ordering, specify:
- Contact configuration: 3-, 4-, 5- or 6-pin.
- Connector orientation: straight or right-angle.
- Cable jacket: PVC or PUR.
- Cable length: 1 m or 3 m.
- Corresponding catalog part number.
The mating connector must match the C-coded interface and selected contact arrangement. Check the catalog pin assignment and wire-color table before wiring.
