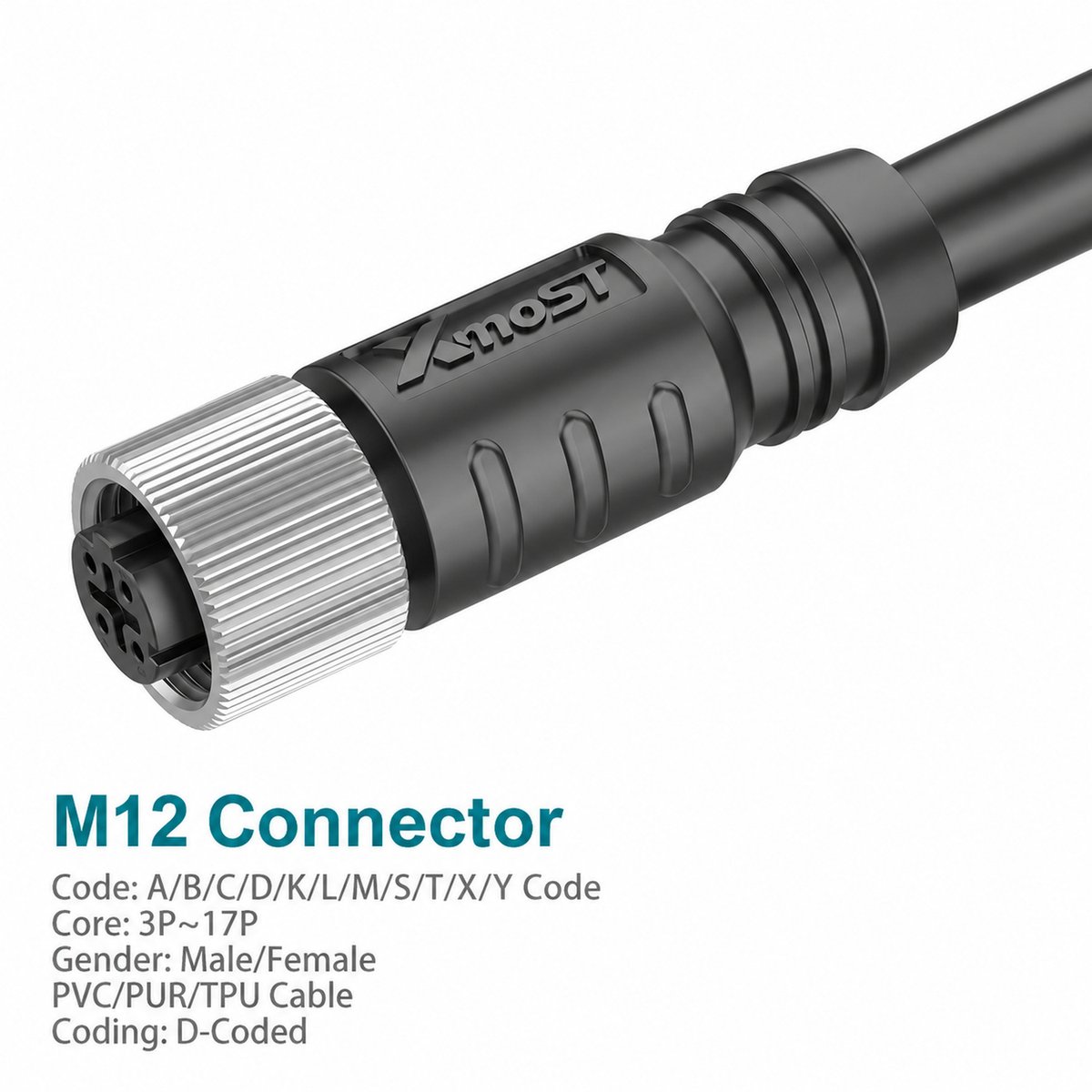

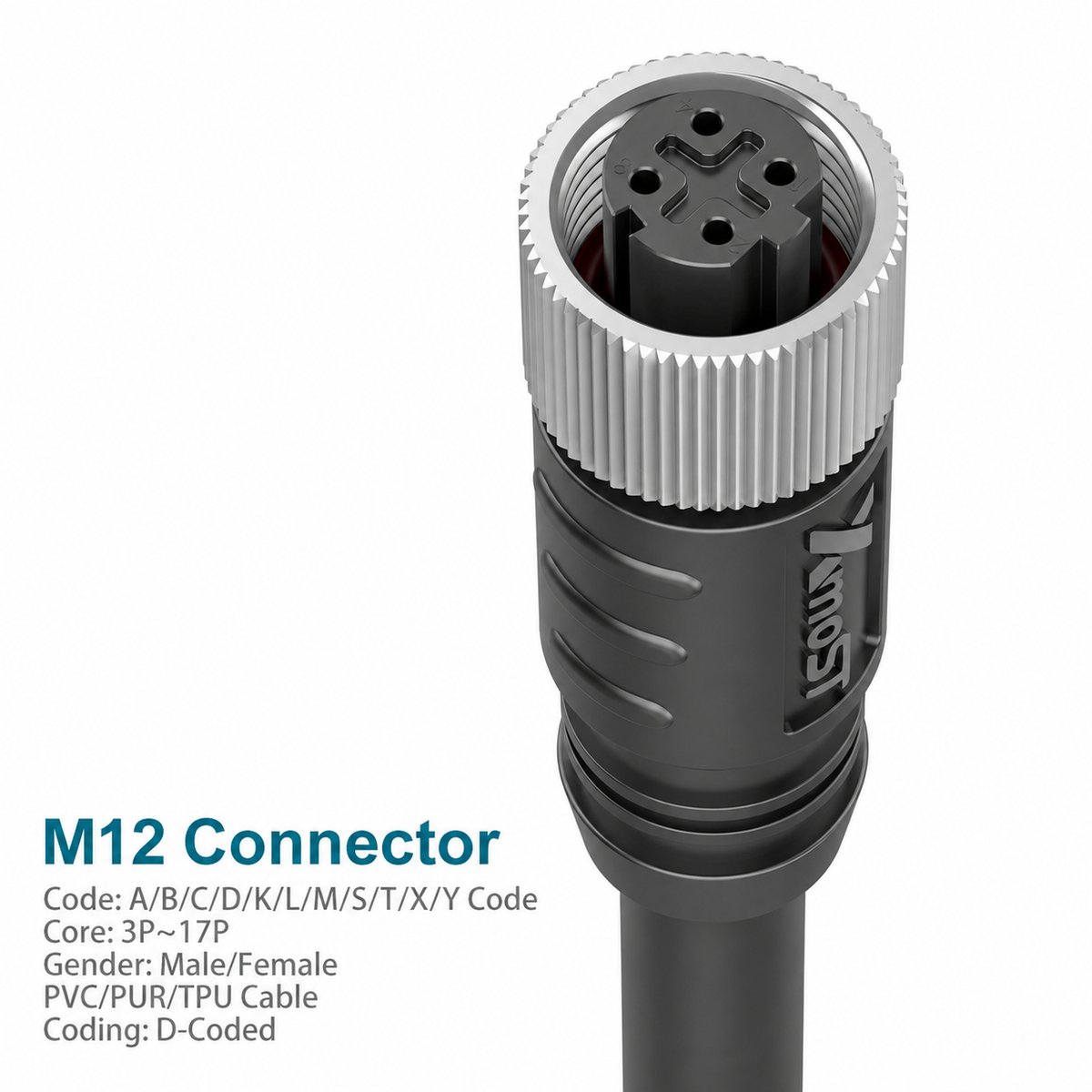

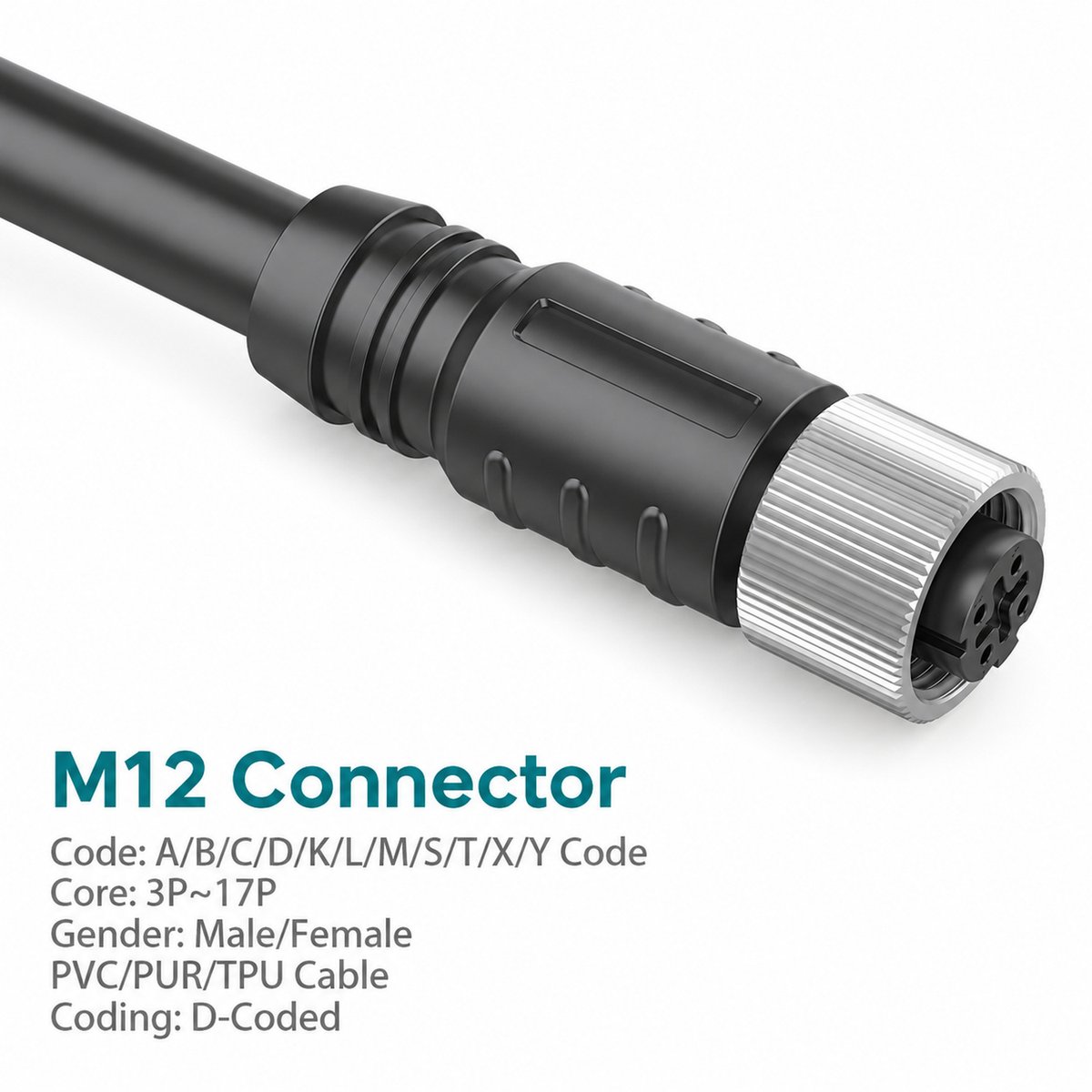

Xmost M12 D-coded female straight CAT5e connector provides a shielded cable connection for compatible PROFINET and industrial Ethernet equipment. The single-ended molded assembly combines a 4-pin female connector with a preassembled cable.
Its straight cable exit directs the cable along the mating axis, making it suitable for equipment layouts with clearance behind the connection. M12 × 1.0 screw locking secures the interface to a matching D-coded male connector. The catalog lists PVC and PUR cable options in 1 m and 3 m lengths.
Key Features
- 4-pin M12 D-coded female interface for compatible industrial Ethernet connections.
- Shielded CAT5e cable assembly for PROFINET and Ethernet equipment.
- Straight connector orientation for axial cable routing.
- Single-ended molded construction.
- M12 × 1.0 screw-locking interface.
- PVC or PUR cable options, with 1 m and 3 m catalog lengths.

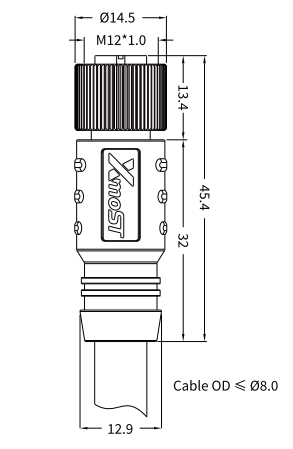

Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Connector axial length shown | 45.4 |
| Coupling section axial span | 13.4 |
| Molded body axial span | 32 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 12.9 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |
Dimensions correspond to the marked spans in the straight female connector drawing. Cable length is specified separately.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | D-coded |
| Contact Gender | Female |
| Contact Count | 4-pin |
| Connector Orientation | Straight |
| Assembly Type | Single-ended molded cable assembly |
| Cable Category | CAT5e |
| Application Listed | PROFINET / Industrial Ethernet |
| Shielding | Shielded |
| Standard Listed | IEC 61076-2-101 |
| Rated Current | 4 A |
| Rated Voltage | 250 V |
| Wire Size | 0.34 mm² / AWG22 |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Locking Method | M12 × 1.0 screw locking |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Contact Termination | Soldering |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
| Screw / Nut Material Options | Nickel-plated brass / nickel-plated zinc alloy |
| Contact Material Options | Gold-plated phosphor bronze / gold-plated brass |
| Sealing Material Options | FKM / silicone / epoxy |
| Outer Housing Material Options | TPU / PVC |
| Cable Jacket Options | PVC / PUR |
| Catalog Cable Lengths | 1 m / 3 m |
Applications
Suggested applications for this M12 D-coded female shielded Ethernet connector include:
- PROFINET field equipment: Connections to devices with matching D-coded male interfaces.
- Industrial Ethernet systems: Network wiring using compatible 4-pin M12 connections.
- Automation equipment: Communication links between compatible controllers, distributed I/O modules and field devices.
- Machine network connections: Installations that allow the cable to exit directly behind the connector.
Selection and Ordering
Specify the cable jacket and cable length, then select the corresponding straight female part number from the catalog.
Match the D-coding and 4-pin arrangement to the equipment interface. Follow the female connector’s front-view pin diagram and corresponding wire-color assignment, and maintain the specified shield connection during installation.
