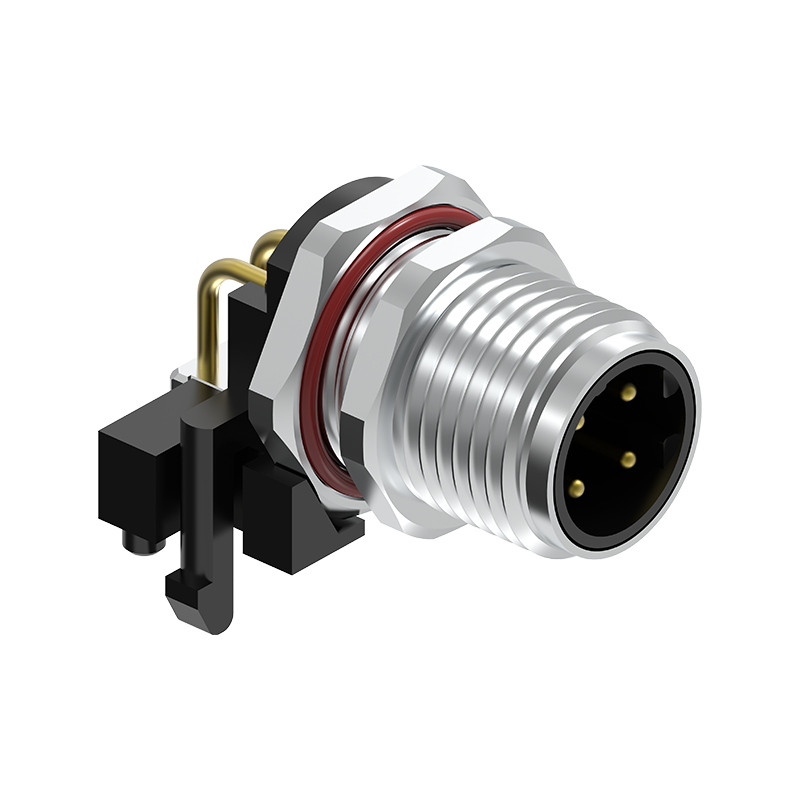

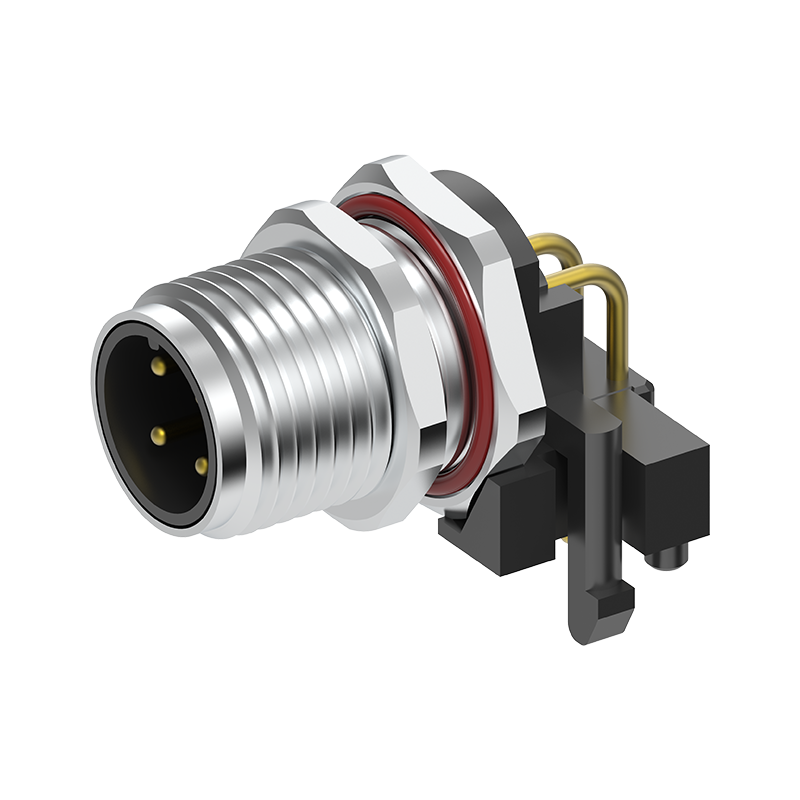

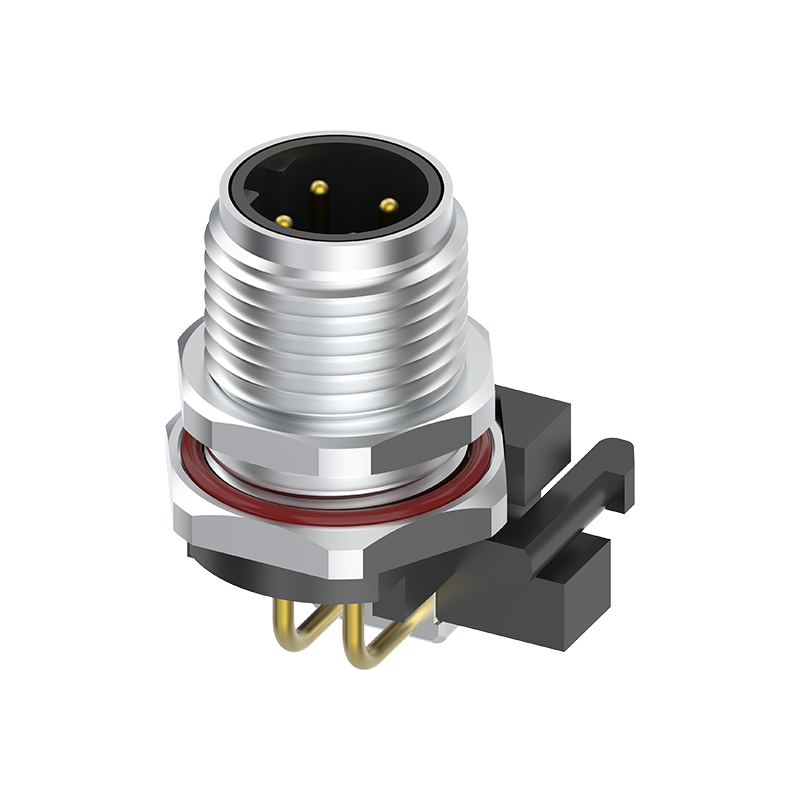

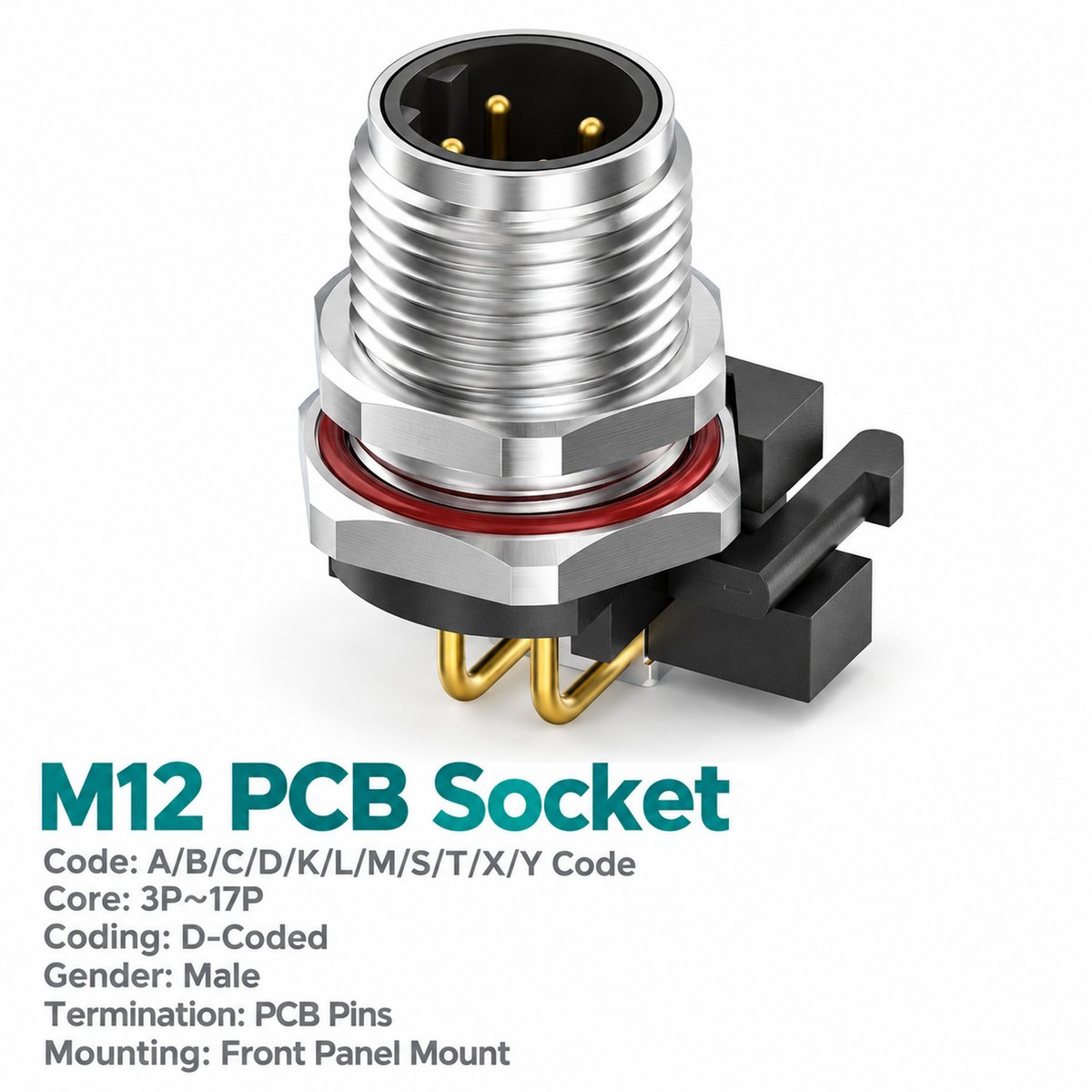

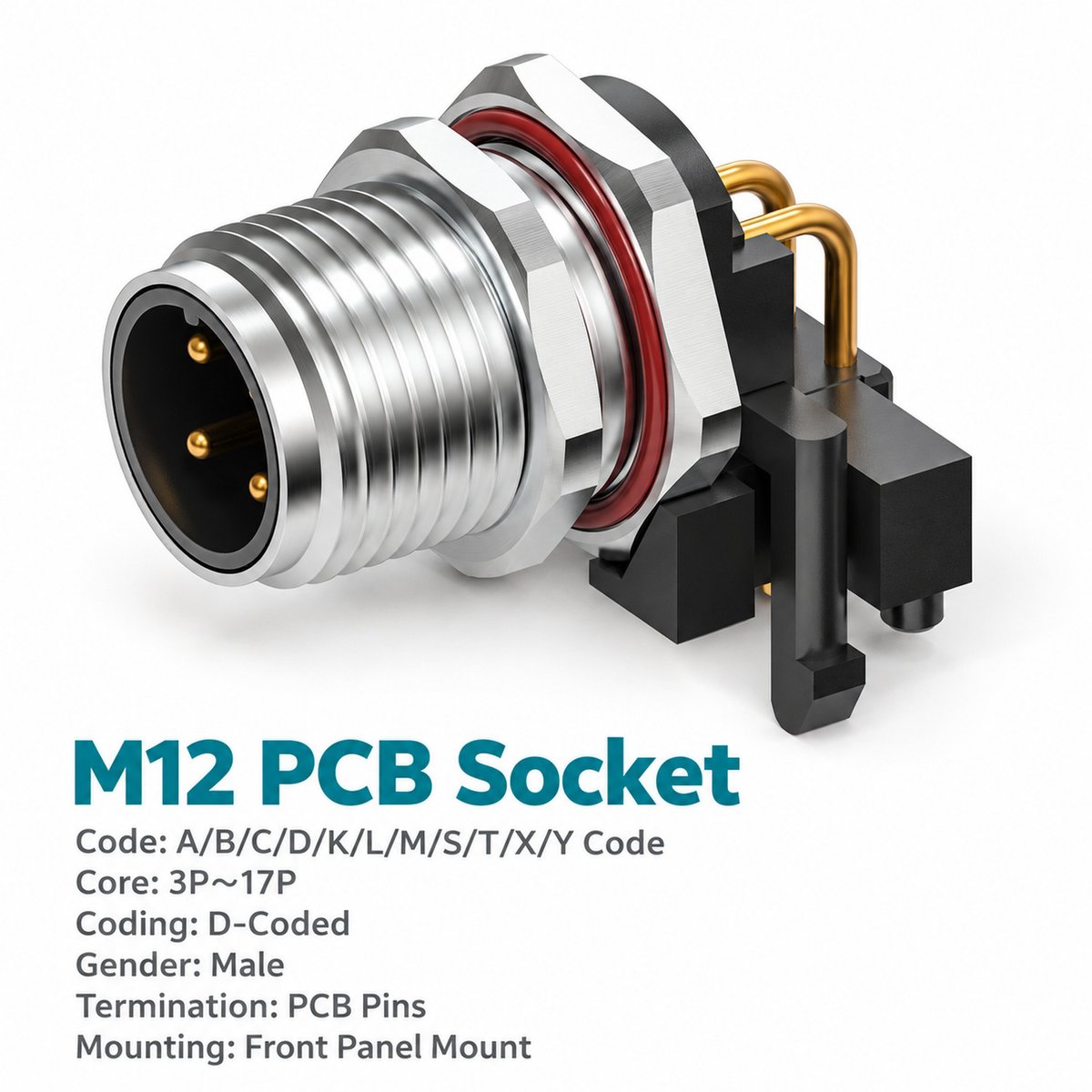

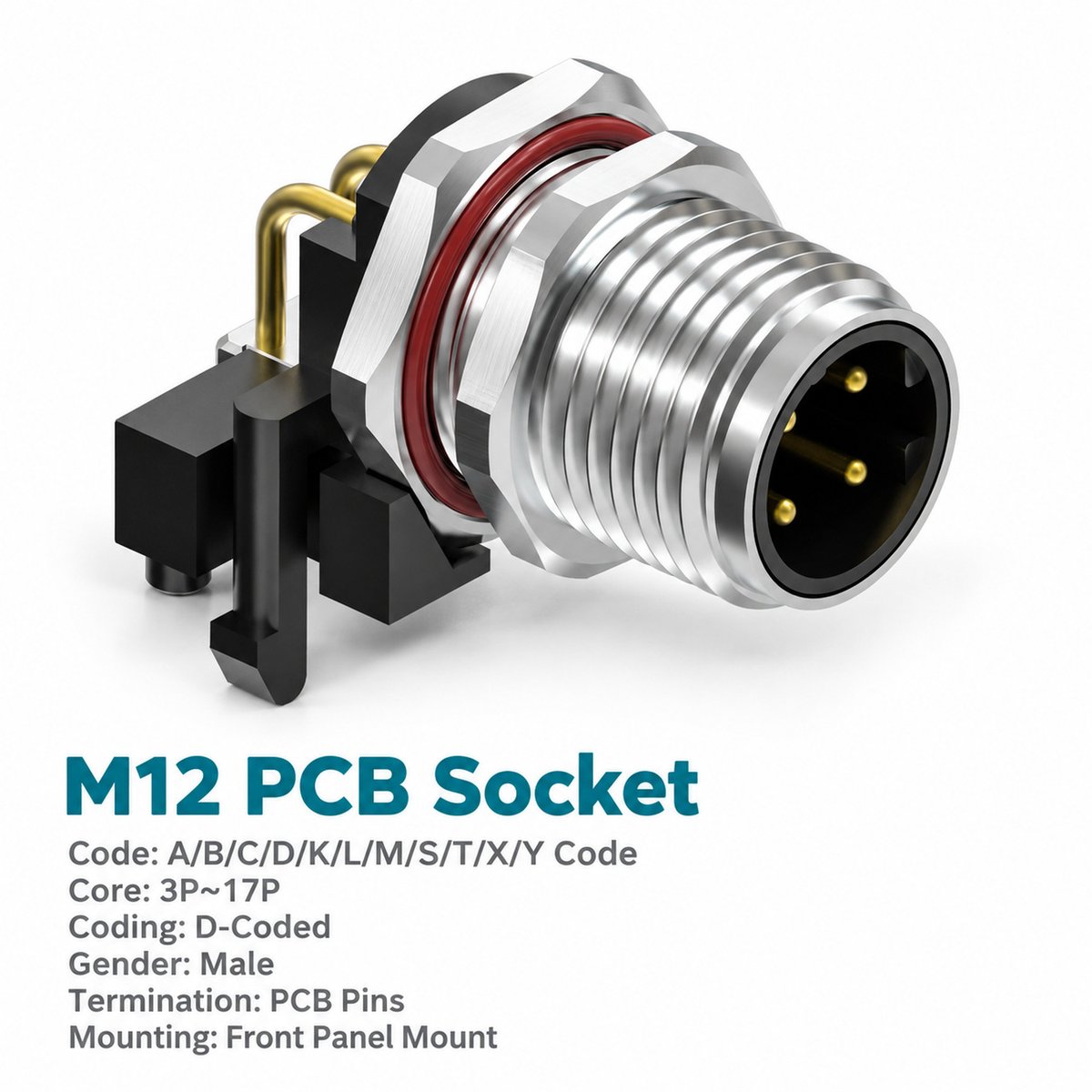

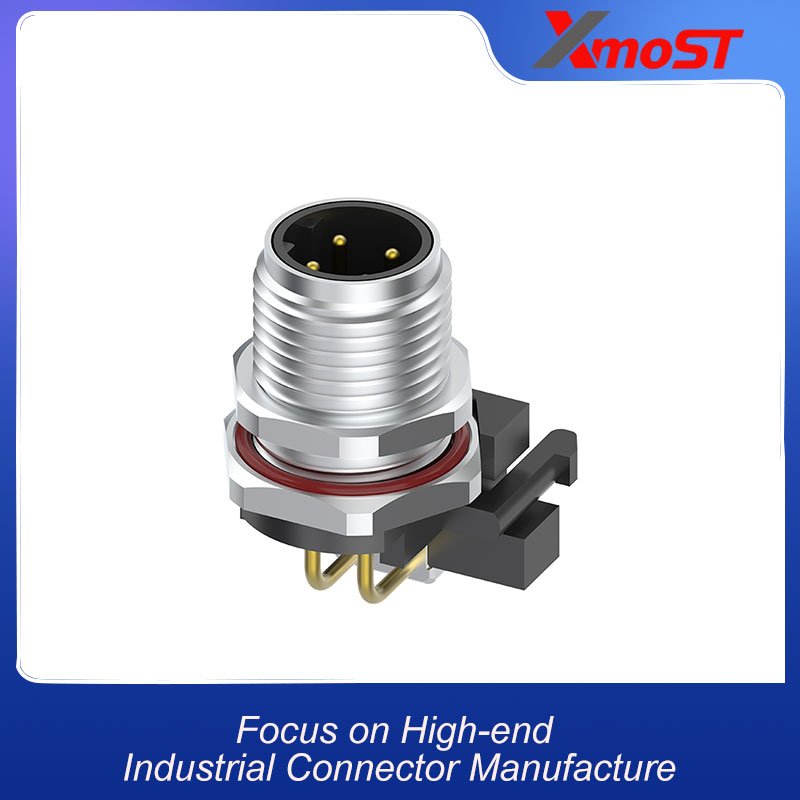

Xmost M12 D-coded male right angle PCB connector connects an external female Ethernet cable connector to the circuit board inside industrial equipment. Its front fastened panel construction combines a threaded M12 mating interface with bent PCB solder contacts.
The 90-degree contact arrangement suits assemblies where the PCB connection must turn behind the panel. This allows the connector to be incorporated into equipment designed around a right angle board connection rather than straight rear contacts.
This 4-pin M12 panel mount Ethernet connector is intended for compatible PROFINET and industrial Ethernet interfaces. Choose the grounding and shielding construction according to the equipment design and complete network assembly.
Key Features
- Right angle PCB contacts: Bent contacts provide a 90-degree board termination behind the panel.
- 4-pin D-coded male interface: Mates with a compatible M12 D-coded female cable connector.
- Front fastened installation: M12 × 1.0 panel mounting for the illustrated construction.
- PCB dip-solder termination: Supports soldered connection to the internal circuit board.
- Grounding and shielding options: Grounded/ungrounded and shielded/unshielded constructions are listed.
- PROFINET / Ethernet application: Provides a detachable network cable interface for industrial devices.
Product Dimensions
[Insert the male front mount right angle outline drawing and corresponding panel cut-out drawing from page 10.]
Dimensions in mm
| Item | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | M12 × 1.0 |
| Overall vertical dimension shown | 26 |
| Upper axial section | 13 |
| Lower section dimension shown | 7 |
| Horizontal dimension shown | 20.4 |
| Upper wrench size | SW10.5 |
| Mounting nut wrench size | SW15 |
| Recommended through-hole diameter | Ø12.1, +0.1/−0 |
| Recommended threaded panel hole | M12 × 1.0 |
Needle Arrangement (Front View)
[Insert only the D-coded 4-pin male needle arrangement diagram from page 10.]
The diagram shows the male mating-face view with contacts numbered 1–4. Follow the equipment wiring specification for Ethernet signal assignments; the front view does not represent the rear PCB contact orientation.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 D-coded male front mount right angle PCB connector |
| Contact count | 4 pins |
| Mounting | Front fastened |
| PCB contact style | Right angle |
| Termination | PCB dip soldering |
| Standard listed | IEC 61076-2-101 |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Grounding options | Grounded / ungrounded |
| Shielding options | Shielded / unshielded |
| Mating thread | M12 × 1.0 |
| Panel mounting thread | M12 × 1.0 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
- Industrial Ethernet modules: Connects external network cables to PCB communication circuits.
- PROFINET I/O devices: Provides a D-coded panel interface with right angle board termination.
- Automation controllers: Suits housings designed around a 90-degree PCB connector arrangement.
- Industrial communication gateways: Integrates a threaded M12 cable interface into network equipment.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Interface | M12 D-coded male, 4-pin |
| Mounting | Front mount |
| PCB termination | Right angle, dip soldering |
| Panel mounting thread | M12 × 1.0 |
| Grounding | Grounded / ungrounded |
| Shielding | Specify shielded / unshielded |
| Grounding Option | Male Part Number |
|---|---|
| Ungrounded | 1M1211DM04R12P |
| Grounded | 1M1211DM04R12PS |
Example enquiry: M12 D-coded male front mount right angle PCB connector, 4-pin, M12 × 1.0 panel mounting, grounded construction, shielded version.
