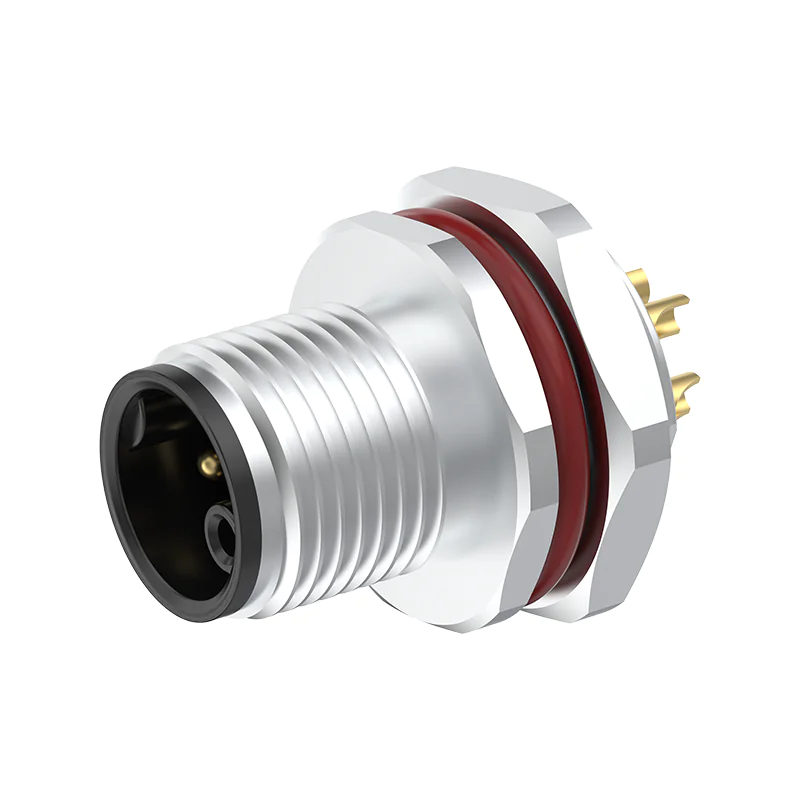

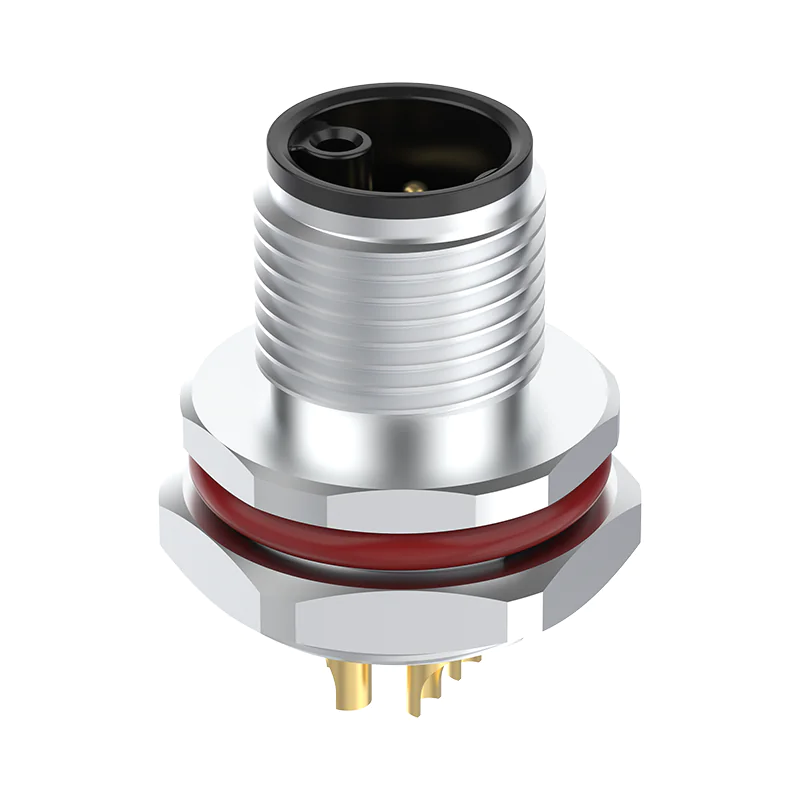

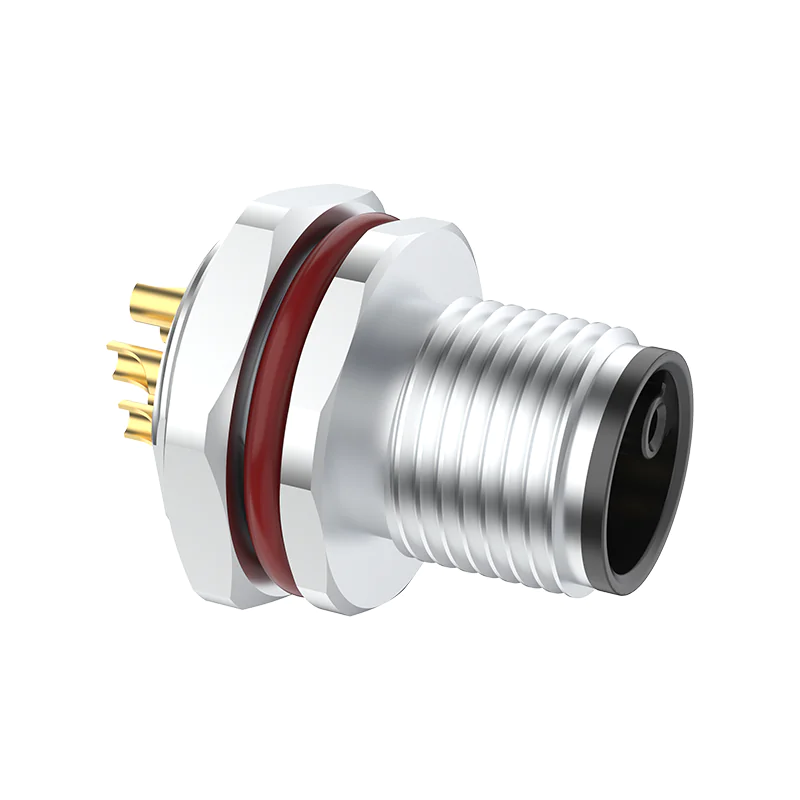

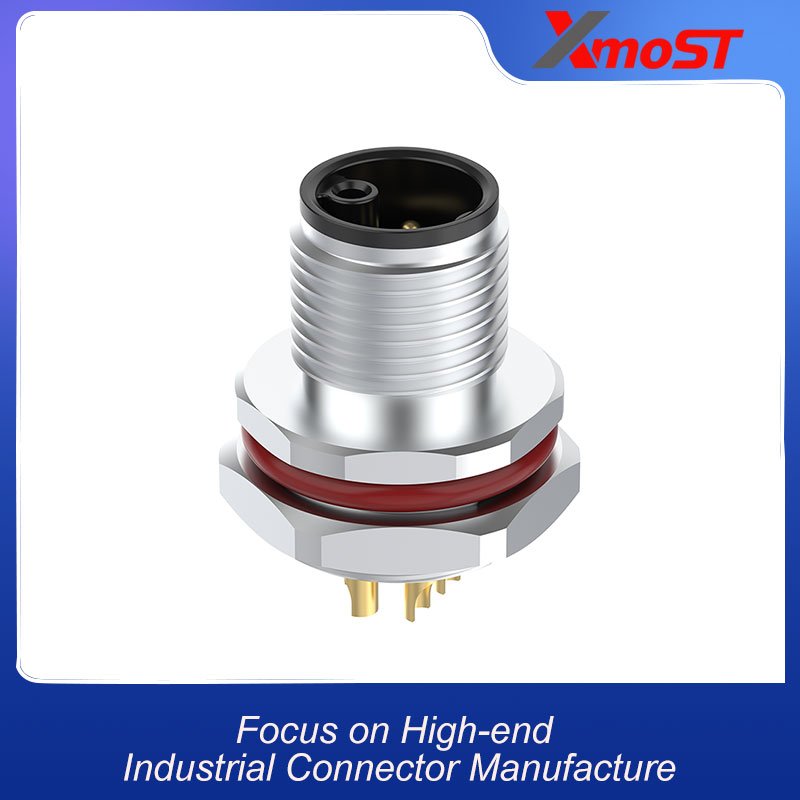

M12 K-Coded Male Rear Mount Socket, Solder or Crimp, Unwired or Pre-Wired

Xmost M12 K-coded male rear mount socket combines rear fastened panel installation with solder or crimp termination for AC power wiring. Rated at 16 A and 630 V, this M12 male power connector is available unwired or with pre-wired leads in three contact configurations with PE.

  • Brand: Xmost
  • Connector Size: M12
  • Coding: K-coded
  • Contact Gender: Male
  • Mounting Type: Rear mount / rear fastened
  • Termination Options: Solder / crimp
  • Wiring Options: Unwired / pre-wired leads
  • Contact Options: 3-pin (2+PE) / 4-pin (3+PE) / 5-pin (4+PE)
  • Shielding: Unshielded
  • Application Type: AC power
  • Rated Current: 16 A
  • Rated Voltage: 630 V
  • Panel Mounting Threads: M12 × 1.0 / PG9 / M16 × 1.5
  • Standard Listed: IEC 61076-2-111
Category: Tag: Brand:

Xmost M12 K-coded male rear mount socket provides a detachable power interface on an equipment housing. Its rear fastened construction positions the wiring connection inside the enclosure and the male mating interface outside the panel.

Available with solder or crimp contacts, this M12 K-coded panel mount connector supports different internal harness assembly methods. Unwired versions allow customer termination, while the listed 0.3 m pre-wired versions provide leads for connection to the equipment circuit.

Key Features

  • Rear fastened mounting: For housings designed to accept a rear mount power socket.
  • K-coded male connection: Mates with a compatible M12 K-coded female connector.
  • Two termination methods: Solder and crimp versions available.
  • Three contact arrangements: 2+PE, 3+PE and 4+PE.
  • Rated 16 A / 630 V: For circuits within the listed electrical ratings.
  • Lead options: Unwired or supplied with 0.3 m pre-wired leads.
  • Multiple panel threads: M12 × 1.0, PG9 and M16 × 1.5.
  • Unshielded design: Matches the construction listed on the specification page.

Product Dimensions

M12 K-Coded Male Rear Mount Socket, Solder or Crimp, Unwired or Pre-Wired

[Insert the rear mount male socket dimension drawing and panel cut-out drawing here.]

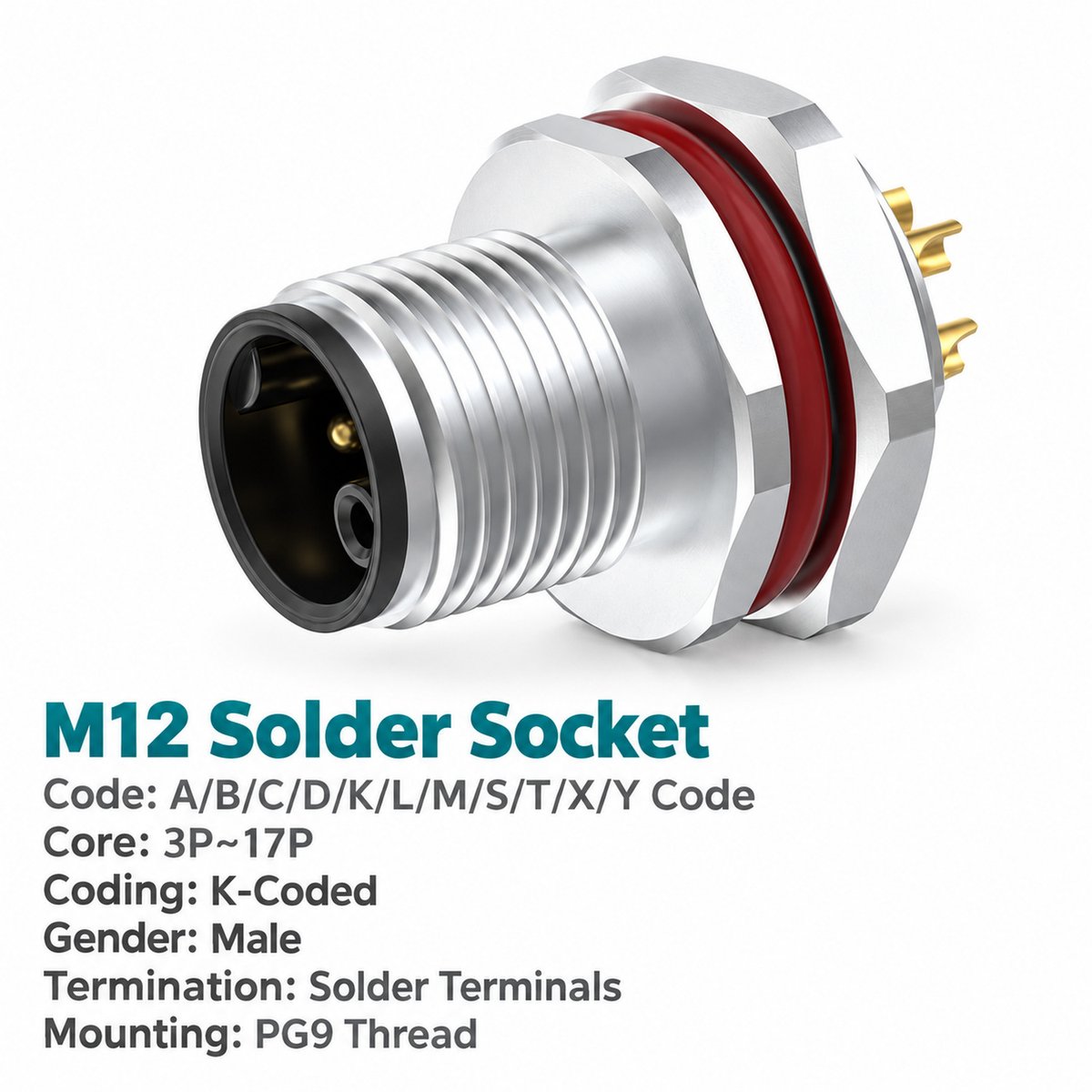

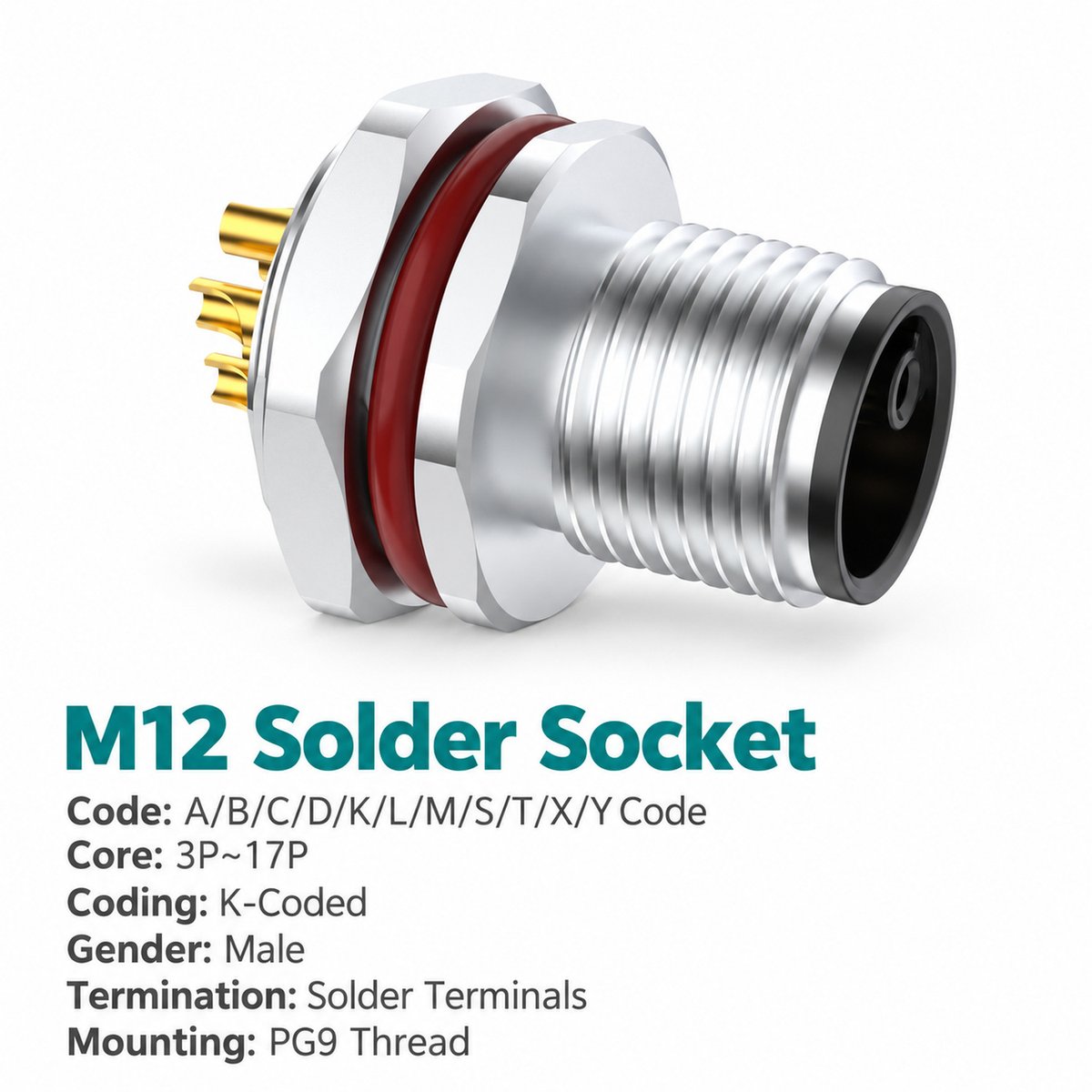

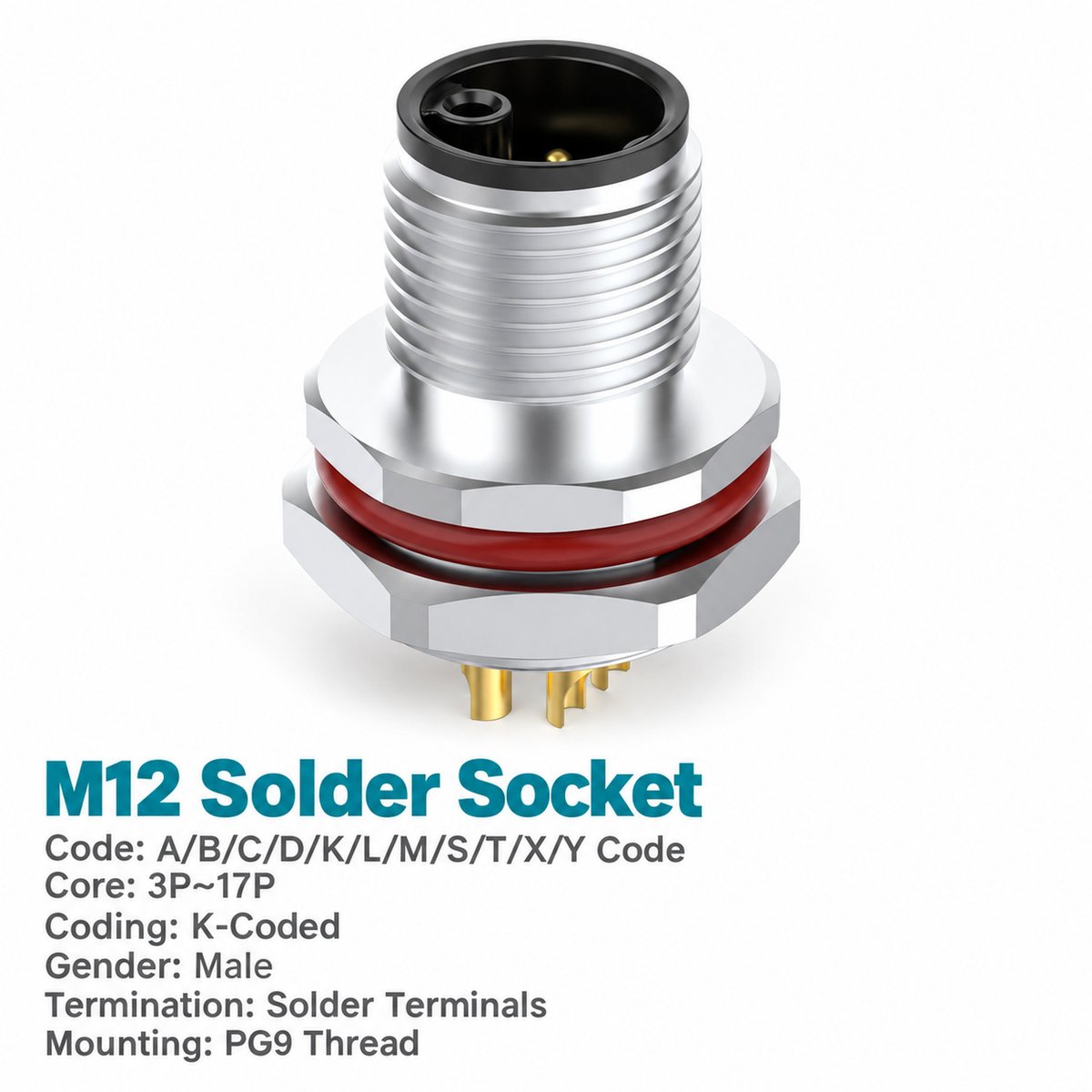

Illustrated PG9 Version

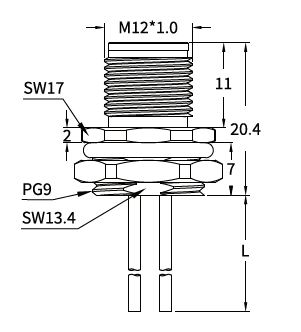

Drawing Item Dimension / Specification
Mating thread M12 × 1.0
Panel mounting thread PG9
Upper wrench size SW17
Lower wrench size SW13.4
Upper axial section shown 11
Overall body length shown, excluding leads 20.4
Flange thickness shown 2
Lower axial section shown 7
Lead length L, according to ordered version
Unit mm

Check rear mounting hardware clearance and internal lead routing against the drawing. Use the panel opening specified for the selected mounting thread.

Needle Arrangement (Front View)

M12 K-Coded Male Rear Mount Socket, Solder or Crimp, Unwired or Pre-Wired 1

[Insert the K-coded male needle arrangement screenshot showing 3-pin (2+PE), 4-pin (3+PE) and 5-pin (4+PE).]

The contact positions are viewed from the mating face. Match the diagram to the ordered configuration when identifying the circuit contacts and PE connection.

Product Specifications

Parameter Specification
Brand Xmost
Product type M12 K-coded male rear mount socket
Mounting Rear fastened
Contact configurations 3-pin (2+PE) / 4-pin (3+PE) / 5-pin (4+PE)
Termination options Solder / crimp
Wiring options Unwired / pre-wired leads
Standard listed IEC 61076-2-111
Rated current 16 A
Rated voltage 630 V
Insulation resistance ≥100 MΩ
Contact resistance ≤5 mΩ
Shielding Unshielded
Coupling thread M12 × 1.0
Panel mounting thread options M12 × 1.0 / PG9 / M16 × 1.5
Recommended coupling torque 0.4 N·m
Maximum coupling torque 0.8 N·m
Wire size listed 2.5 mm² / AWG14
Temperature range, flexible use −25°C to +80°C
Temperature range, static use −40°C to +80°C
Protection ratings listed IP67 / IP68 / IP69K
Pollution degree 3
Insulator materials listed PA66+GF / TPU+GF

Applications

This M12 K-coded rear mount socket can be selected for:

  • Industrial AC power interfaces with rear fastened mounting.
  • Control enclosures containing internal power harnesses.
  • Machine panels receiving K-coded female cable connectors.
  • Equipment assemblies requiring a PE connection.
  • Modular power wiring using soldered or crimped terminations.

Choose the mounting arrangement, contact configuration and lead length to suit the equipment layout.

Wiring and Lead Options

[Insert the wire colour and pin assignment screenshot from page 13 here.]

Contact Position 3-pin (2+PE) 4-pin (3+PE) 5-pin (4+PE)
Pin 1 Not used Black 1 — BK1 Black 1 — BK1
Pin 2 Black 2 — BK2 Black 2 — BK2 Black 2 — BK2
Pin 3 Black 3 — BK3 Black 3 — BK3 Black 3 — BK3
Pin 4 Not used Not used Black 4 — BK4
Pin 5 / PE Yellow/green — YE/GN Yellow/green — YE/GN Yellow/green — YE/GN

The yellow/green lead is shown in the catalogue’s Pin 5 row. Follow the selected needle arrangement and wire assignment when connecting the internal harness.
