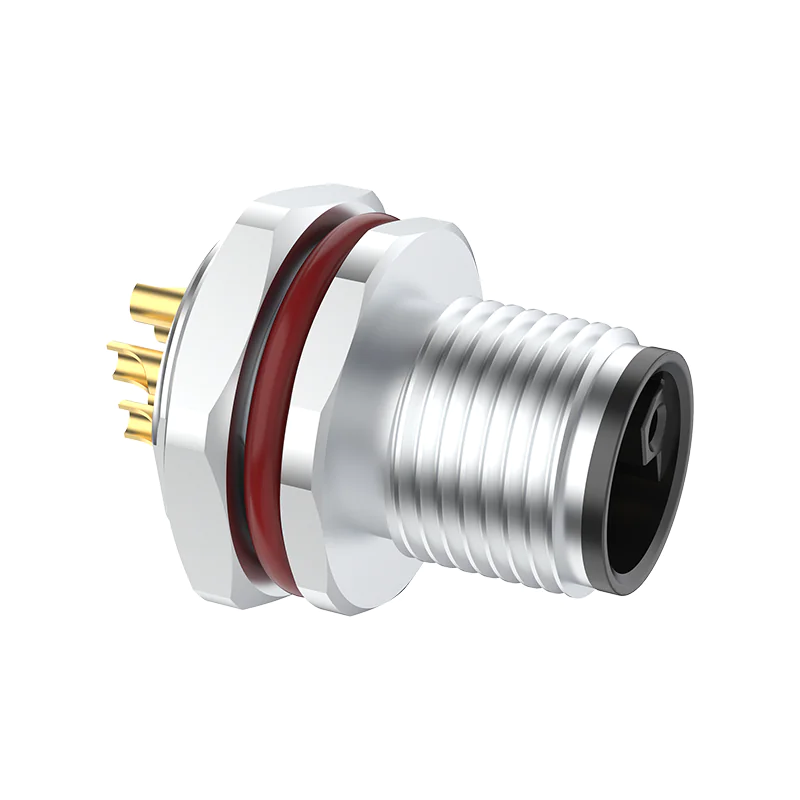

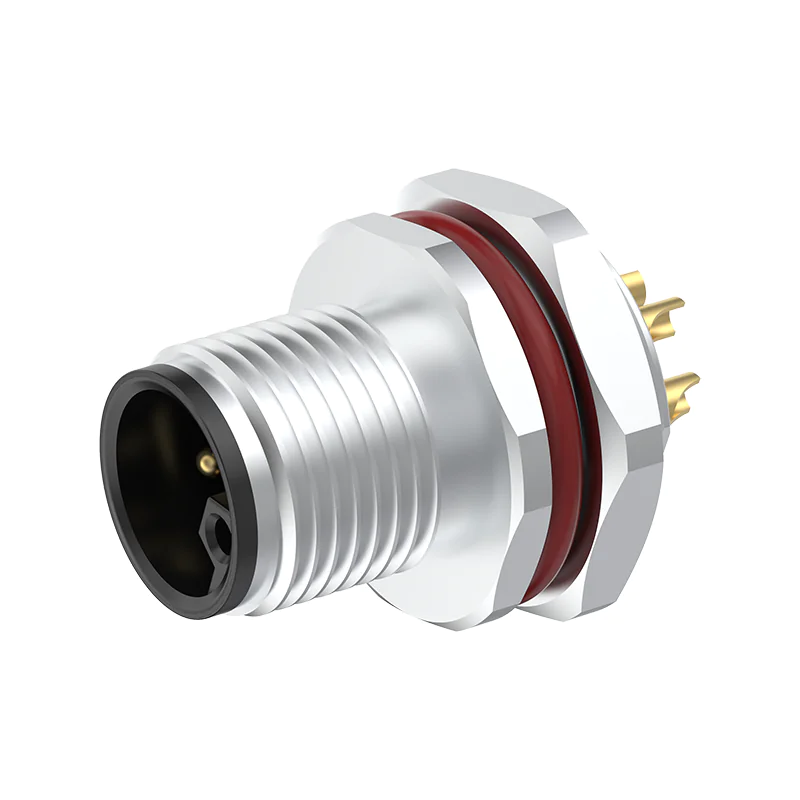

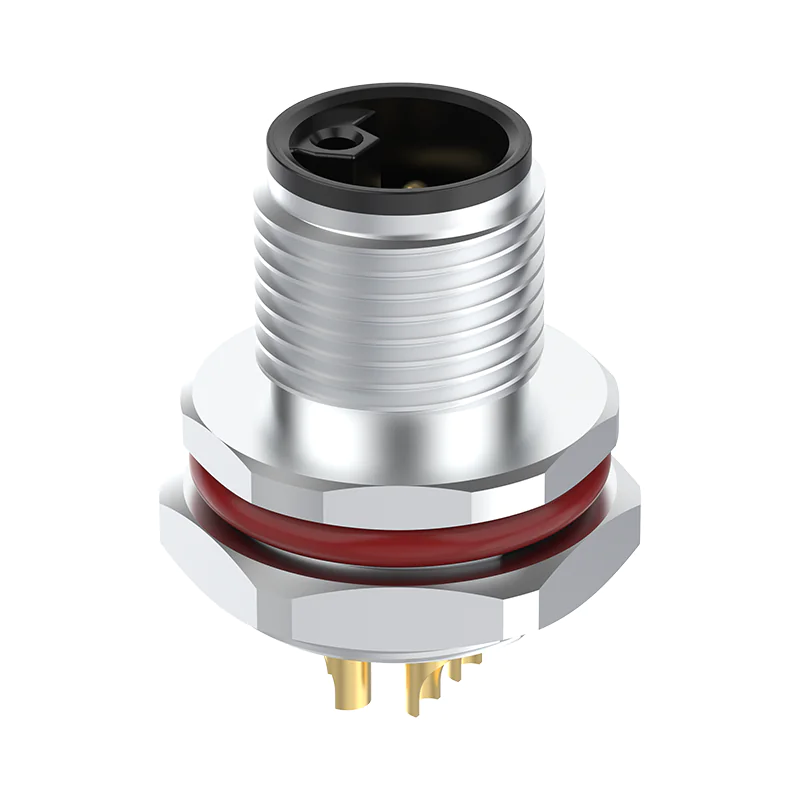

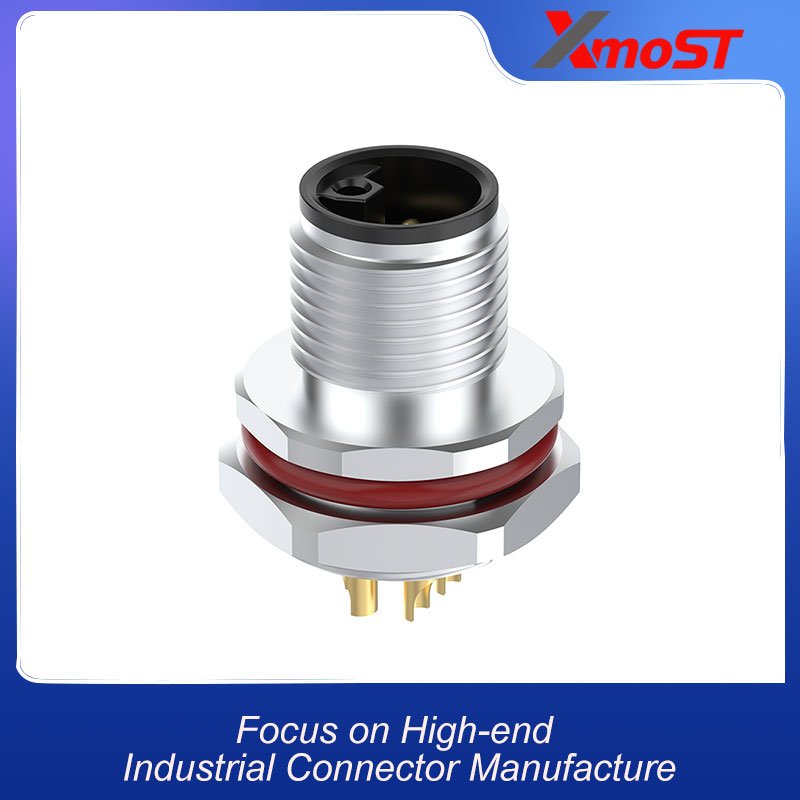

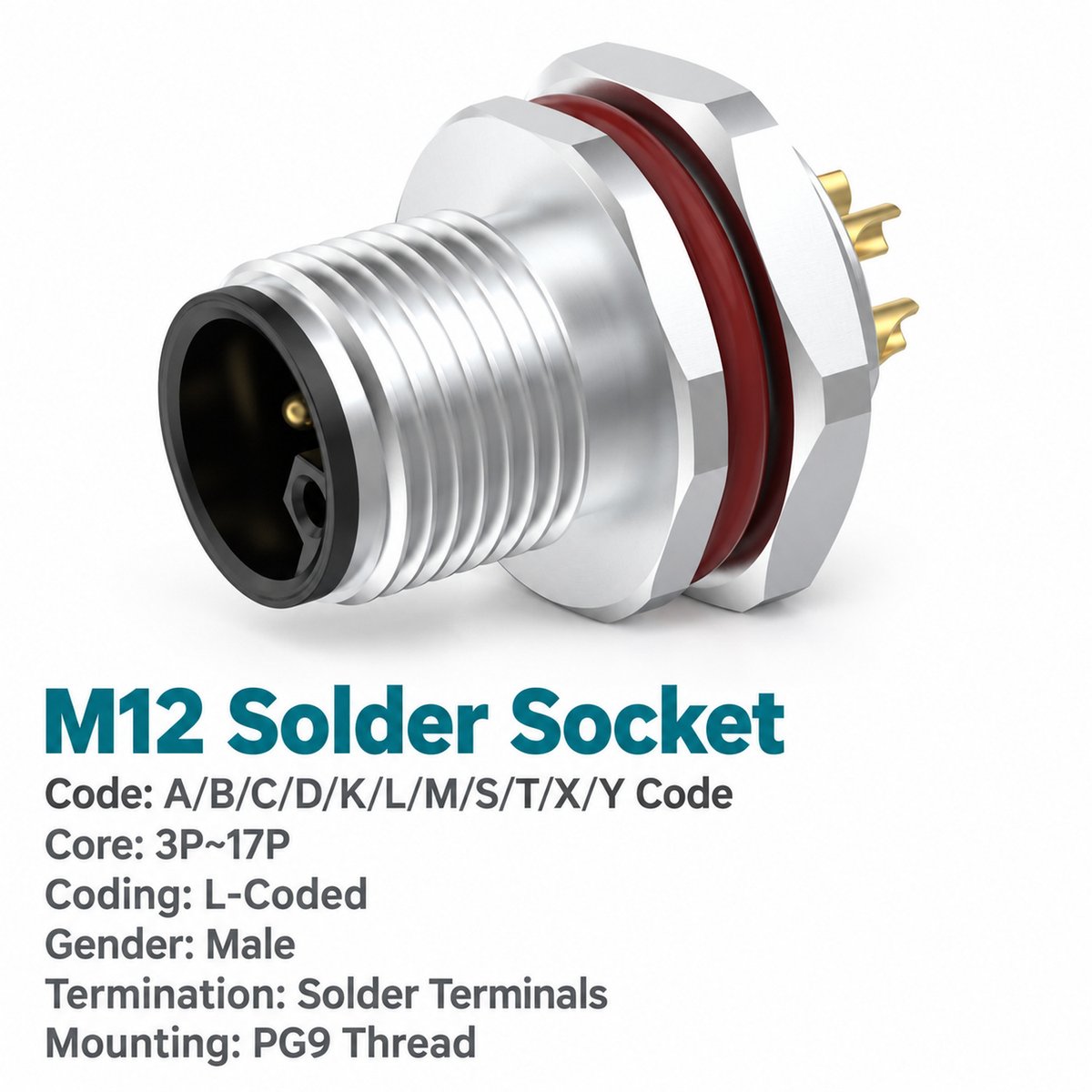

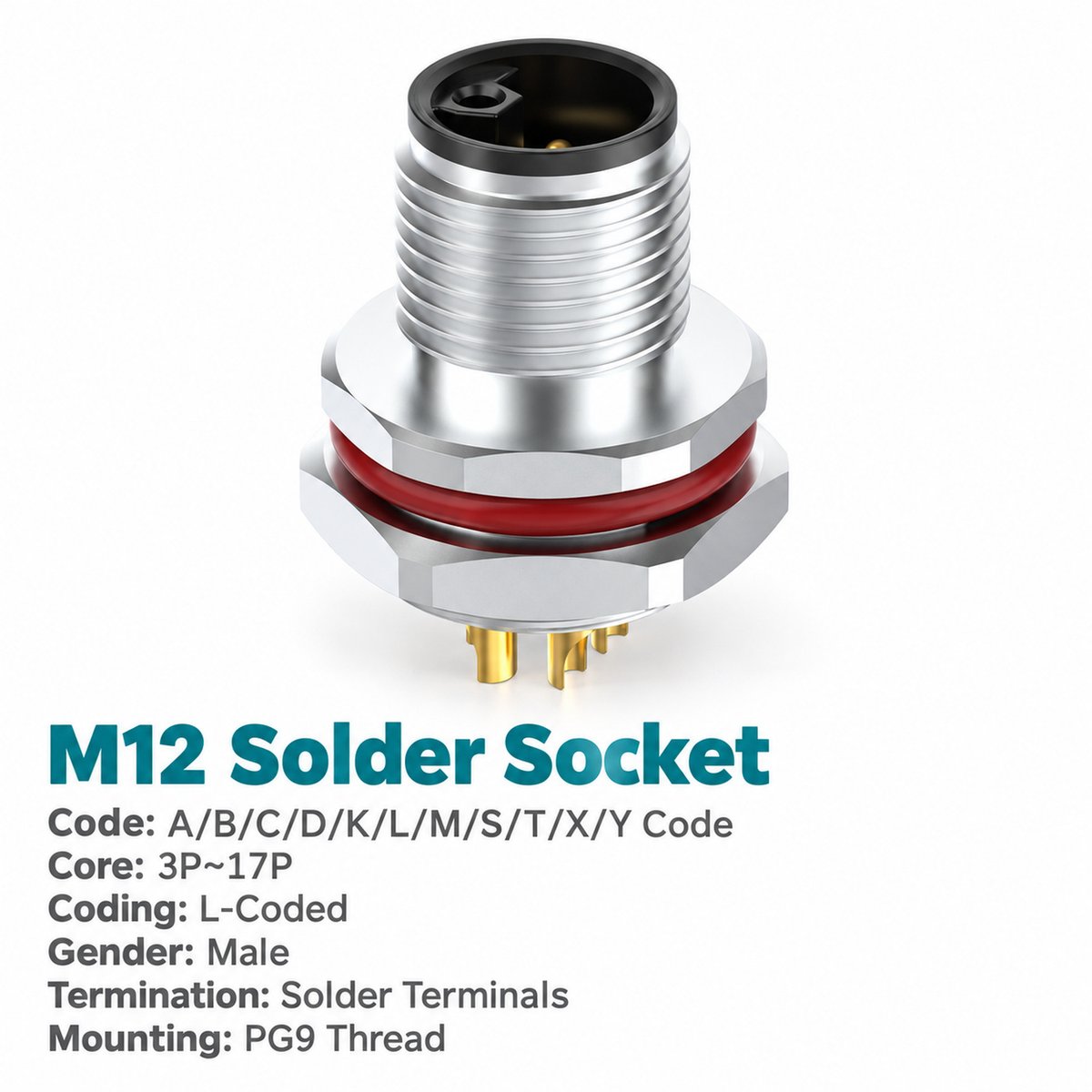

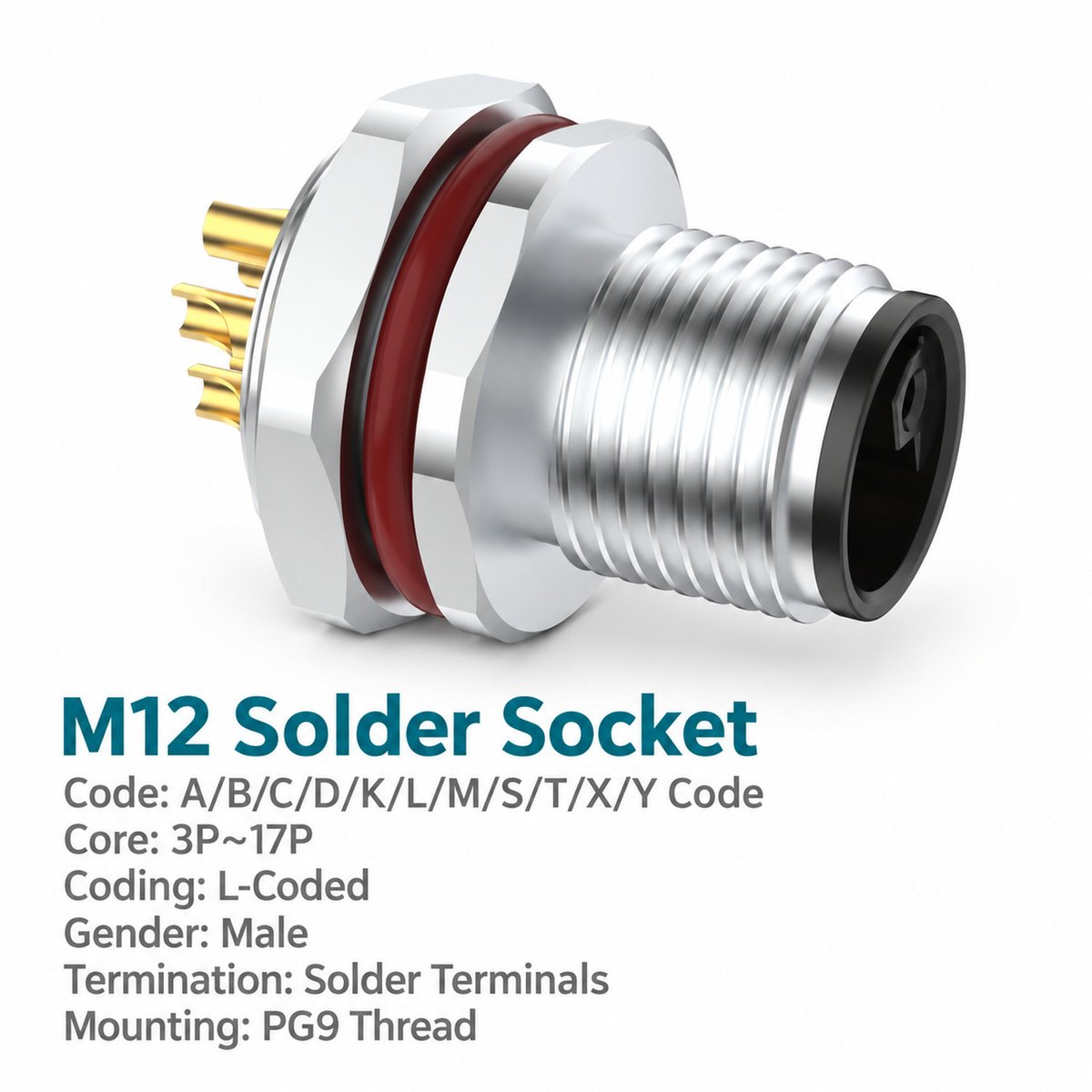

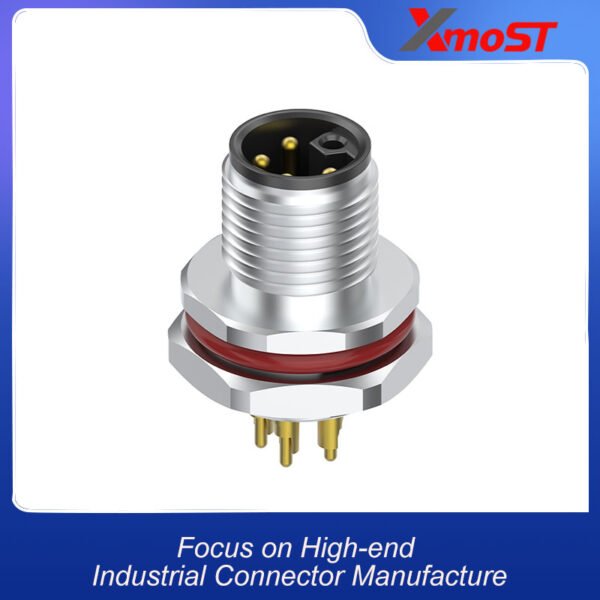

Xmost M12 L-coded male rear mount socket provides an external DC power connection with wire termination inside the equipment housing. Its rear fastened construction is intended for panels designed to accommodate the rear mounting hardware and internal harness.
This M12 male power connector offers five contact arrangements, allowing selection of circuit contacts with or without functional earth. The unwired solder version supports termination during assembly, while pre-wired versions provide a defined lead length for routing to an internal terminal or harness connection.
Choose this rear mount M12 L-coded socket according to panel access, wiring clearance and electrical requirements. The catalogue lists a rated current of 16 A, a rated voltage of 63 V and a wire size of 2.5 mm² / AWG14.
Key Features
- Rear fastened construction: For equipment panels designed to use a rear mount power receptacle.
- Male L-coded interface: Connects to a matching M12 L-coded female cable connector.
- DC power application: Rated 16 A and 63 V.
- With or without FE: Select 2+FE, 3-pin, 3+FE, 4-pin or 4+FE.
- Solder wiring connection: For termination to the internal equipment harness.
- Pre-wired versions: Listed lead lengths of 0.1 m, 0.3 m and 0.5 m.
- Panel thread options: M12 × 1.0, PG9 and M16 × 1.5.
- Unshielded design: As specified for this catalogue product.
Product Dimensions
[Insert the rear mount male socket dimension drawing and corresponding panel cut-out here.]

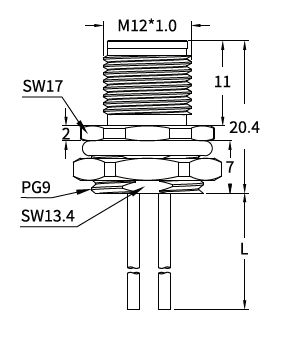

Dimensions for the Illustrated PG9 Version
| Drawing Item | Dimension / Specification |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Upper wrench size | SW17 |
| Lower wrench size | SW13.4 |
| Upper axial section shown | 11 |
| Overall body length shown, excluding leads | 20.4 |
| Flange thickness shown | 2 |
| Lower axial section shown | 7 |
| Lead length | L, according to ordered version |
| Unit | mm |
Check the available space for the rear fastening hardware and wire routing. Prepare the panel opening using the cut-out drawing for the ordered mounting thread.
Needle Arrangement (Front View)
[Insert the five male contact arrangements from page 15 here.]
| Catalogue Configuration | Contact Composition |
|---|---|
| 3-pin (2+FE) | 2 circuit contacts + functional earth |
| 3-pin | 3 circuit contacts, without FE |
| 4-pin (3+FE) | 3 circuit contacts + functional earth |
| 4-pin | 4 circuit contacts, without FE |
| 5-pin (4+FE) | 4 circuit contacts + functional earth |
Use the mating-face diagram to identify the numbered contacts. FE-equipped and non-FE versions must be selected by their complete arrangement, rather than total contact count alone.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Product type | M12 L-coded male rear mount socket |
| Mounting method | Rear fastened |
| Application type | DC power |
| Contact arrangements | 2+FE / 3-pin / 3+FE / 4-pin / 4+FE |
| Termination | Solder |
| Wiring options | Unwired / pre-wired leads |
| Standard listed | IEC 61076-2-111 |
| Rated current | 16 A |
| Rated voltage | 63 V |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Shielding | Unshielded |
| Coupling thread | M12 × 1.0 |
| Panel mounting thread options | M12 × 1.0 / PG9 / M16 × 1.5 |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Wire size listed | 2.5 mm² / AWG14 |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 / IP69K |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Applications
This M12 L-coded rear mount solder socket can be considered for:
- DC-powered equipment housings: Bringing an external cable connection through the panel to internal wiring.
- Distributed automation modules: Providing a detachable power interface where the selected configuration meets the module requirements.
- Control enclosures with rear mounting access: Accommodating rear fastening hardware and internal lead routing.
- Pre-wired machine assemblies: Connecting the socket leads to the equipment harness.
- Functional earth interfaces: Using the dedicated FE contact where required by the equipment design.
Wiring and Lead Options
[Insert the wiring colour and pin assignment screenshot from page 15 here.]
| Contact Position | 2+FE | 3-pin | 3+FE | 4-pin | 4+FE |
|---|---|---|---|---|---|
| Pin 1 | — | Brown — BN | Brown — BN | Brown — BN | Brown — BN |
| Pin 2 | White — WH | White — WH | White — WH | White — WH | White — WH |
| Pin 3 | Blue — BU | Blue — BU | Blue — BU | Blue — BU | Blue — BU |
| Pin 4 | — | — | — | Black — BK | Black — BK |
| Pin 5 / FE | Grey — GY | — | Grey — GY | — | Grey — GY |
The grey FE lead appears only in the corresponding FE-equipped versions. Follow the selected contact diagram and equipment schematic when assigning the DC circuits.
Selection and Ordering
Specify the following for the rear mount M12 L-coded power socket:
- Required circuit contacts and FE option.
- Panel mounting thread.
- Unwired or pre-wired version.
- Lead length: 0.1 m, 0.3 m or 0.5 m.
- Any custom wiring requirements.
Check rear installation clearance and confirm the matching external cable connector before ordering.
