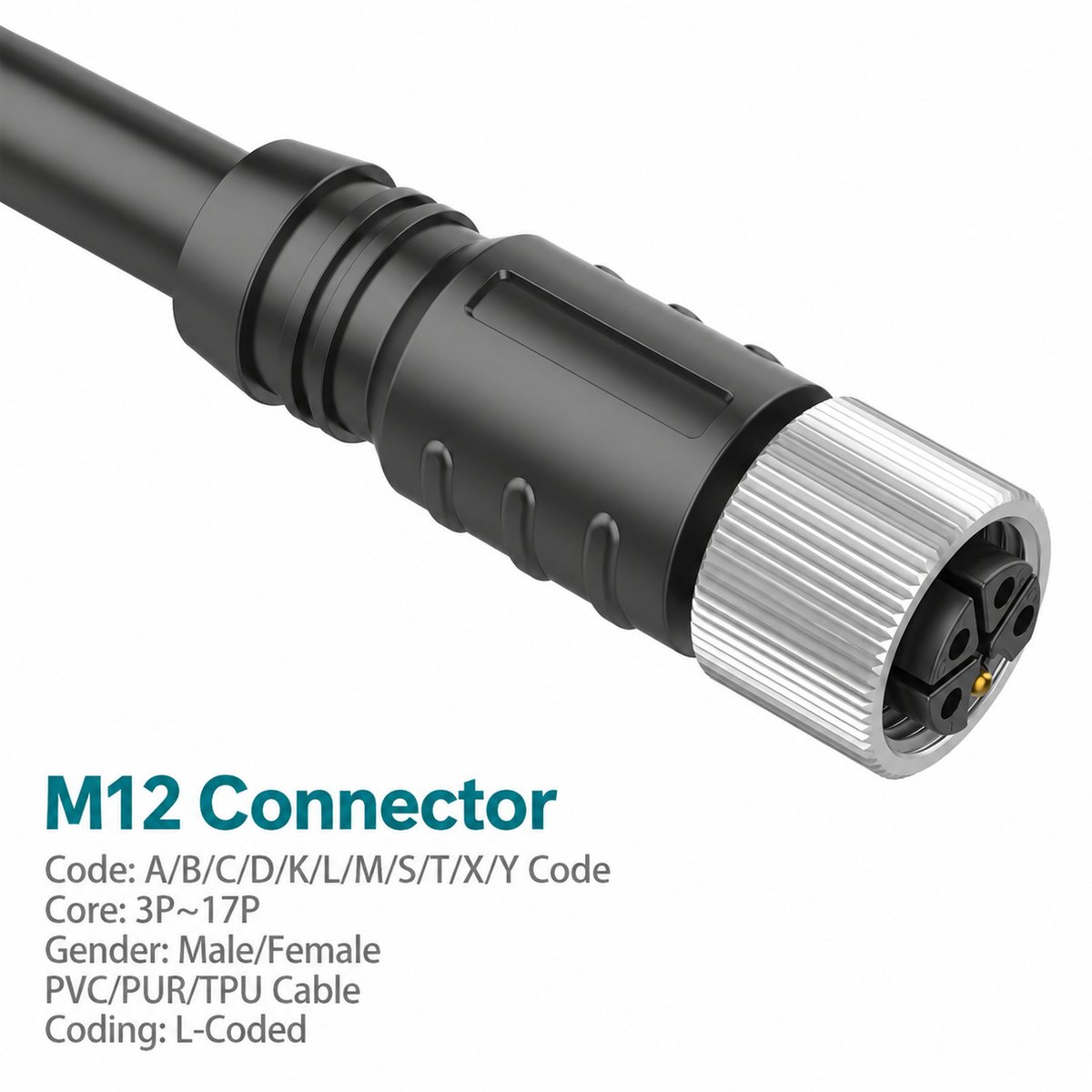

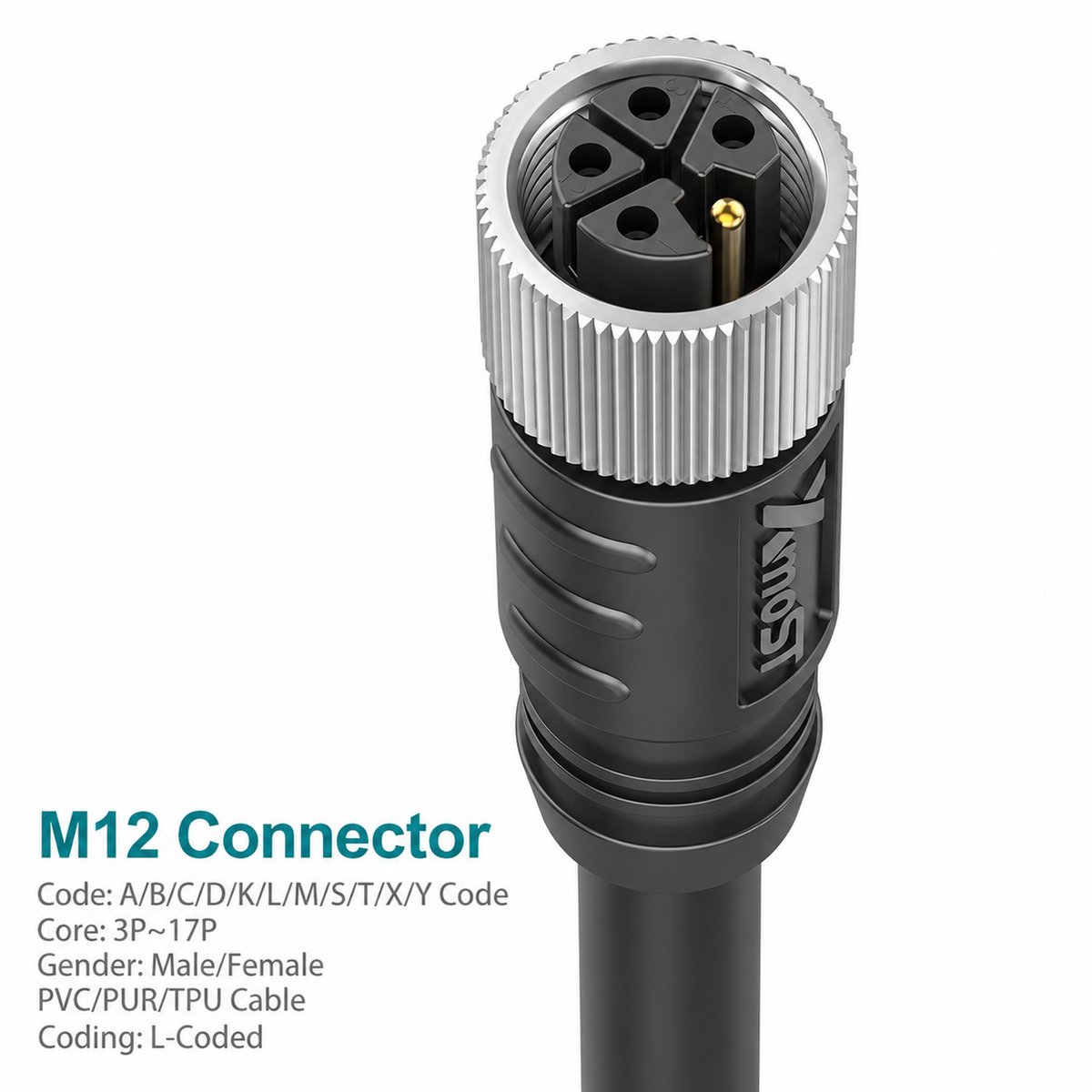

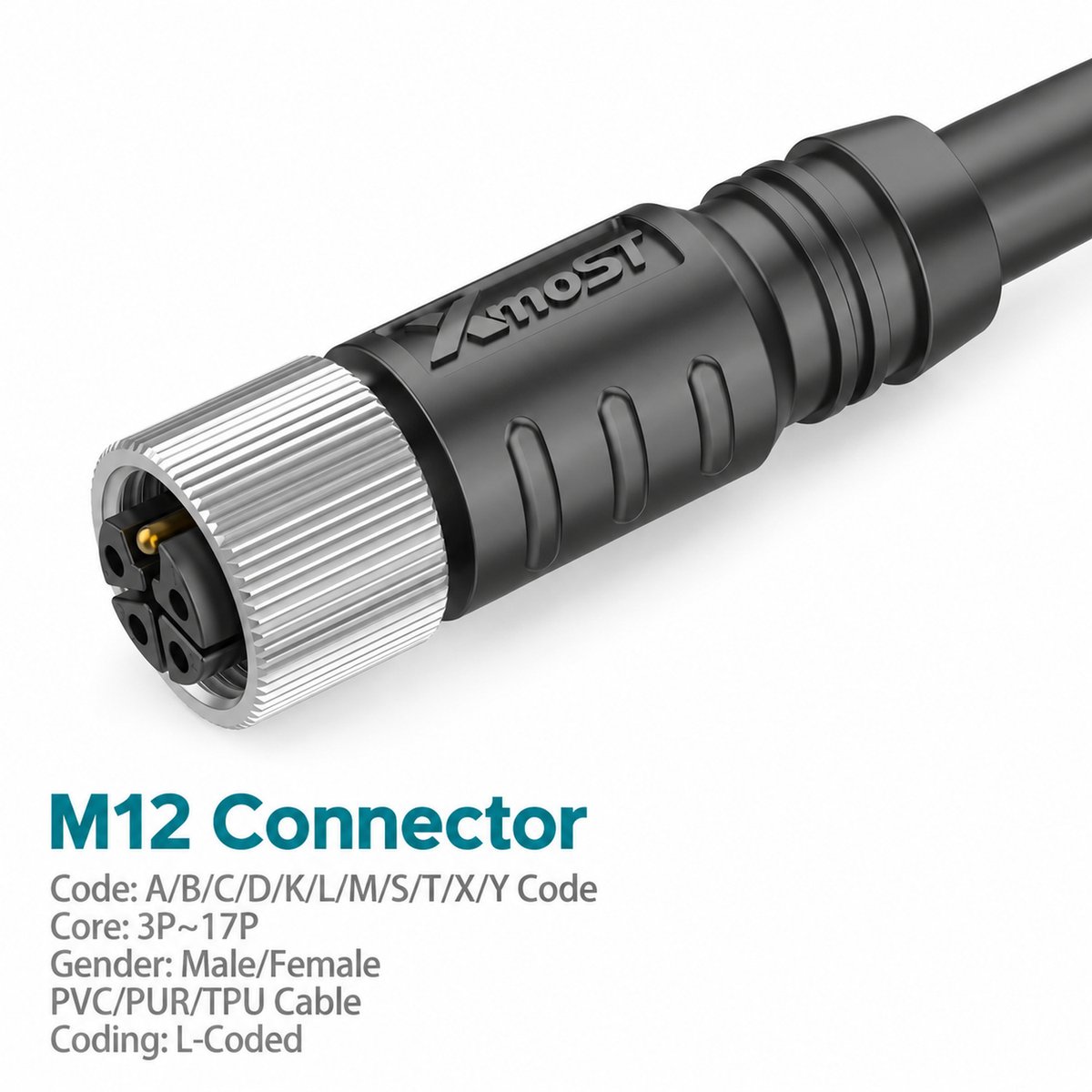

Xmost M12 L-coded female straight power cable connector provides a shielded DC power connection to equipment with a matching L-coded male interface. Its single-ended molded construction combines the female connector and cable into a preassembled assembly.
The straight cable exit directs the cable along the mating axis, supporting installations with clearance behind the connection. M12 × 1.0 screw locking secures the mating interface.
The catalog lists 16 A and 63 V ratings for five contact arrangements: 3-pin (2 + FE), 3-pin without FE, 4-pin (3 + FE), 4-pin without FE and 5-pin (4 + FE). PVC and PUR cable options are listed in 1 m and 3 m lengths.
Key Features
- M12 L-coded female interface for compatible DC power equipment.
- 16 A rated current and 63 V rated voltage, as listed in the catalog.
- Shielded DC power cable assembly.
- Straight molded connector for axial cable routing.
- Contact configurations with or without functional earth.
- Single-ended preassembled cable construction.
- M12 × 1.0 screw-locking interface.
- 2.5 mm² / AWG14 wire size listed in the technical specifications.
- PVC or PUR cable options, with 1 m and 3 m catalog lengths.
Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Connector axial length shown | 45.4 |
| Coupling section axial span | 13.4 |
| Molded body axial span | 32 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 12.9 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |

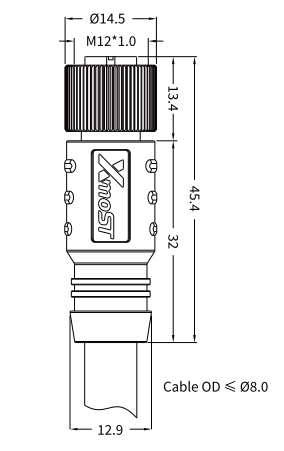

Dimensions correspond to the marked spans in the straight female connector drawing. Cable length is specified separately.
Product Specifications
Contact Configurations and Electrical Ratings
| Contact Configuration | Rated Current | Rated Voltage | Wire Size |
|---|---|---|---|
| 3-pin (2 + FE) | 16 A | 63 V | 2.5 mm² / AWG14 |
| 3-pin, without FE | 16 A | 63 V | 2.5 mm² / AWG14 |
| 4-pin (3 + FE) | 16 A | 63 V | 2.5 mm² / AWG14 |
| 4-pin, without FE | 16 A | 63 V | 2.5 mm² / AWG14 |
| 5-pin (4 + FE) | 16 A | 63 V | 2.5 mm² / AWG14 |
FE = Functional Earth.
General Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | L-coded |
| Contact Gender | Female |
| Connector Orientation | Straight |
| Assembly Type | Single-ended molded cable assembly |
| Shielding | Shielded |
| Application Listed | DC Power |
| Standard Listed | IEC 61076-2-111 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination | Soldering |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 / IP69K |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
| Screw / Nut Material Options | Nickel-plated brass / nickel-plated zinc alloy |
| Contact Material Options | Gold-plated phosphor bronze / gold-plated brass |
| Sealing Material Options | FKM / silicone / epoxy |
| Outer Housing Material Options | TPU / PVC |
| Cable Jacket Options | PVC / PUR |
| Catalog Cable Lengths | 1 m / 3 m |
Applications
Suggested applications for this M12 L-coded female straight DC power connector include:
- Industrial automation equipment: DC supply connections to compatible L-coded male interfaces.
- Distributed I/O modules: Power wiring to modules with matching contact arrangements.
- Modular machinery: Detachable DC power connections between compatible equipment sections.
- Axial cable-routing layouts: Installations where the cable can exit directly behind the connector.
Select the contact configuration according to the equipment’s voltage, current and functional earth requirements.
Selection and Ordering
Specify the contact arrangement, including whether a functional earth contact is required. Select the PVC or PUR cable jacket, cable length and corresponding straight female part number from the catalog.
Match the L-coded interface and pin assignment to the equipment. Follow the female connector’s front-view pin diagram and wire-color assignment, and maintain the specified shield connection during installation.
