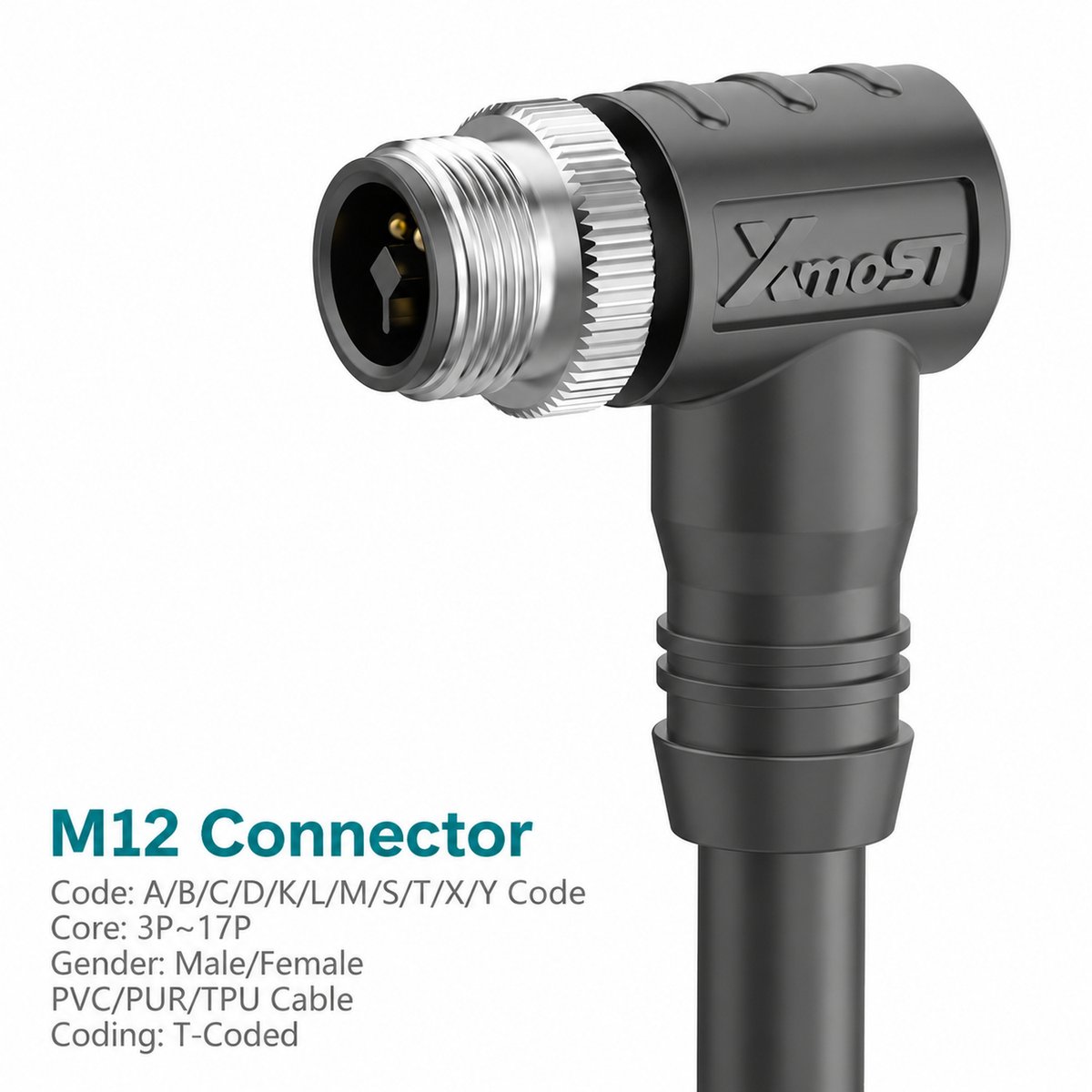

Xmost M12 T-coded male 90° power connector provides an unshielded DC power cable connection for equipment with a matching T-coded female interface. Its right-angle molded design directs the cable perpendicular to the mating axis, accommodating layouts where a straight cable exit is impractical.
This single-ended M12 DC power cable assembly features a 4-pin male interface and M12 × 1.0 screw locking. The catalog lists 12 A and 63 V ratings, with a wire size of 1.5 mm² / AWG16.
PVC and PUR cable options are listed in 1 m and 3 m lengths.
Key Features
- 90° right-angle cable exit for routing close to equipment.
- 4-pin M12 T-coded male interface for compatible DC power connections.
- 12 A rated current and 63 V rated voltage, as listed in the catalog.
- Unshielded, single-ended molded cable assembly.
- M12 × 1.0 screw locking.
- 1.5 mm² / AWG16 wire size listed in the technical specifications.
- PVC or PUR cable options, with 1 m and 3 m catalog lengths.
Product Dimensions
Dimensions (mm)
| Dimension | Value |
|---|---|
| Horizontal span shown | 31.5 |
| Horizontal molded section | 18 |
| Vertical span shown | 36.3 |
| Coupling outside diameter | Ø14.5 |
| Cable-exit width shown | 12.4 |
| Maximum cable outside diameter | ≤ Ø8.0 |
| Mating thread | M12 × 1.0 |
Dimensions correspond to the marked spans in the right-angle male connector drawing. Cable length is specified separately.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Xmost |
| Connector Size | M12 |
| Coding | T-coded |
| Contact Gender | Male |
| Contact Count | 4-pin |
| Connector Orientation | 90° Right-angle |
| Assembly Type | Single-ended molded cable assembly |
| Shielding | Unshielded |
| Application Listed | DC Power |
| Standard Listed | IEC 61076-2-111 |
| Rated Current | 12 A |
| Rated Voltage | 63 V |
| Wire Size | 1.5 mm² / AWG16 |
| Locking Method | M12 × 1.0 screw locking |
| Contact Termination Options Listed | Soldering / crimping |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 5 mΩ |
| Recommended Tightening Torque | 0.4 N·m |
| Maximum Tightening Torque | 0.8 N·m |
| Dynamic Operating Temperature | −25 °C to +80 °C |
| Static Operating Temperature | −40 °C to +80 °C |
| Protection Ratings Listed | IP67 / IP68 |
| Pollution Degree | 3 |
| Insulator Material Options | PA66 + GF / TPU + GF |
| Screw / Nut Material Options | Nickel-plated brass / nickel-plated zinc alloy |
| Contact Material Options | Gold-plated phosphor bronze / gold-plated brass |
| Sealing Material Options | FKM / silicone / epoxy |
| Outer Housing Material Options | TPU / PVC |
| Cable Jacket Options | PVC / PUR |
| Catalog Cable Lengths | 1 m / 3 m |
Applications
Suggested applications for this M12 T-coded male right-angle DC power connector include:
- Automation modules: DC power connections to compatible T-coded female interfaces.
- Industrial equipment: Supply wiring to devices with matching electrical and contact requirements.
- Compact machine layouts: Installations where adjacent components restrict a straight cable exit.
- Equipment panel connections: DC power cable routing alongside the panel through a 90° connection.
Match the equipment’s electrical ratings and pin assignment to the cable assembly.
Selection and Ordering
Specify the cable jacket and cable length. Select the corresponding unshielded right-angle male part number from the catalog ordering table.
Check the mating interface, 4-pin assignment and cable-routing clearance. Follow the male connector’s front-view pin diagram and corresponding wire-color assignment when wiring.
