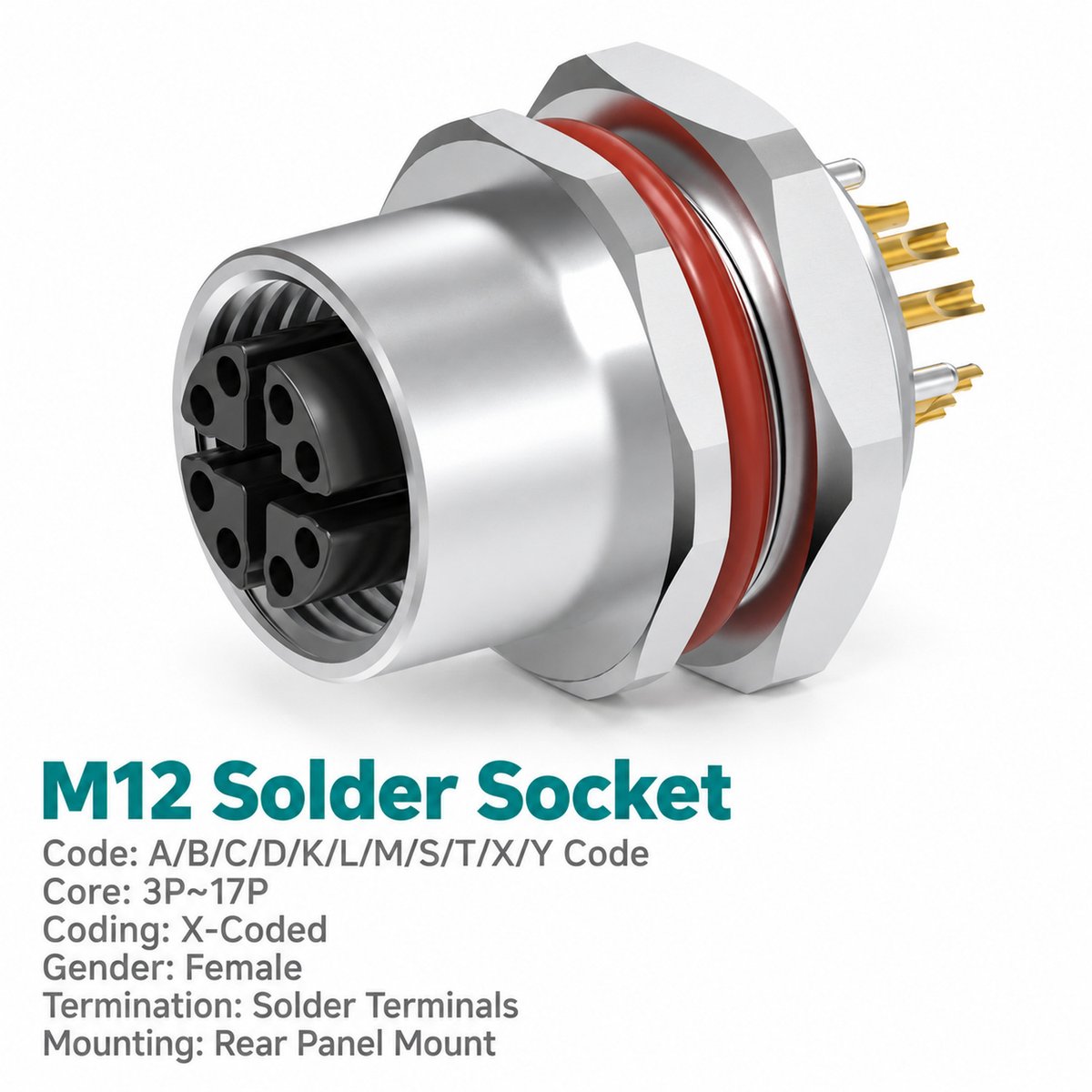

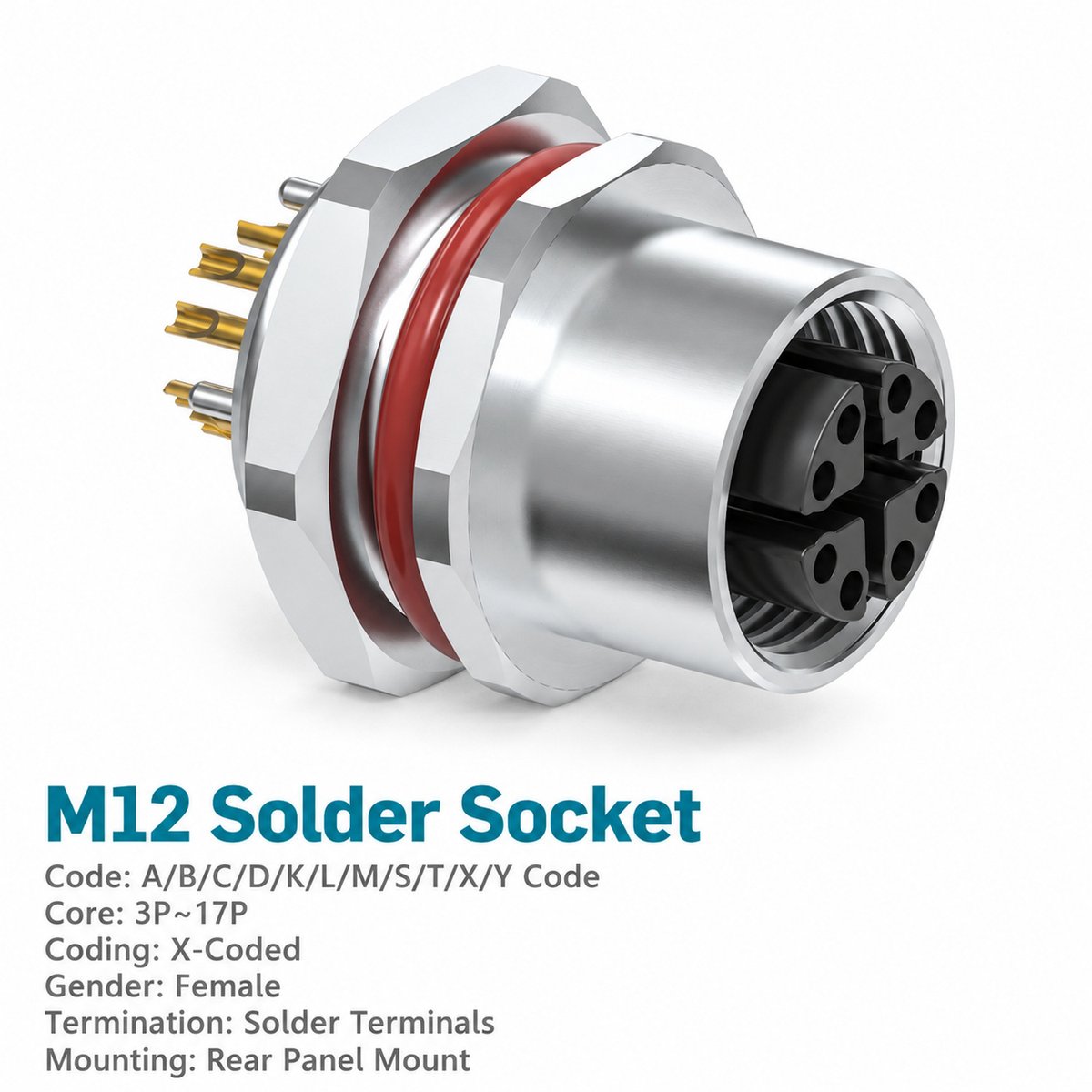

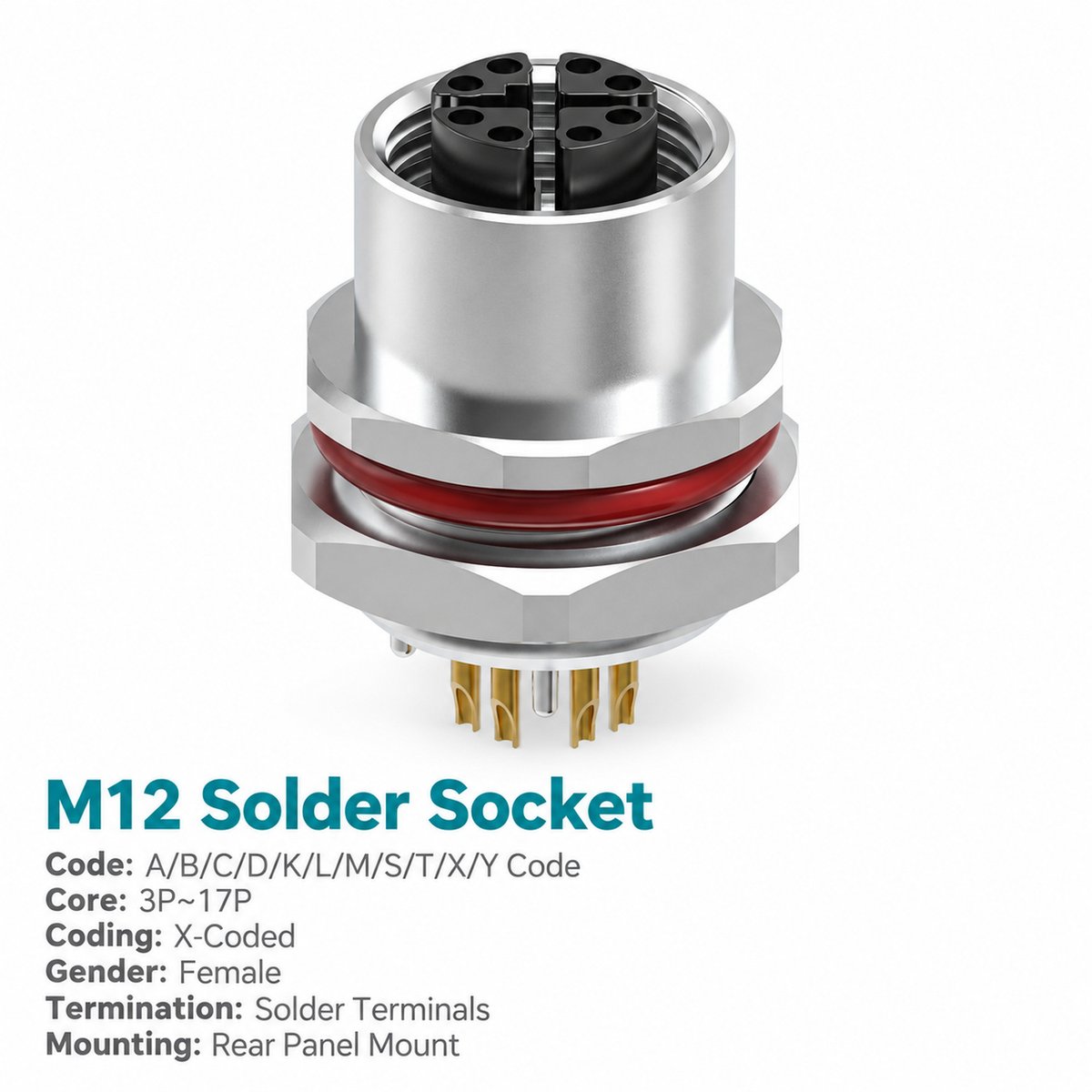

M12 X-Coded Female Rear Mount Ethernet Socket, 8-Pin, Solder

Xmost M12 X-coded female rear mount socket provides an 8-pin Ethernet cable interface on an equipment enclosure. Its rear fastened mounting and solder termination connect an external male cable connector to internal wiring. Select an unwired socket or 0.3 m pre-wired leads with PG9 or M16 × 1.5 mounting.

  • Brand: Xmost
  • Connector Size: M12
  • Coding: X-coded
  • Contact Gender: Female
  • Contact Count: 8 pins
  • Mounting Type: Rear mount / rear fastened
  • Termination: Solder
  • Wiring Options: Unwired / 0.3 m pre-wired leads
  • Shielding: Unshielded, as listed in the catalogue
  • Application Type: Industrial Ethernet
  • Rated Current: 0.5 A
  • Rated Voltage: 50 V AC / 60 V DC
  • Panel Mounting Threads: PG9 / M16 × 1.5
  • Standard Listed: IEC 61076-2-109
Category: Tag: Brand:

M12 X-coded female rear mount socket connects a compatible external male Ethernet cable connector to wiring inside the equipment housing. Select the rear fastened version when the enclosure provides mounting access and clearance for the rear hardware.

The unwired M12 female solder socket allows termination during harness assembly. The 0.3 m pre-wired version provides leads for routing to an internal connection point.

Choose the panel thread according to the enclosure drawing, then check contact numbering and wiring requirements. The catalogue does not specify a transmission speed or cable category for this socket, so confirm those requirements for the complete assembly.

Key Features

  • Rear fastened mounting: For panels designed around a rear mount receptacle.
  • Female X-coded interface: Eight contacts for a compatible M12 X-coded male connector.
  • Solder wiring connection: Supports termination to the internal equipment harness.
  • Unwired or pre-wired construction: Select customer wiring or supplied 0.3 m leads.
  • PG9 or M16 mounting: Two panel thread options.
  • M12 threaded coupling: M12 × 1.0 mating connection.
  • Electrical ratings: Listed at 0.5 A and 50 V AC / 60 V DC.
  • Defined installation drawing: Shows body dimensions and panel cut-out guidance.

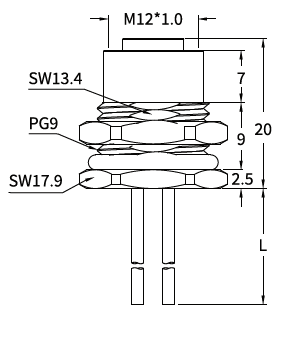

Product Dimensions

M12 X-Coded Female Rear Mount Ethernet Socket, 8-Pin, Solder

[Insert the rear mount female socket drawing and panel cut-out drawing here.]

Illustrated PG9 Version — Dimensions in mm

Item to Check Drawing Value
Mating thread M12 × 1.0
Panel mounting thread PG9
Overall body length shown, excluding leads 20
Upper axial section shown 8
Flange thickness shown 2
Lower axial section shown 9
Upper wrench size SW17
Lower wrench size SW13.4
Lead length L; according to ordered version

Allow space for rear fastening hardware and internal lead routing. Prepare the panel opening using the drawing for the ordered mounting thread.

Needle Arrangement (Front View)

M12 X-Coded Female Rear Mount Ethernet Socket, 8-Pin, Solder 1

[Insert the X-coded 8-pin female contact arrangement screenshot from page 23 here.]

The diagram is viewed from the mating face. Follow the numbered positions when checking compatibility with the external male connector and connecting the internal harness.

Product Specifications

Parameter Specification
Product type M12 X-coded female rear mount Ethernet socket
Mounting Rear fastened
Contact count 8 pins
Termination Solder
Wiring options Unwired / 0.3 m pre-wired leads
Standard listed IEC 61076-2-109
Rated current 0.5 A
Rated voltage 50 V AC / 60 V DC
Wire size listed 0.14 mm² / AWG26
Shielding listed Unshielded
Coupling thread M12 × 1.0
Panel mounting thread options PG9 / M16 × 1.5
Insulation resistance ≥100 MΩ
Contact resistance ≤5 mΩ
Recommended coupling torque 0.4 N·m
Maximum coupling torque 0.8 N·m
Temperature range, flexible use −25°C to +80°C
Temperature range, static use −40°C to +80°C
Protection ratings listed IP67 / IP68
Pollution degree 3
Insulator materials listed PA66+GF / TPU+GF

Applications

This M12 X-coded rear mount female socket can be considered for:

  • Ethernet-enabled equipment housings: Connecting external cables to internal network wiring.
  • Control enclosures with rear mounting access: Accommodating fastening hardware behind the panel.
  • Pre-wired machine assemblies: Routing socket leads to an internal connection point.
  • Modular automation equipment: Providing a detachable 8-contact panel interface.

Check the complete connection against the required network performance, wiring layout and shielding specification.

Wiring and Lead Options

[Insert the wire colour and pin assignment screenshot from page 23 here.]

Contact Wire Colour
Pin 1 White/orange — WH/OR
Pin 2 Orange — OR
Pin 3 White/green — WH/GN
Pin 4 Green — GN
Pin 5 White/brown — WH/BN
Pin 6 Brown — BN
Pin 7 White/blue — WH/BU
Pin 8 Blue — BU

Verify contact numbering against the female mating-face diagram. Follow the equipment wiring specification when connecting the internal harness.

Ordering Information

Wiring Option PG9 Mounting M16 × 1.5 Mounting
Unwired 1M1208XF08HP9W00 1M1208XF08H16W00
0.3 m pre-wired leads 1M1208XF08HP9W30 1M1208XF08H16W30

Example enquiry: M12 X-coded female rear mount socket, 8-pin, M16 × 1.5 mounting, solder termination, unwired.

Confirm mounting clearance and any custom lead requirements before ordering.
