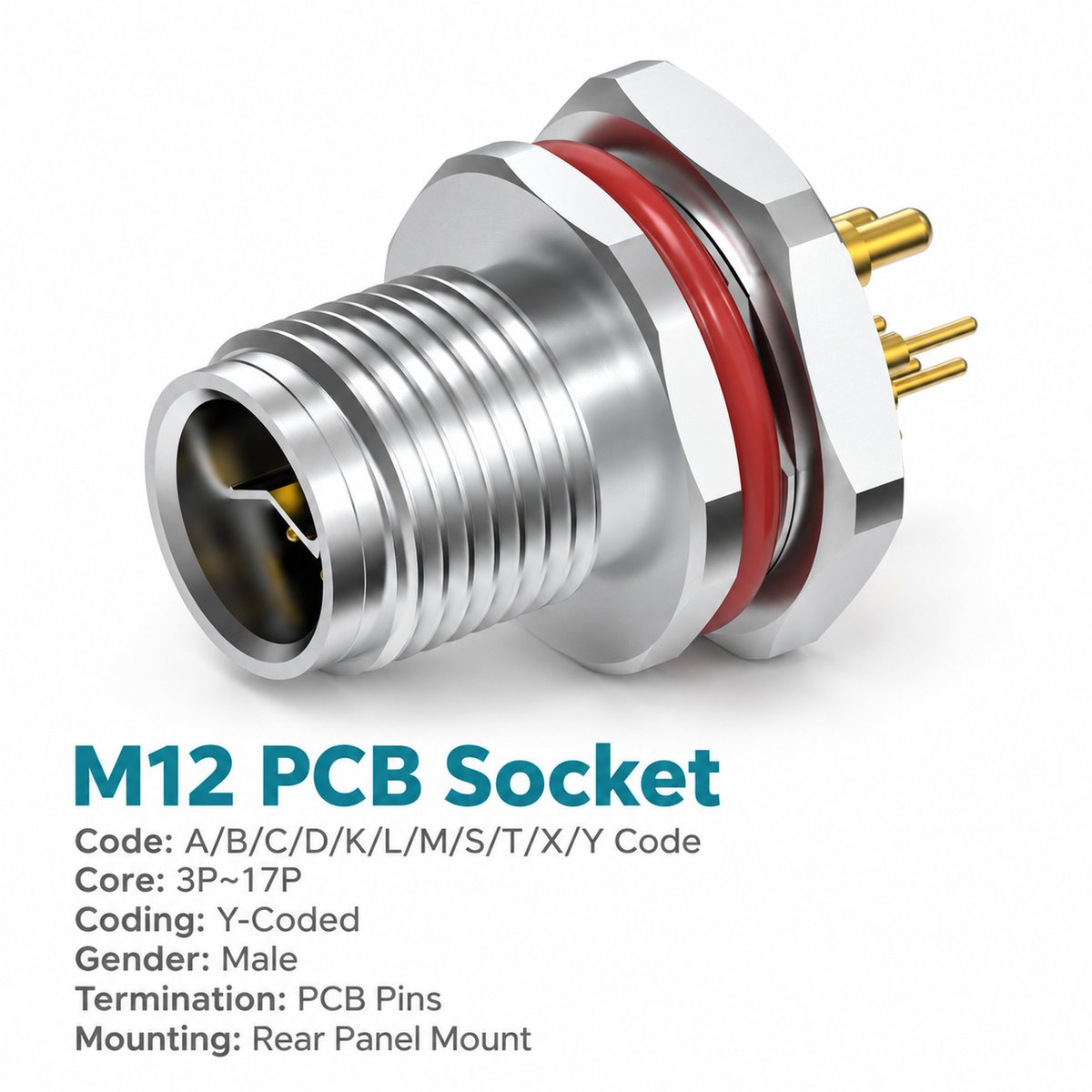

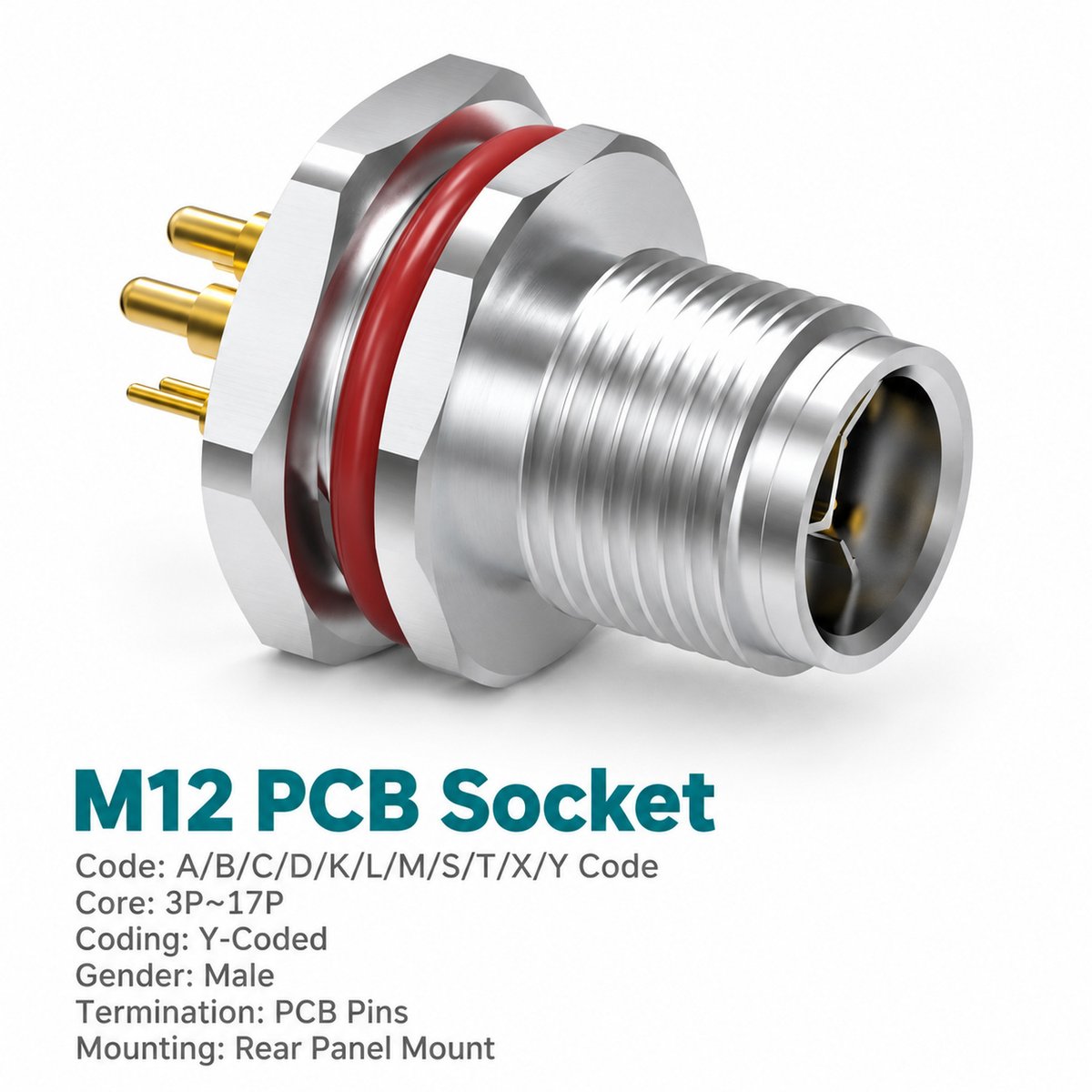

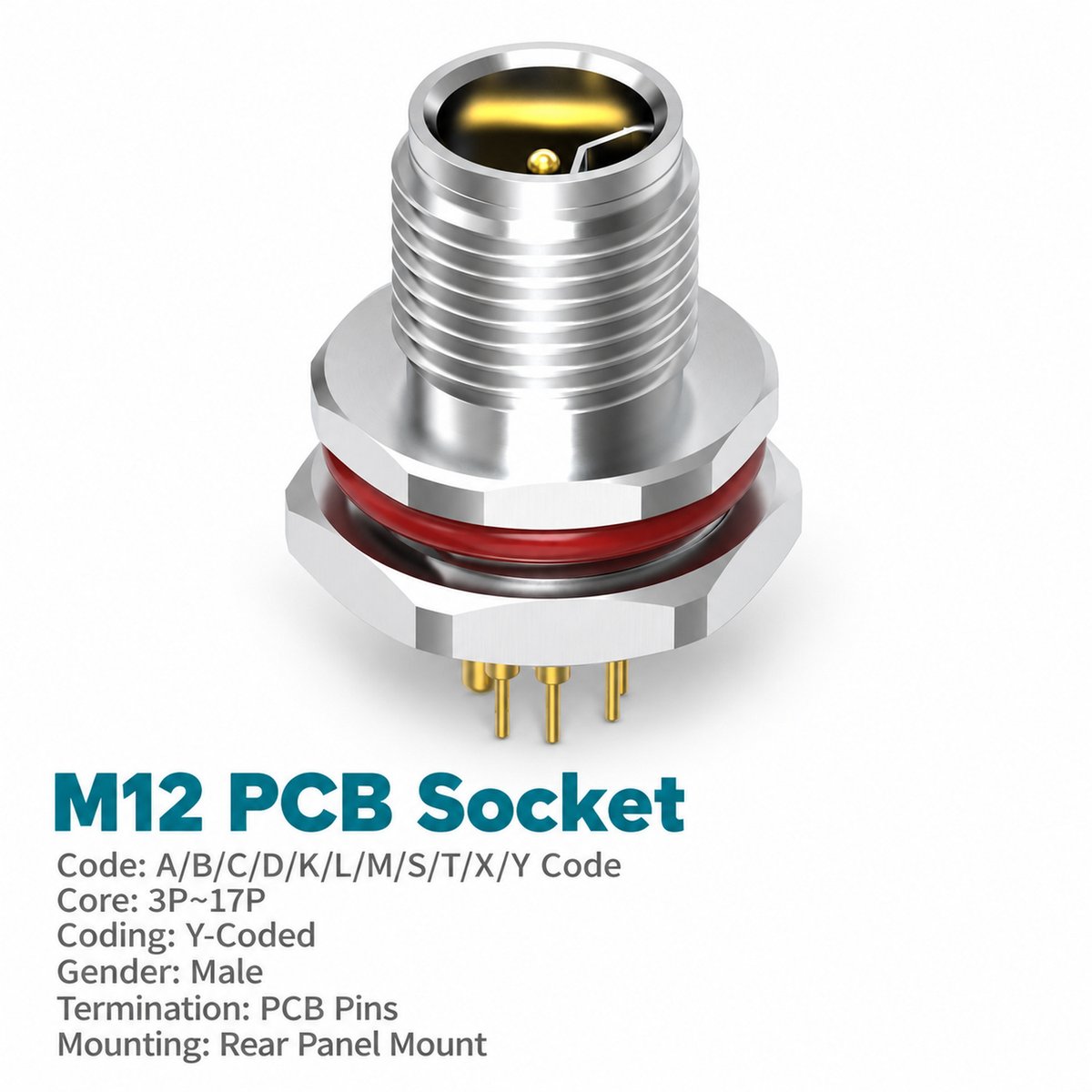

M12 Y-Coded Male Rear Mount PCB Hybrid Connector

Xmost M12 Y-coded male rear mount PCB connector links an external hybrid cable assembly to the equipment’s internal circuit board. Its Y-coded interface combines separate Ethernet signal and power contacts and mates with a matching female connector of the same configuration.

Designed for rear fastened installation, this shielded M12 panel mount connector uses straight contacts for PCB dip soldering. The rear mount outline defines the dimensions needed to check panel clearance and circuit-board placement.

Y3 provides four signal contacts and two power contacts, with a 12 A power-contact rating. Y4 provides four signal contacts and four power contacts, with a 6 A power-contact rating. Both configurations have a 0.5 A signal-contact rating.

Key Features

Combined signal and power connection: One Y-coded hybrid interface for Ethernet and power circuits.
Two contact arrangements: Y3 with 4+2 contacts or Y4 with 4+4 contacts.
Rear fastened construction: For housings designed around a rear mount panel connector.
Straight PCB contacts: Supports direct board insertion and dip soldering.
Shielded interface: Integrates into the equipment’s hybrid cable shielding arrangement.
Separate electrical ratings: Power and signal contacts have different current limits.

Product Dimensions

[Insert the male rear mount outline drawing and corresponding panel cut-out drawing from page 24.]

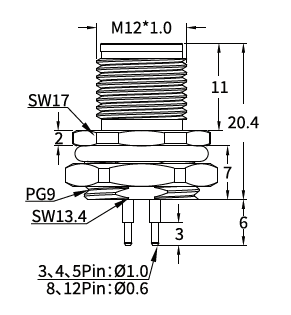

Illustrated PG9 Rear Mount Version — Dimensions in mm

Item	Drawing Value
Mating thread	M12 × 1.0
Panel mounting thread shown	PG9
Body dimension shown, excluding PCB contacts	20.4
Upper axial section	11
Flange section	2
Lower axial section	7
Upper wrench size	SW17
Lower wrench size	SW13.4
Rear contact section	6
Contact tip section	3

The page uses a general outline with contact-diameter notes for other pin counts. Confirm the Y3 or Y4 contact diameters against the selected product drawing.

Needle Arrangement (Front View)

[Insert the Y3 and Y4 male needle arrangement diagrams from page 24.]

Configuration	Signal Contacts	Power Contacts	Total Contacts
Y3	4	2	6
Y4	4	4	8

The diagrams show the male mating-face view. Use the selected arrangement to check the mating female connector and identify the signal and power contacts.

Product Specifications

Parameter	Specification
Product type	M12 Y-coded male rear mount PCB hybrid connector
Mounting	Rear fastened
Function	Ethernet signal and power
PCB contact style	Straight
Termination	PCB dip soldering
Standard listed	IEC 61076-2-113
Rated voltage	50 V AC / 60 V DC
Shielding	Shielded
Mating thread	M12 × 1.0
Panel mounting threads	PG9 / M16 × 1.5
Insulation resistance	≥100 MΩ
Contact resistance	≤5 mΩ
Recommended coupling torque	0.4 N·m
Maximum coupling torque	0.8 N·m
Temperature range, flexible use	−25°C to +80°C
Temperature range, static use	−40°C to +80°C
Protection ratings listed	IP67 / IP68 / IP69K
Pollution degree	3
Insulator materials listed	PA66+GF / TPU+GF

Electrical Ratings by Configuration

Configuration	Contact Arrangement	Power-Contact Current	Signal-Contact Current
Y3	4 signal + 2 power	12 A	0.5 A
Y4	4 signal + 4 power	6 A	0.5 A

Applications

Industrial communication modules: Connects Ethernet signals and power to internal board circuits.
Distributed automation equipment: Provides a combined hybrid cable interface at the enclosure.
Machine control housings: Suits rear fastened assemblies requiring signal and power contacts.
Modular industrial devices: Allows the external hybrid cable to disconnect at one M12 interface.
