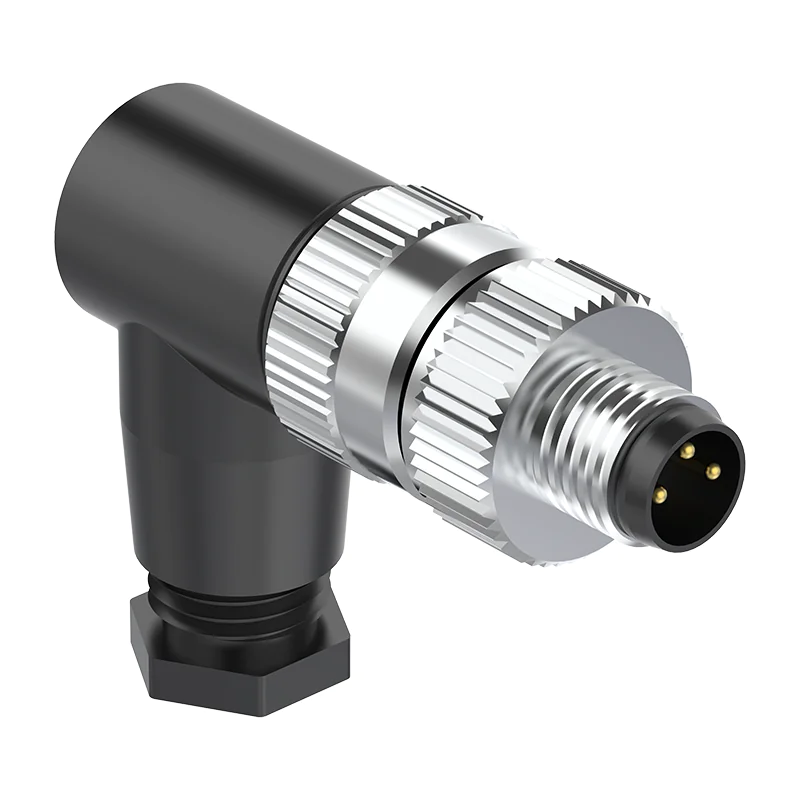

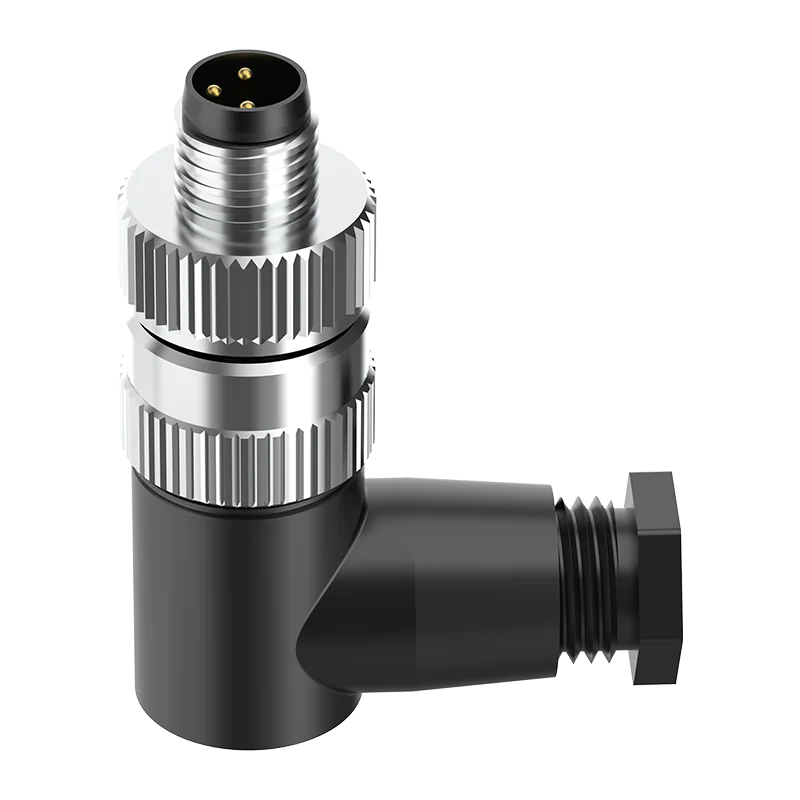

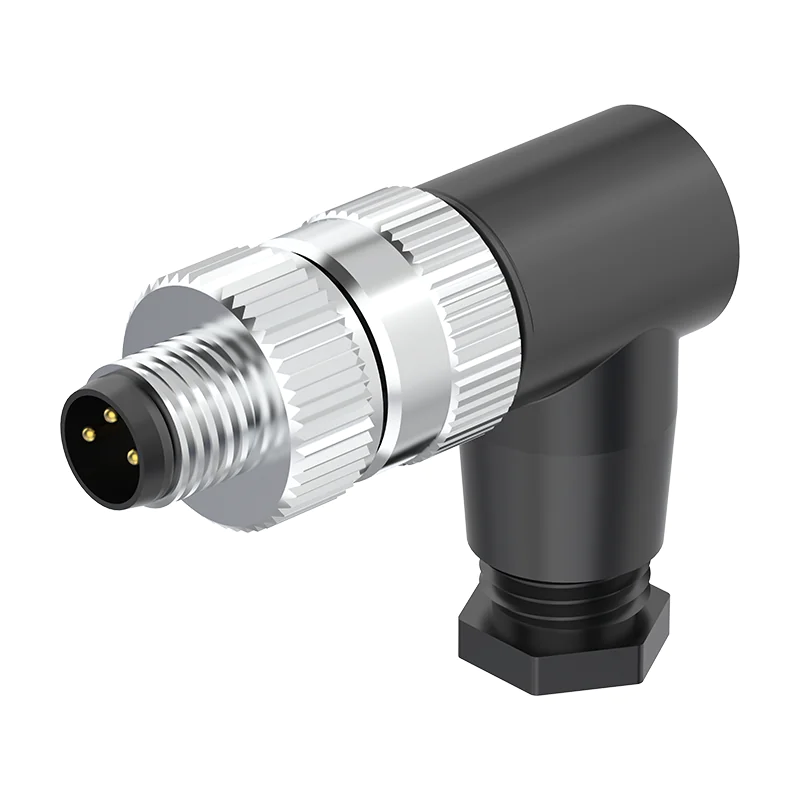

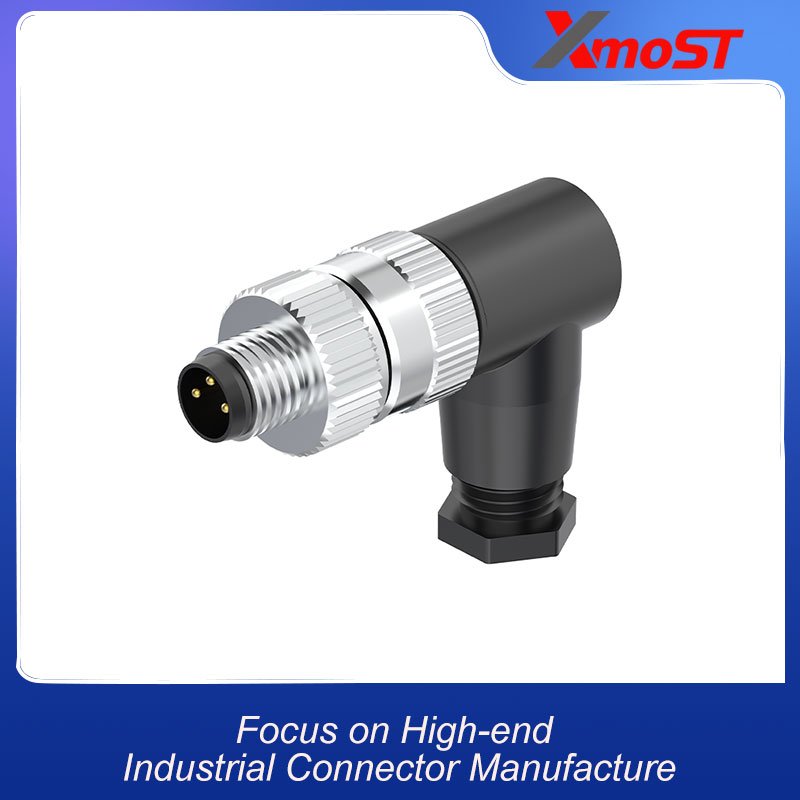

M8 B-Code male right angle is a 3Pin L-shaped connector designed for tight-space industrial applications. This IP67 field attachable plug is ideal for sensor signal connection, robot control cabinets, PLC I/O modules, and factory automation systems in cramped environments. Supports wire 0.25-0.34mm² (AWG24-22), cable φ3.5-5mm. Rated 60V / 3A. Screw locking M8×1.0. Housing: PA+GF. Gold-plated contacts. Compliant with IEC 61076-2-104. Operating temperature -25°C to +80°C (dynamic).
- Screw/Nut Material: Nickel-Plated Brass / Nickel-Plated Zinc Alloy
- Pin Material: Gold-Plated Phosphor Bronze / Gold-Plated Brass
- Sealing Material: FKM / Silicone / Epoxy
- Outer Housing Material: PA+GF
