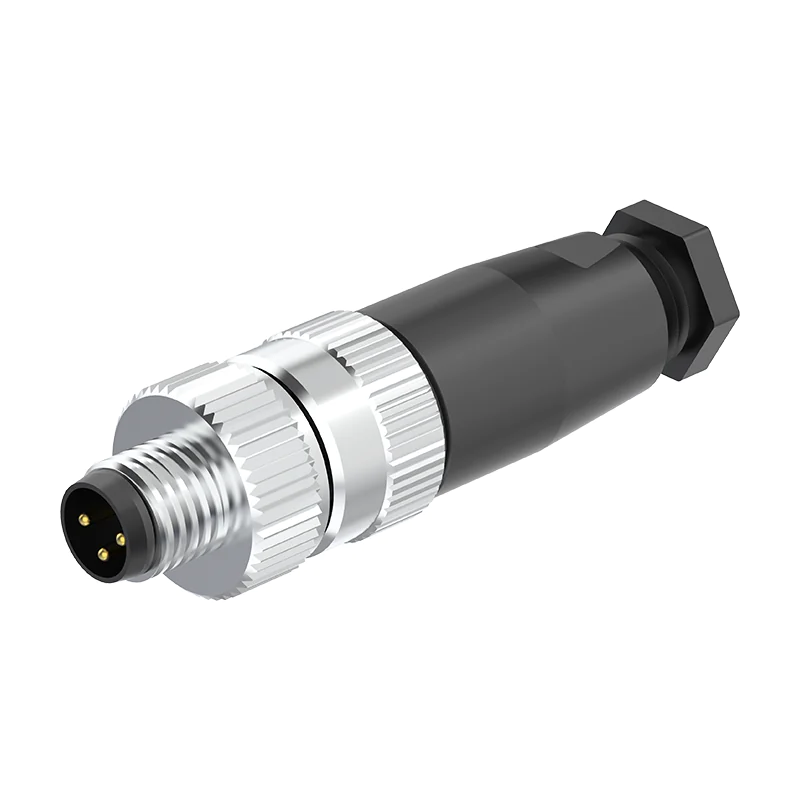

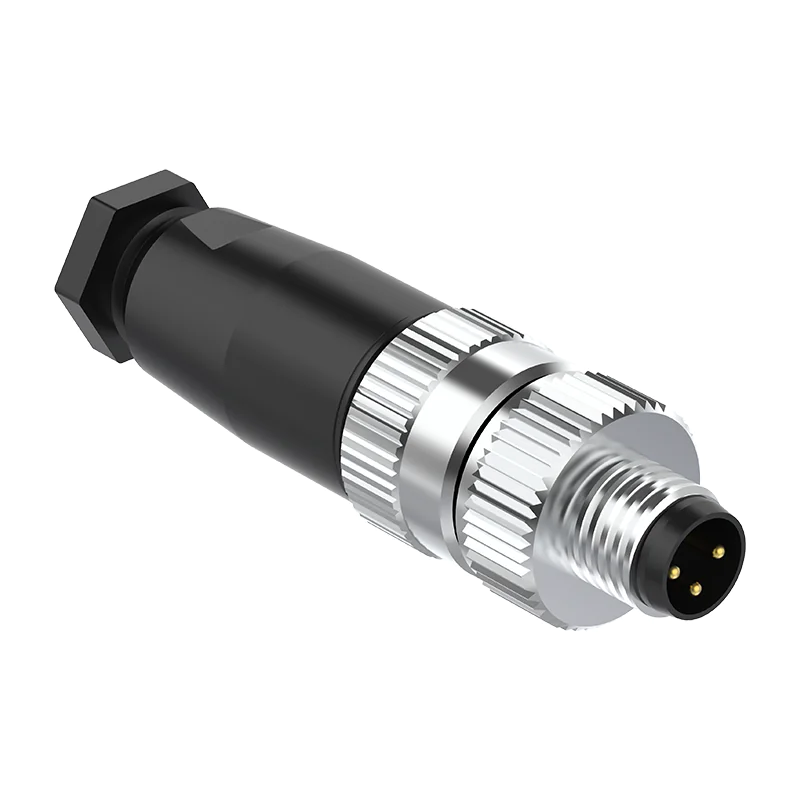

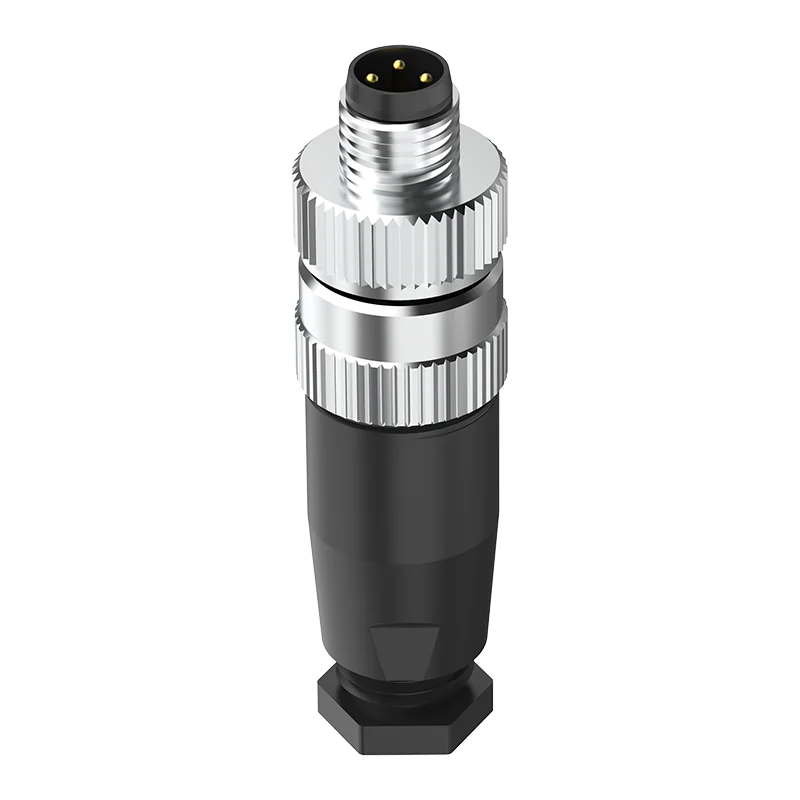

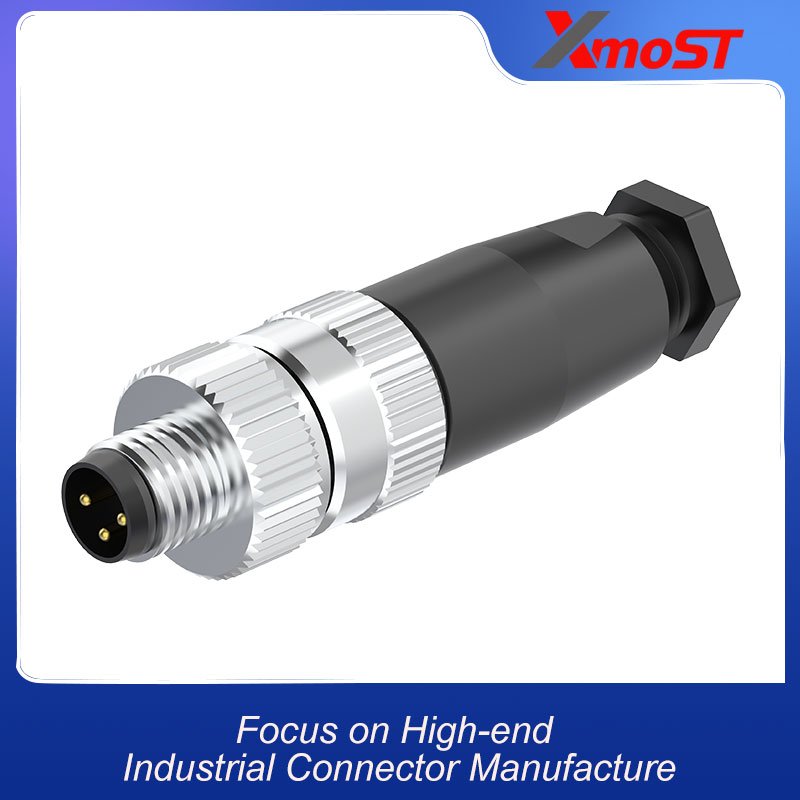

M8 A‑Code male straight plug is a 3Pin solder type connector designed for reliable field assembly. This IP67 automation plastic plug is ideal for sensors, actuators, PLC I/O, and industrial automation. The M8 field solderable plug supports wire gauges 0.14 mm² to 0.25 mm² (AWG26‑24) and cable diameter φ3.5‑5 mm. Non‑shielded, rated 60 V / 3 A. Screw locking M8×1.0. Housing: PA+GF. Gold‑plated contacts. Compliant with IEC 61076‑2‑104. Operating temperature -40 °C to +80 °C.
- Pollution Degree: 3
- Insulation Material: PA+GF / TPU+GF
- Screw/Nut Material: Nickel-Plated Brass / Nickel-Plated Zinc Alloy
- Pin Material: Gold-Plated Phosphor Bronze / Gold-Plated Brass
- Sealing Material: FKM / Silicone / Epoxy
- Housing Material: PA+GF
