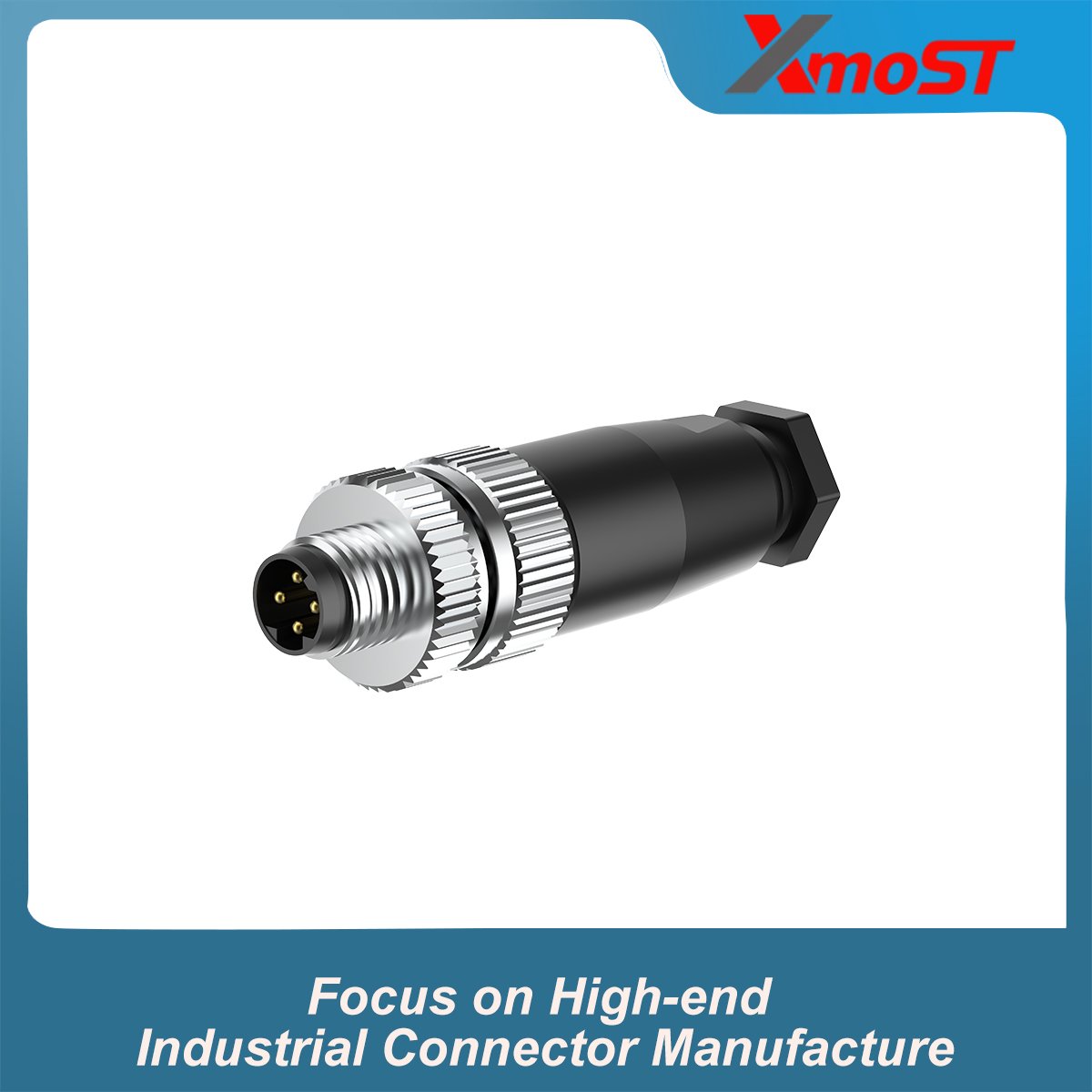

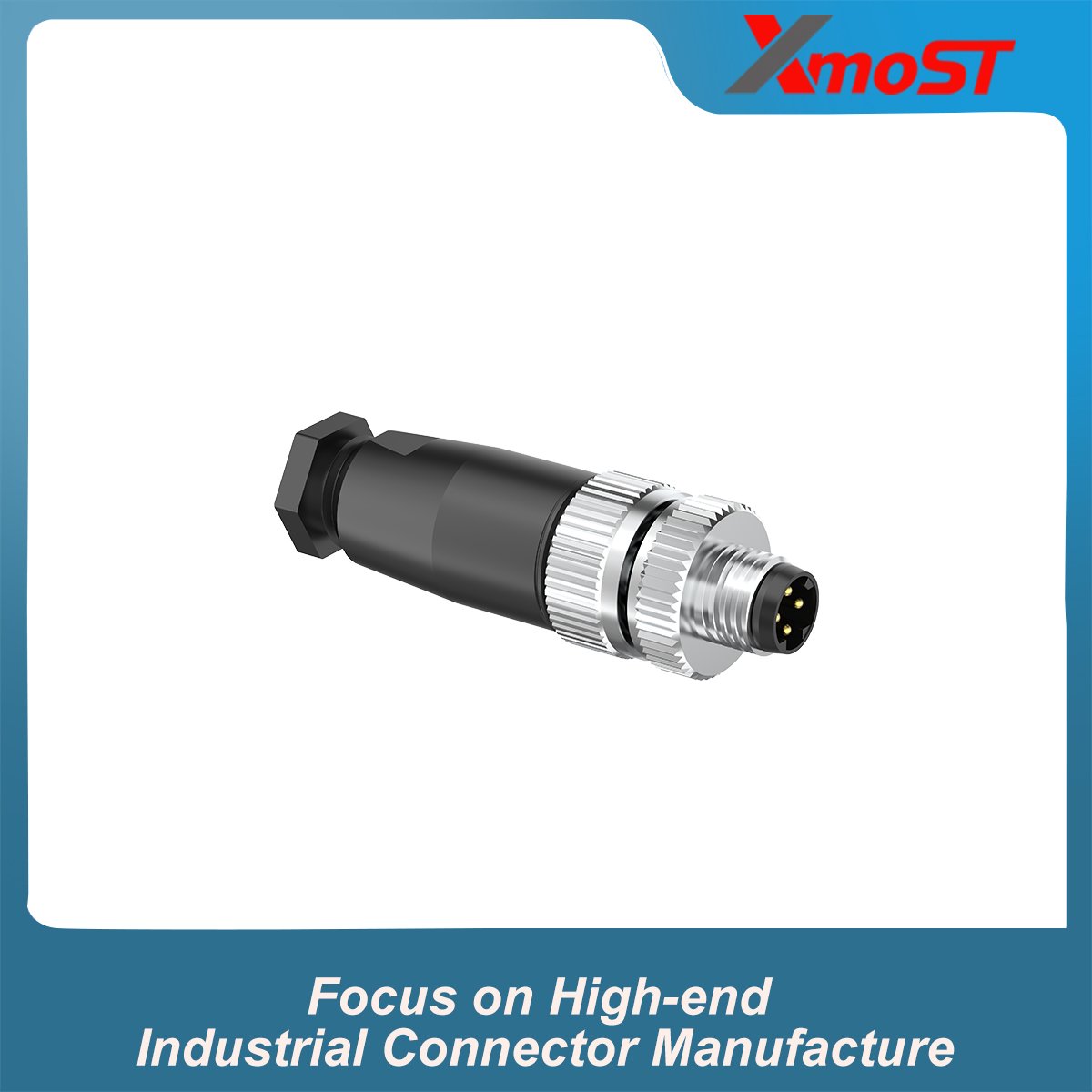

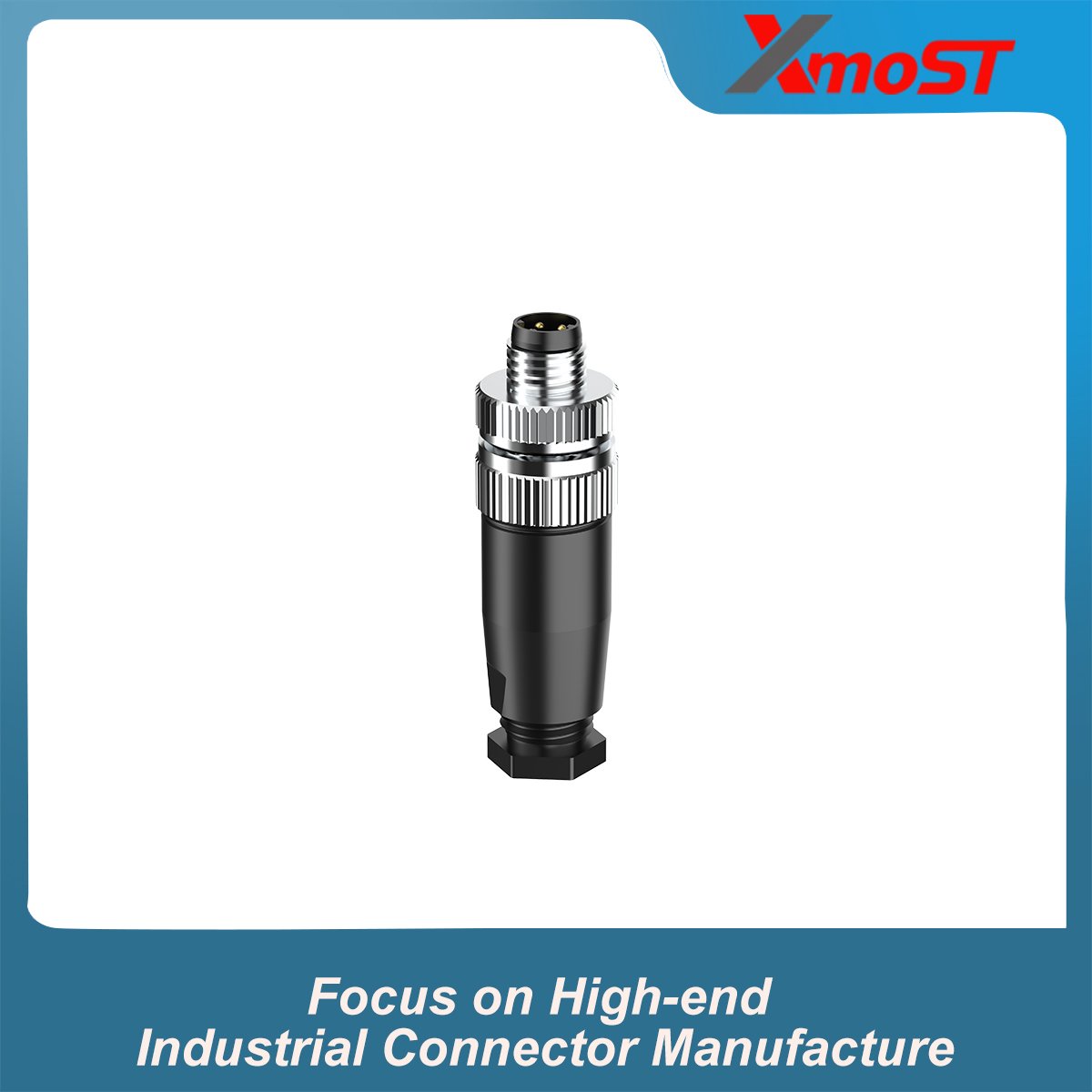

M8 D-Code 4-Pin Male Plastic Straight Assembled Connector is a compact M8 connector for solder-type cable termination and custom cable assembly. Its straight configuration keeps the cable entry aligned with the connector axis, providing a practical layout for industrial equipment and wiring applications.
Designed with a 4-pin D-Code male interface, this M8 connector uses an M8 × 1.0 screw locking system and supports a rated current of 4 A at 60 V. The assembled construction allows the cable to be terminated directly to the contacts, making it suitable for custom cable lengths and wiring configurations.
The plastic housing provides a compact alternative to metal-bodied M8 connectors for applications where a lightweight assembled connector is preferred.
Key Features
- M8 D-Code 4-Pin Male Connector
- Straight assembled configuration
- Plastic housing
- Solder-type termination
- M8 × 1.0 screw locking
- 4 A / 60 V electrical rating
- Compact 4-pin D-Code interface
- IP67 protection
- Suitable for custom cable assemblies
Dimensions

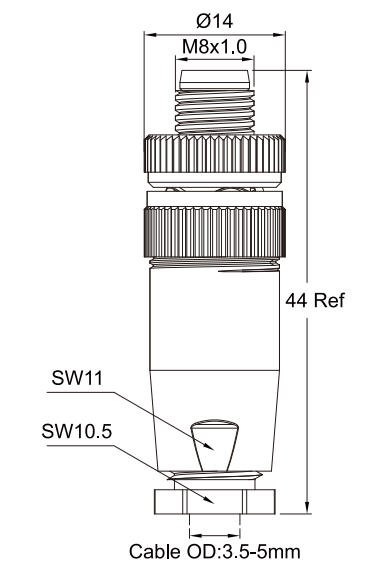

The connector features a straight plastic housing with an M8 × 1.0 threaded coupling.Please refer to the dimensional drawing for detailed connector and assembly dimensions.
4-Pin D-Code Male Configuration
4-pin D-Code male interface provides the plug-side connection for a compatible D-Code female connector. The straight housing keeps the cable entry in line with the mating axis, making it suitable for standard cable routing and equipment wiring.
D-Code configuration distinguishes this connector from the A-Code and B-Code M8 products in the range, allowing customers to select the appropriate coding and contact arrangement for their application.
Solder-Type Assembly
This M8 D-Code assembled connector uses solder termination for connecting individual conductors to the contacts. The assembly method allows the connector to be incorporated into custom cable assemblies without relying on a permanently molded cable.
The specified 0.34 mm² (AWG22) wire size provides the cable connection specification for this 4-pin D-Code configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | D-Code |
| Contact Configuration | 4 Pin |
| Connector Type | Male Straight Assembled Connector |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 4 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded / EMI-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wiring Method | Soldering |
| Wire Gauge | 0.34 mm² (AWG22) |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| IP Rating | IP67 |
| Pollution Degree | 3 |
Applications
- Industrial Automation
- Industrial Sensors
- Control Systems
- Measurement Equipment
- Factory Equipment
- Industrial Machinery
- Custom Cable Assemblies
