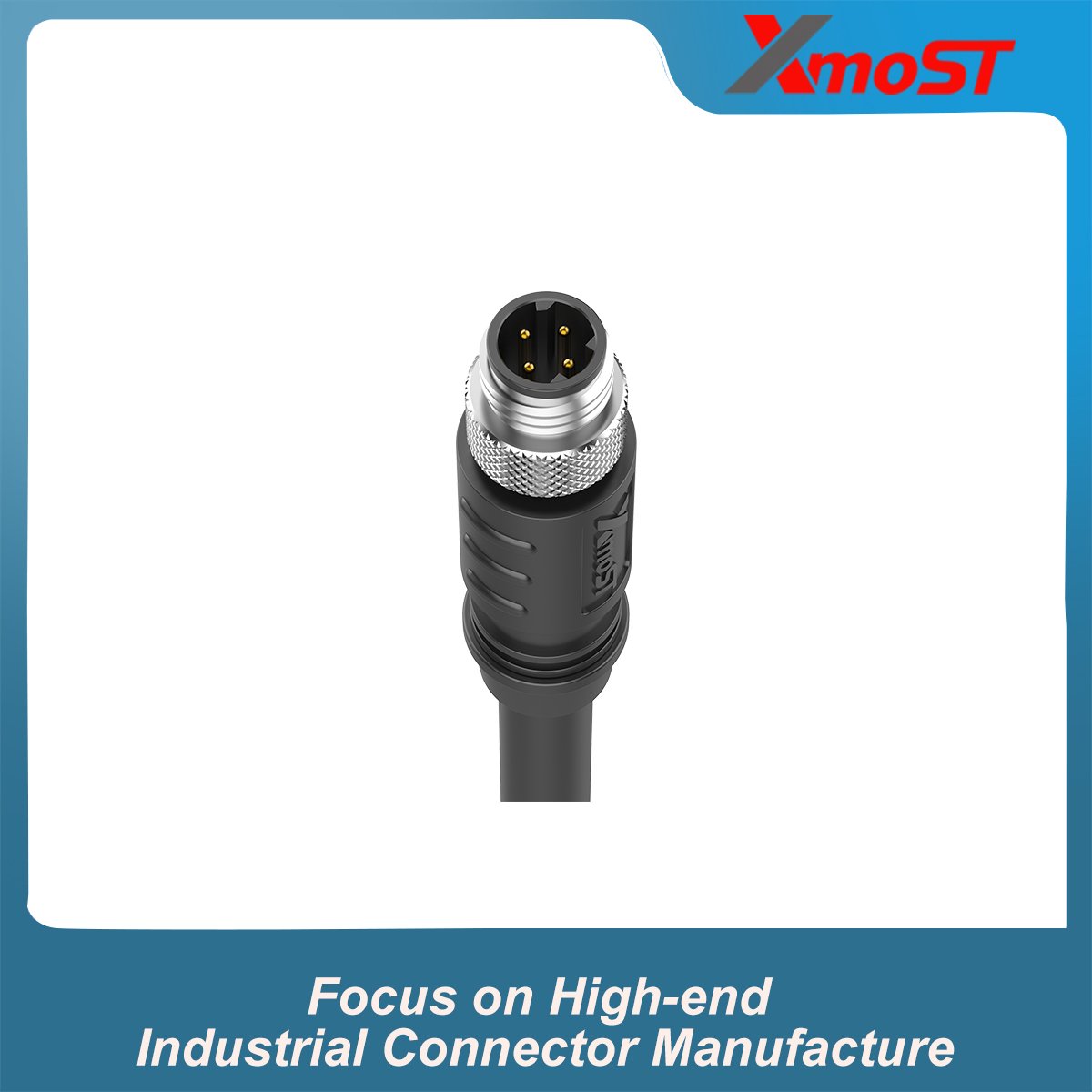

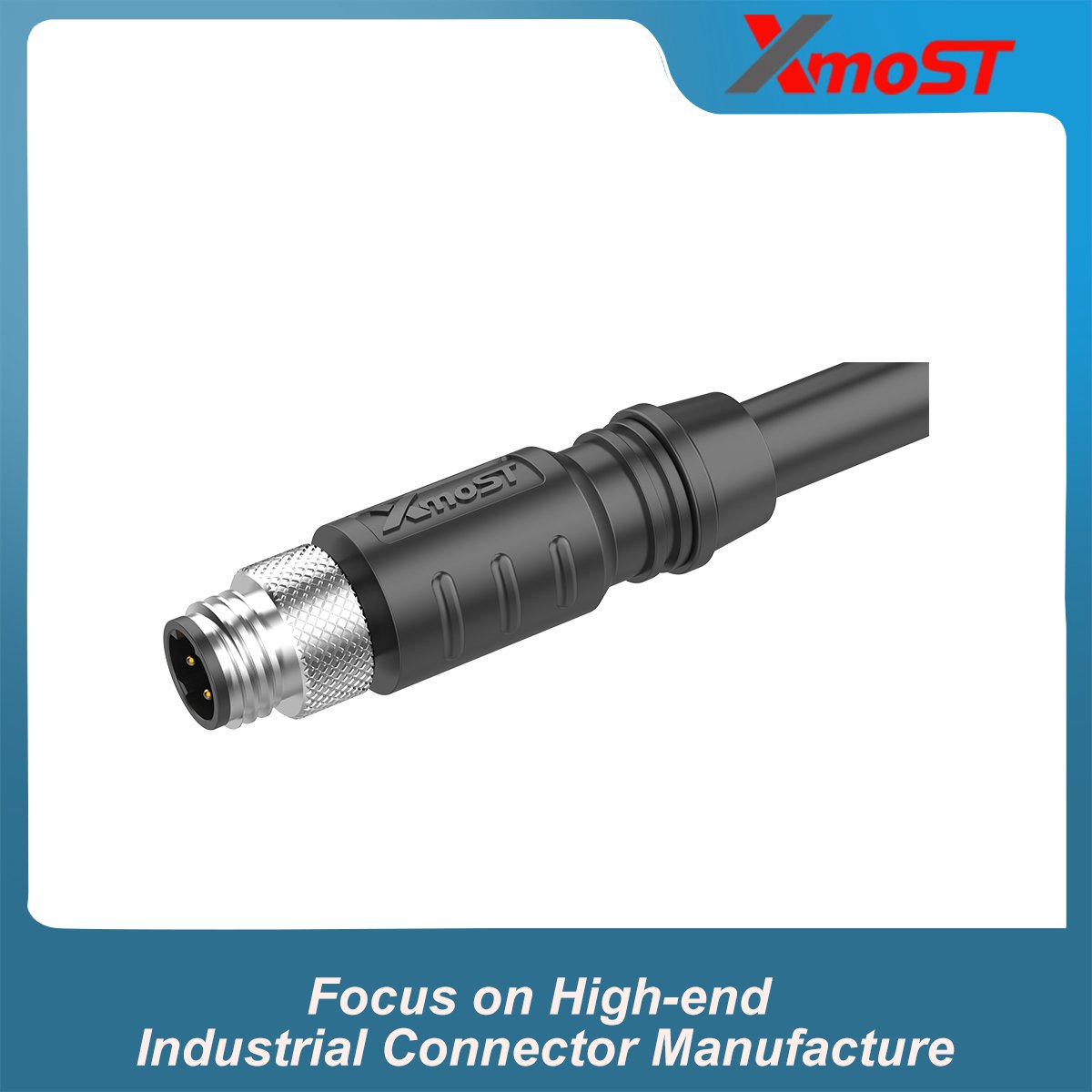

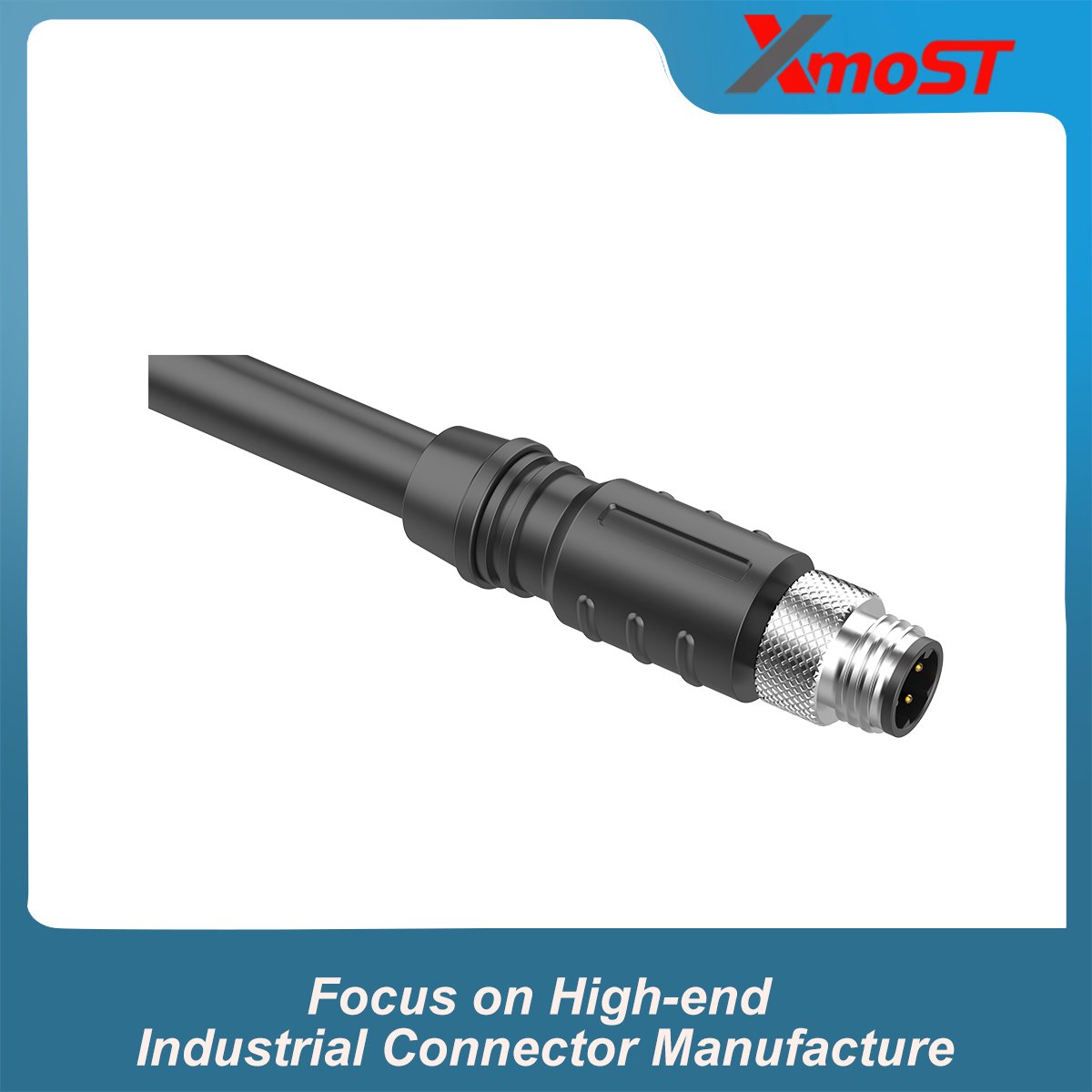

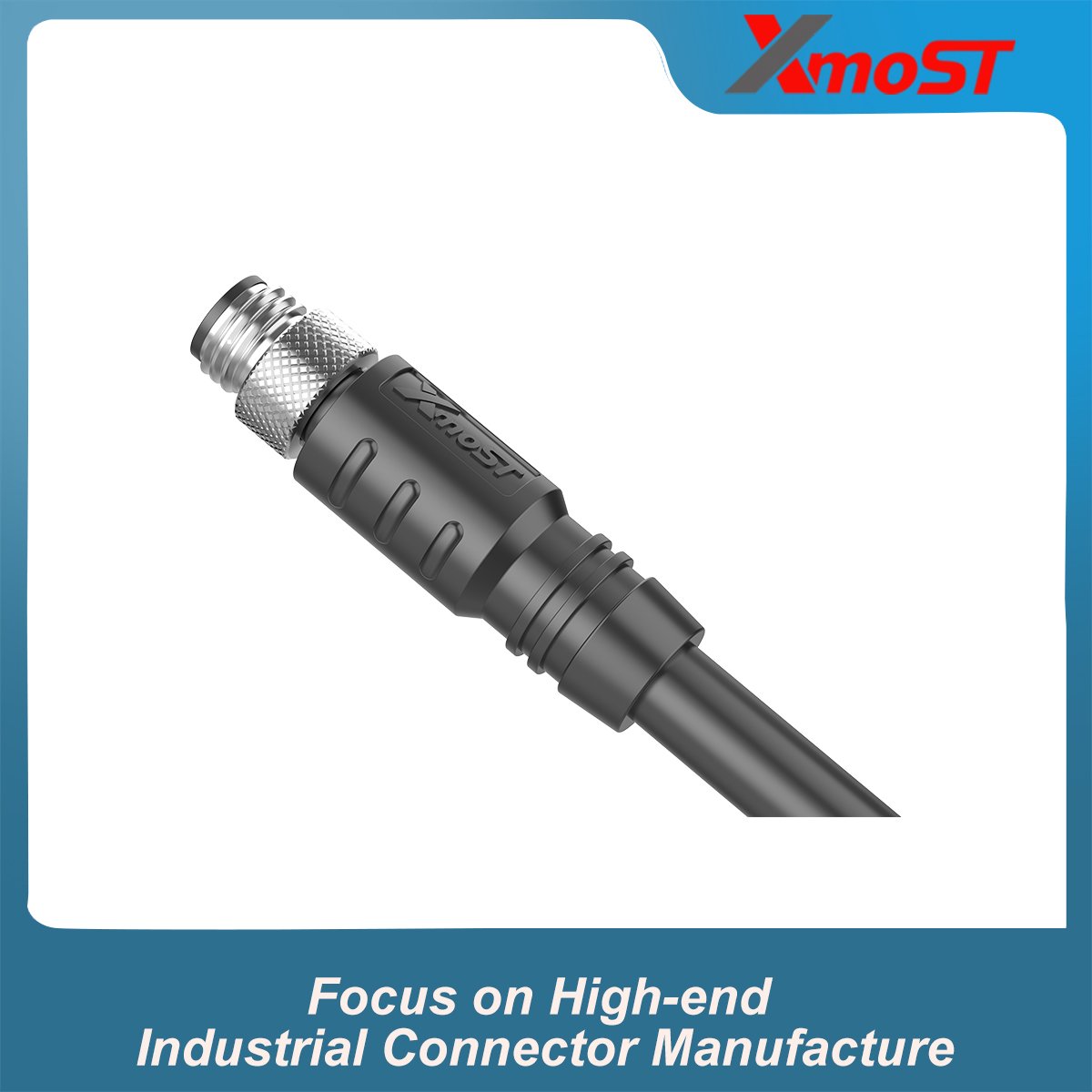

M8 D-Code 4-Pin Male Straight Molded Connector is a shielded industrial connector with a single-ended pre-molded cable and an M8 × 1.0 threaded coupling system. Designed for industrial wiring and sensor connections, it provides a compact straight configuration with IP67 protection.
The connector features a 4-pin D-Code male contact configuration, solder termination, EMI shielding, and a rated current of 4 A at 60 V. The integrated molded cable provides a clean, compact connection for industrial equipment and control systems.
Key Features
- M8 D-Code 4-Pin Male Connector
- Straight molded connector design
- Single-ended pre-molded cable
- Shielded / EMI-Shielded construction
- M8 × 1.0 threaded coupling
- Solder termination
- Rated current: 4 A
- Rated voltage: 60 V
- IP67 protection
Dimensions
Connector features a compact M8 housing with a straight cable configuration, M8 × 1.0 threaded coupling, and an integrated pre-molded cable connection.

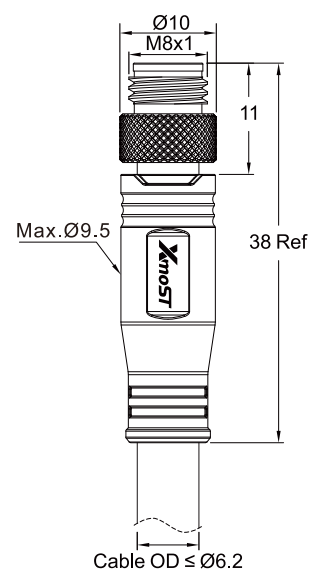

The cable connection is overmolded at the rear of the connector for an integrated cable-to-connector assembly. Please refer to the product drawing for detailed dimensions and mounting information.
Contact Configuration
Connector uses a 4-pin D-Code male contact configuration with a straight cable exit. The D-Code pin arrangement is designed for reliable signal connections in compact M8 industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | D-Code |
| Contact Configuration | 4 Pin |
| Connector Type | Male Straight Molded Connector |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 4 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded / EMI-Shielded |
| Locking System | M8 × 1.0 Threaded |
| Recommended Torque | 0.2 Nm |
| Maximum Torque | 0.4 Nm |
| Termination | Solder |
| Cable Configuration | Single-Ended Pre-Molded Cable |
| Wire Gauge | 0.34 mm² (AWG22) |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| Protection Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Nickel-Plated Brass / Nickel-Plated Zinc Alloy |
| Contact Material | Phosphor Bronze / Gold-Plated Brass |
| Sealing Material | FKM / Silicone / Epoxy |
| Cable Jacket | TPU / PVC |
Applications
- Industrial Automation
- Industrial Sensors
- Control Systems
- Factory Equipment
- Measurement Equipment
- Industrial Machinery
- Industrial Wiring
