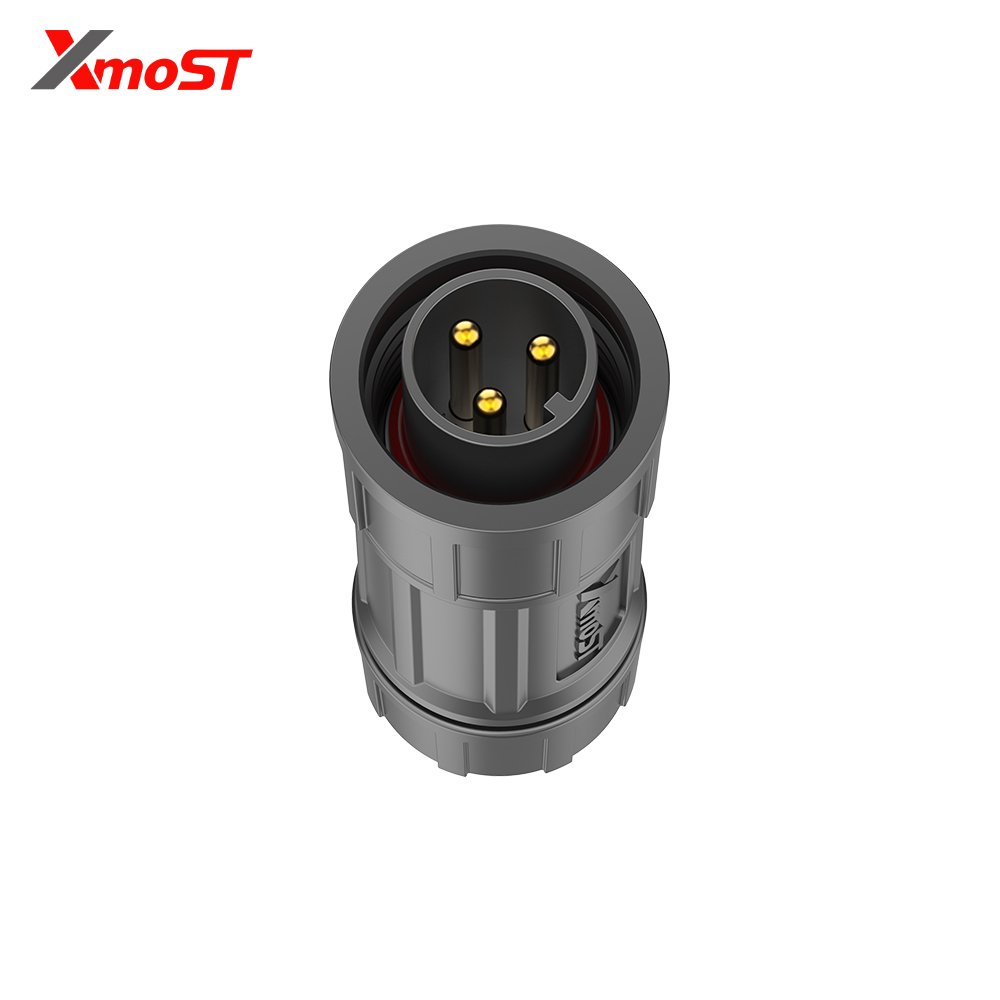

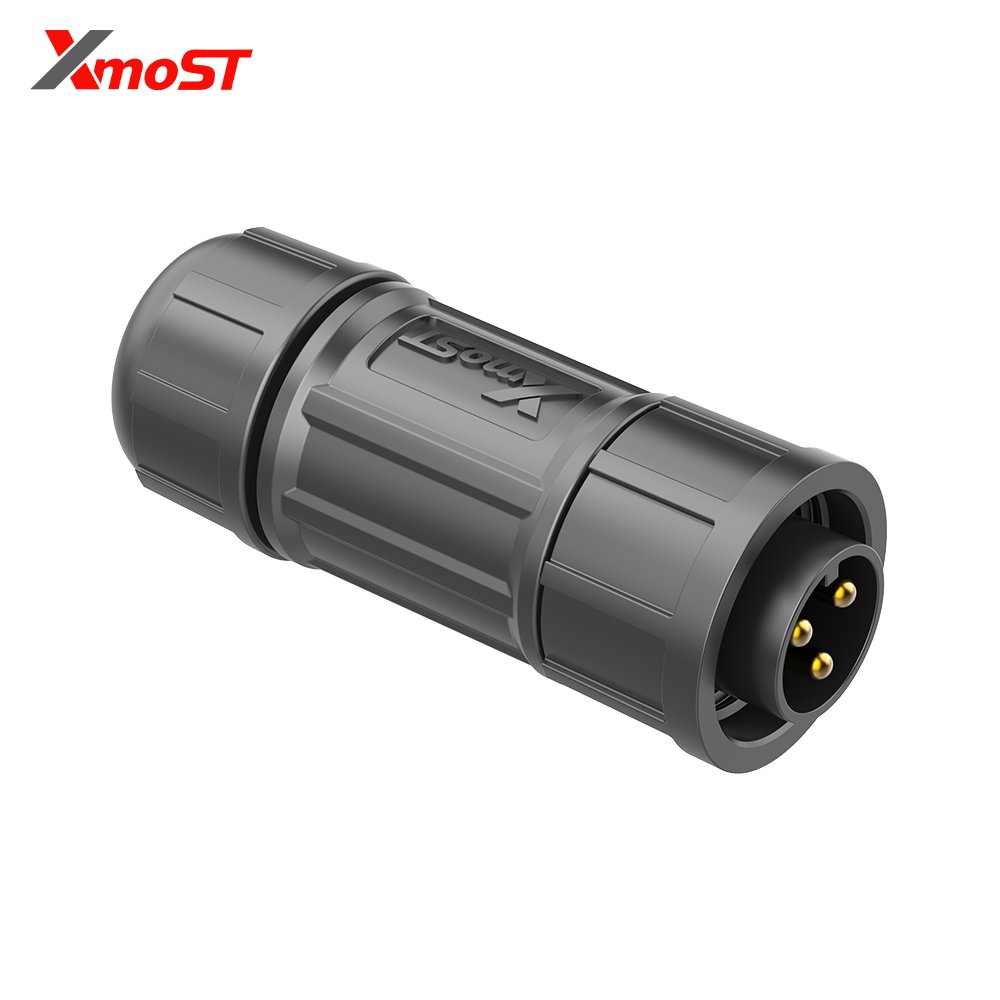

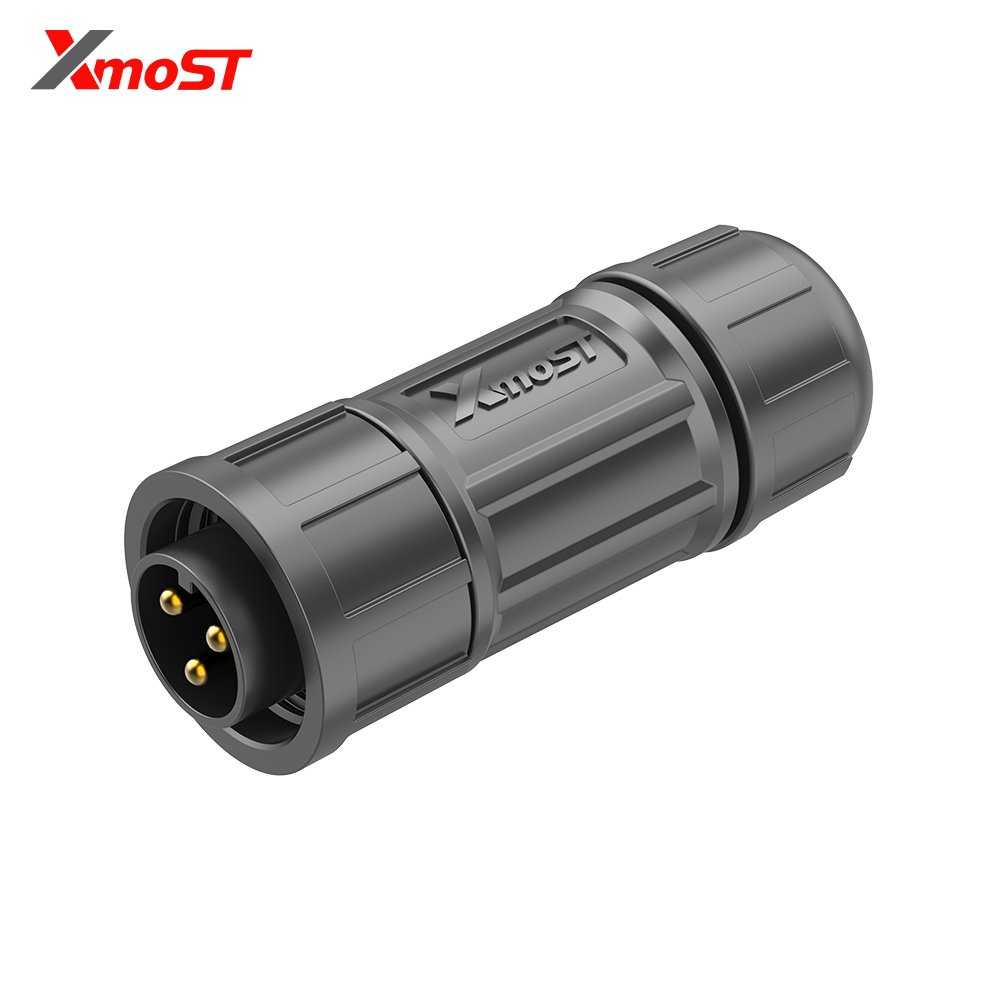

M12 3-Pin Male Assembly Plug – Threaded IP67 On-Site Wiring

M12 3-Pin Male Assembly Straight Plug – Threaded Coupling, On-Site Wiring, Vibration-Proof for Factory Automation

Contacts (Pin Count): 3-Pin
Needle Arrangement: Male (Front View)
Rated Voltage: 100V AC
Rated Current: 8A
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
Wire Gauge Range: ≤0.75mm² (20 AWG)
Compatible Cable O.D.: 3 – 6.5mm
IP Rating: IP67
Mating Cycles: ≥3,000 Cycles
Operating Temperature: -40°C ~ +105°C
Shell Material: PA66/Nylon
Flame Retardant Grade: UL94 V-0
Contact Material: Brass/Phosphor Bronze Gold-plated
Sealing Material: Epoxy/Silicone
Connection Method: Threaded-Mating Type
Wiring Method: Solder

Threaded Coupling – Secure, Vibration-Proof Connections for High-Shock Environments

The threaded locking mechanism ensures a secure, anti-vibration connection that stays locked under mechanical stress. Unlike quick-lock or push-pull connectors that may loosen over time, this M12 male assembly plug is built for high-vibration environments – conveyor systems, robotic arms, packaging machinery, and heavy equipment where connection integrity is critical. 12mm standard M12 thread provides reliable, maintenance-free performance in demanding industrial conditions.

On-Site Assembly – No Pre-Molding, Full Flexibility for Custom Cable Lengths

Designed for field installation, this M12 male assembly plug lets you solder contacts to your cable and assemble the connector on-site – no factory pre-molding required. Cut cables to exact length for control cabinets, junction boxes, and panel installations. Eliminate excess cable bundling, reduce cabinet clutter, and stop waiting for custom pre-molded cable assemblies. Perfect for PLC I/O connections, sensor distribution boxes, and actuator interfaces.

IP67 Waterproof – Built for Factory Floors, Outdoor Sensors & Washdown Areas

Rated IP67 waterproof and dust-tight, this connector withstands moisture, washdowns, oils, and dust. PA66 nylon housing resists corrosion and mechanical stress. Operating -40°C to +105°C – suitable for cold storage, hot production lines, outdoor sensors, food processing equipment, and everything in between. Complies with IEC 61076-2-101 international standard for interchangeability and compatibility.

Gold-Plated Contacts – Reliable Signal Transmission with Low Contact Resistance

Brass/phosphor bronze contacts with gold plating ensure contact resistance ≤5mΩ and insulation resistance ≥100MΩ. Supports up to 0.75mm² (20 AWG) wire with cable O.D. 3-6.5mm. Solder termination provides a permanent, low-loss connection that won’t loosen over time. Compatible with PROFINET, EtherCAT, and CANopen fieldbus systems for distributed I/O and actuator/sensor networks.

Repair, Retrofit & Replacement – Minimize Downtime, Reuse Existing Cables

When sensors or actuators fail, replace only the connector – not the entire cable run. Maintenance crews can solder on a new plug in minutes, getting production back online fast. Perfect for field retrofits, machinery upgrades, and temporary test setups where custom pre-molded cables aren’t practical. Saves time, saves material cost, reduces downtime. Widely used in industrial sensors, automation equipment, packaging machinery, and electric vehicle applications.
