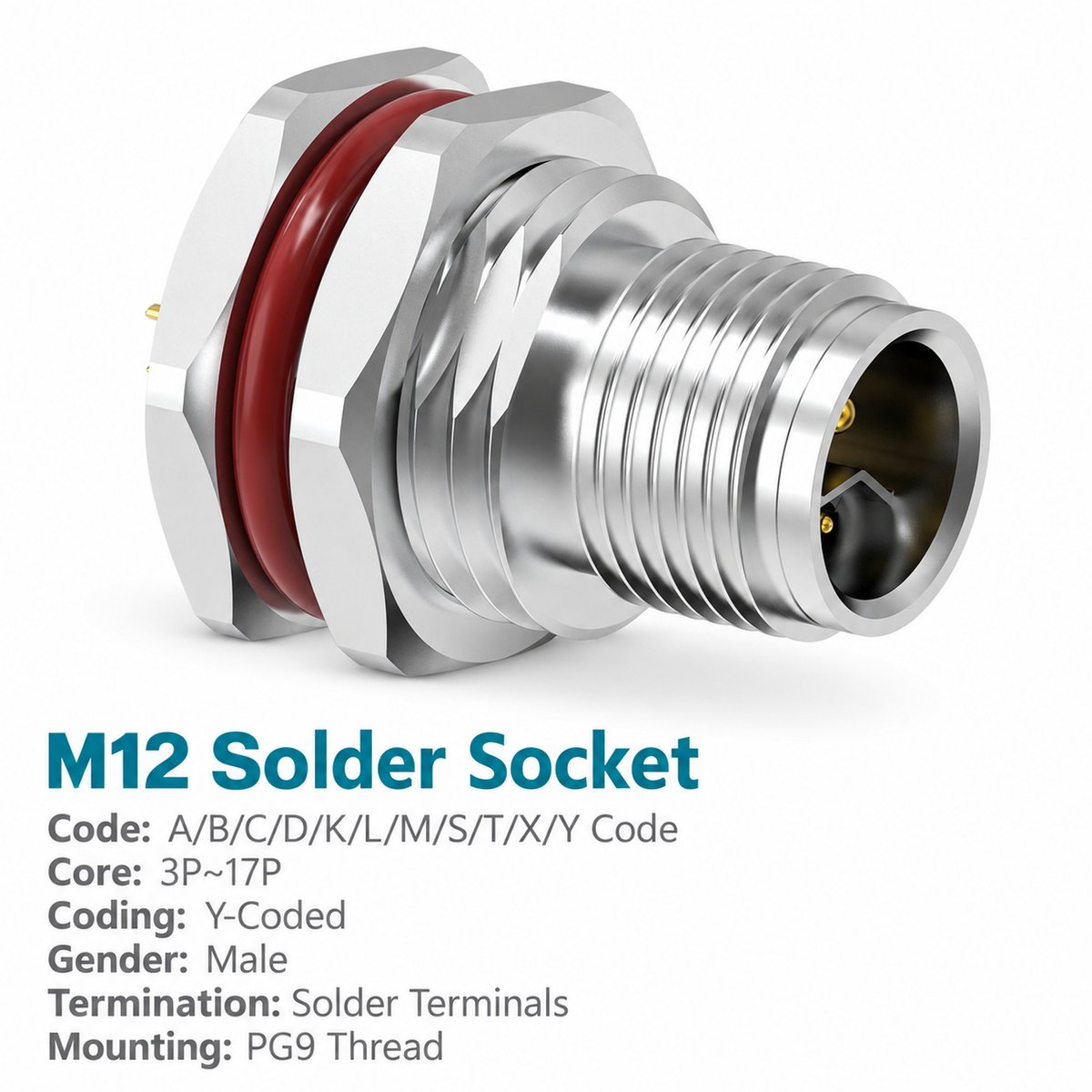

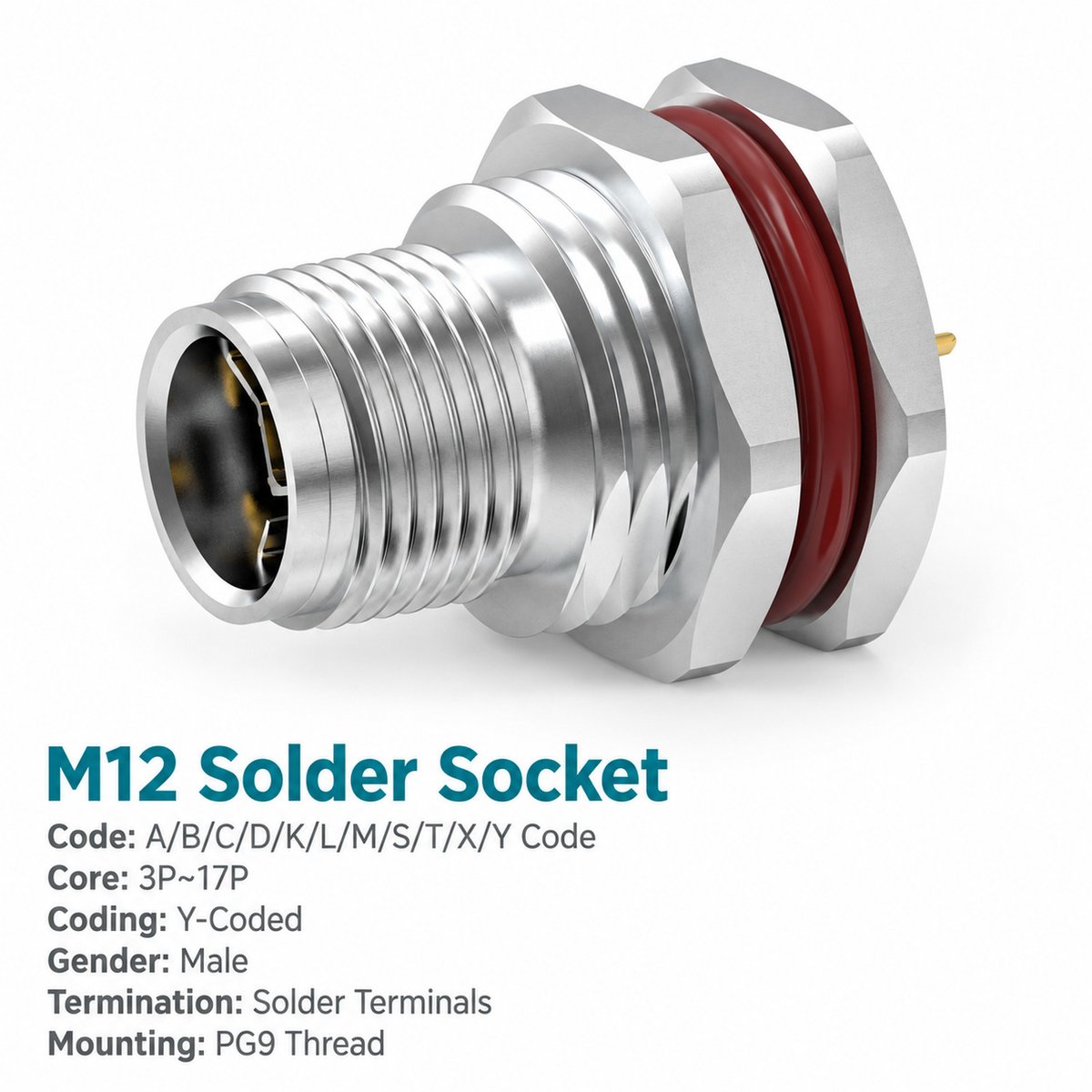

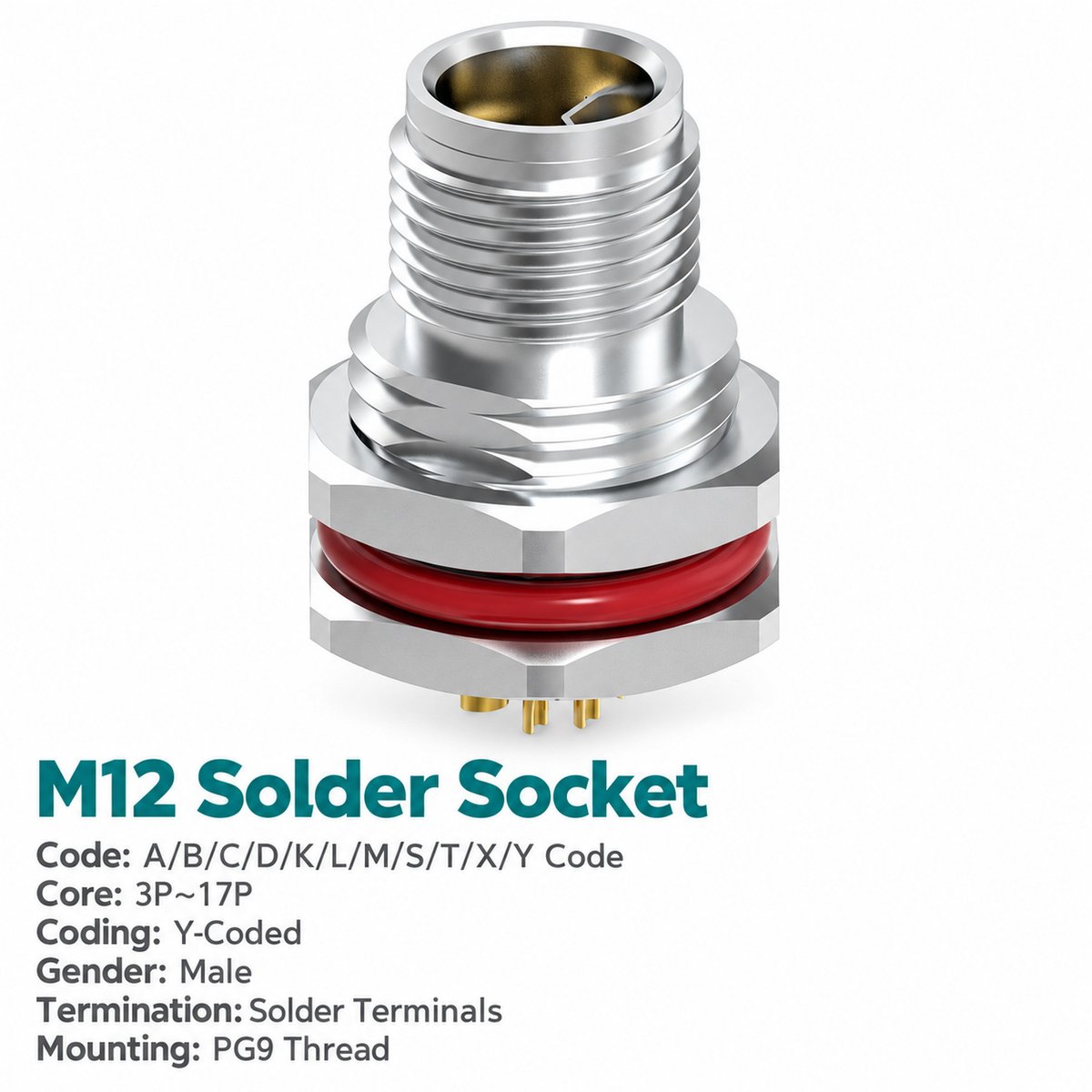

M12 Y-coded male front mount socket provides a single panel interface for separate Ethernet signal and power circuits. It connects a compatible external Y-coded female hybrid cable connector to wiring inside the equipment enclosure.
Select the front fastened version when it matches the panel installation design. The unwired socket allows solder termination during assembly, while the 0.3 m pre-wired version provides leads for routing to internal signal and power connection points.
Choose the configuration by both contact count and electrical requirements. Y3 has six contacts in total and a 12 A power-contact rating. Y4 has eight contacts in total and a 6 A power-contact rating. Signal contacts are rated at 0.5 A in both versions.
Key Features
- Combined Ethernet and power interface: Routes separate signal and power circuits through one M12 panel socket.
- Y-coded male connection: Mates with a compatible female connector of the matching Y3 or Y4 arrangement.
- Y3 configuration: Four signal contacts plus two power contacts.
- Y4 configuration: Four signal contacts plus four power contacts.
- Separate current ratings: Select the correct rating for power and signal contacts.
- Shielded construction: As specified for this catalogue version.
- Solder termination: Available unwired or with 0.3 m pre-wired leads.
- Front fastened mounting: PG9 and M16 × 1.5 panel mounting options.

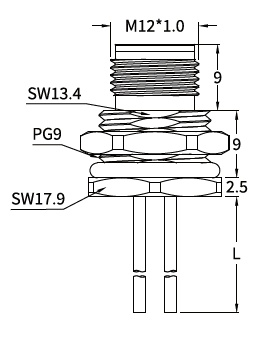

Product Dimensions
[Insert the front mount male socket drawing and panel cut-out drawing here.]
Illustrated PG9 Version — Dimensions in mm
| Item to Check | Drawing Value |
|---|---|
| Mating thread | M12 × 1.0 |
| Panel mounting thread | PG9 |
| Upper wrench size | SW13.4 |
| Mounting nut wrench size | SW17.9 |
| Upper axial section shown | 9 |
| Middle axial section shown | 9 |
| Lower axial section shown | 2.5 |
| Lead length | L; according to ordered version |
The mating thread connects to the external cable connector. The panel mounting thread secures the socket to the enclosure. Use the cut-out drawing for the selected mounting version.
Needle Arrangement (Front View)
[Insert the Y3 and Y4 male contact arrangement screenshot from page 24 here.]
| Configuration | Signal Contacts | Power Contacts | Total Contacts |
|---|---|---|---|
| Y3 | 4 | 2 | 6 |
| Y4 | 4 | 4 | 8 |
The diagrams show the mating-face view. Match the complete arrangement to the external female connector and equipment wiring specification.
Product Specifications
| Parameter | Specification |
|---|---|
| Product type | M12 Y-coded male front mount hybrid socket |
| Mounting | Front fastened |
| Function | Ethernet signal and power |
| Termination | Solder |
| Wiring options | Unwired / 0.3 m pre-wired leads |
| Standard listed | IEC 61076-2-113 |
| Rated voltage | 50 V AC / 60 V DC |
| Shielding | Shielded |
| Coupling thread | M12 × 1.0 |
| Panel mounting thread options | PG9 / M16 × 1.5 |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤5 mΩ |
| Recommended coupling torque | 0.4 N·m |
| Maximum coupling torque | 0.8 N·m |
| Temperature range, flexible use | −25°C to +80°C |
| Temperature range, static use | −40°C to +80°C |
| Protection ratings listed | IP67 / IP68 / IP69K |
| Pollution degree | 3 |
| Insulator materials listed | PA66+GF / TPU+GF |
Ratings and Wire Sizes by Configuration
| Parameter | Y3 | Y4 |
|---|---|---|
| Contact arrangement | 4 signal + 2 power | 4 signal + 4 power |
| Power-contact rated current | 12 A | 6 A |
| Signal-contact rated current | 0.5 A | 0.5 A |
| Power wire size listed | 2 × 1.5 mm² / AWG16 | 4 × 0.5 mm² / AWG20 |
| Signal wire size listed | 4 × 0.14 mm² / AWG26 | 4 × 0.14 mm² / AWG26 |
The power-contact current rating does not apply to the signal contacts.
Applications
This M12 Y-coded front mount hybrid connector can be considered for:
- Ethernet-enabled equipment: Bringing signal and power wiring through one panel interface.
- Automation modules: Connecting an external hybrid cable to internal circuits.
- Modular machinery: Providing a detachable signal-and-power connection at the housing.
- Equipment with limited panel space: Combining the specified circuits in one receptacle.
Confirm network performance, power loading and shield connection requirements for the complete assembly.
7. Wiring and Lead Options
[Insert the wire colour and pin assignment screenshot from page 24 here.]
| Pin | Y3 Wire Colour | Y4 Wire Colour |
|---|---|---|
| 1 | White/orange — WH/OR | White/orange — WH/OR |
| 2 | Orange — OR | Orange — OR |
| 3 | White/green — WH/GN | White/green — WH/GN |
| 4 | Green — GN | Green — GN |
| 5 | Blue — BU | Blue — BU |
| 6 | White — WH | White — WH |
| 7 | — | Brown — BN |
| 8 | — | Black — BK |
“—” means the contact is not present. Follow the numbered contact drawing and equipment schematic for signal assignments and power polarity. Confirm the shield termination for the ordered assembly.
Selection and Ordering
| Selection Item | Available Choices |
|---|---|
| Contact arrangement | Y3 / Y4 |
| Mounting style | Front mount |
| Panel mounting thread | PG9 / M16 × 1.5 |
| Termination | Solder |
| Wiring | Unwired / 0.3 m pre-wired |
| Custom requirements | Specify wire type or lead length |
Example enquiry: M12 Y-coded male front mount hybrid socket, Y3, PG9 mounting, solder termination, 0.3 m pre-wired leads.
