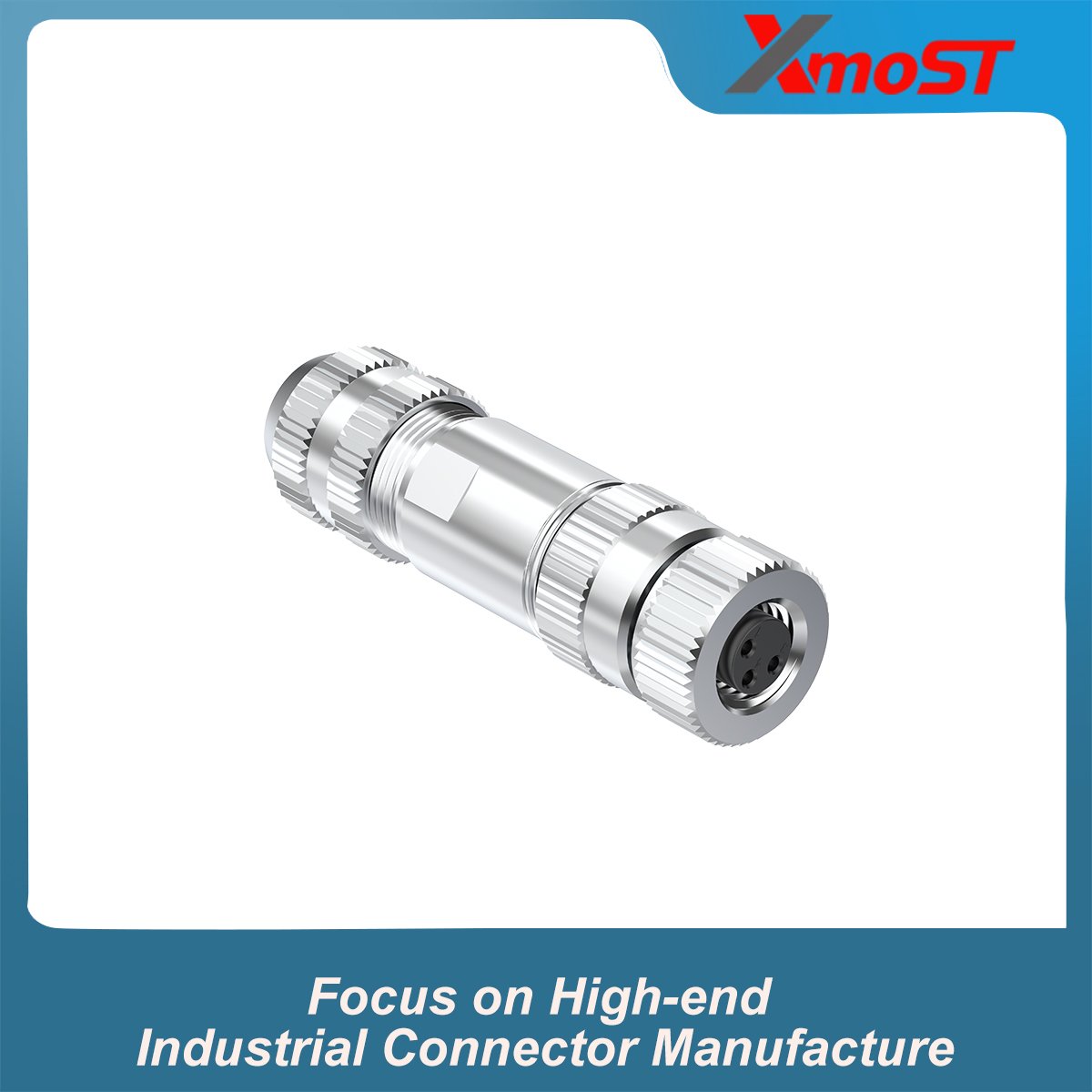

M8 A-Code 3-Pin Female Straight Assembled Connector

M8 A-Code 3-Pin Female Straight Assembled Connector is a metal M8 connector designed for screw-type wire termination and EMI-shielded industrial connections. Its straight assembled configuration provides a compact female interface while allowing individual conductors to be secured directly inside the connector.

The M8 A-Code 3-Pin Female Connector is rated for 3 A at 60 V and uses an M8 × 1.0 screw locking system. The metal housing provides the connector’s shielded structure, while the screw-fixing termination eliminates the need for soldering during cable assembly.

With support for 0.25–0.34 mm² (AWG24–AWG22) conductors and Ø3.5–5 mm cable, this M8 female connector is suitable for custom cable assemblies, industrial sensors, automation equipment, and control wiring.

Key Features

• M8 A-Code 3-Pin Female Connector
• Straight assembled configuration
• Metal housing
• EMI-Shielded construction
• Screw-type wire termination
• M8 × 1.0 screw locking
• 0.25–0.34 mm² (AWG24–AWG22) wire
• Ø3.5–5 mm cable size
• IP67 protection

Dimensions

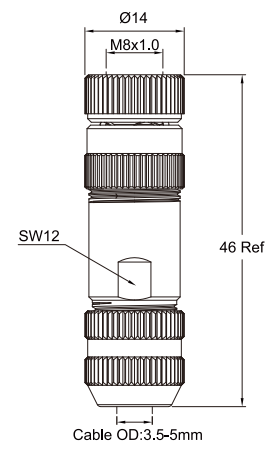

Connector features a straight metal housing with an M8 × 1.0 threaded coupling and a cable entry for Ø3.5–5 mm cable.Please refer to the dimensional drawing for detailed connector and assembly dimensions.

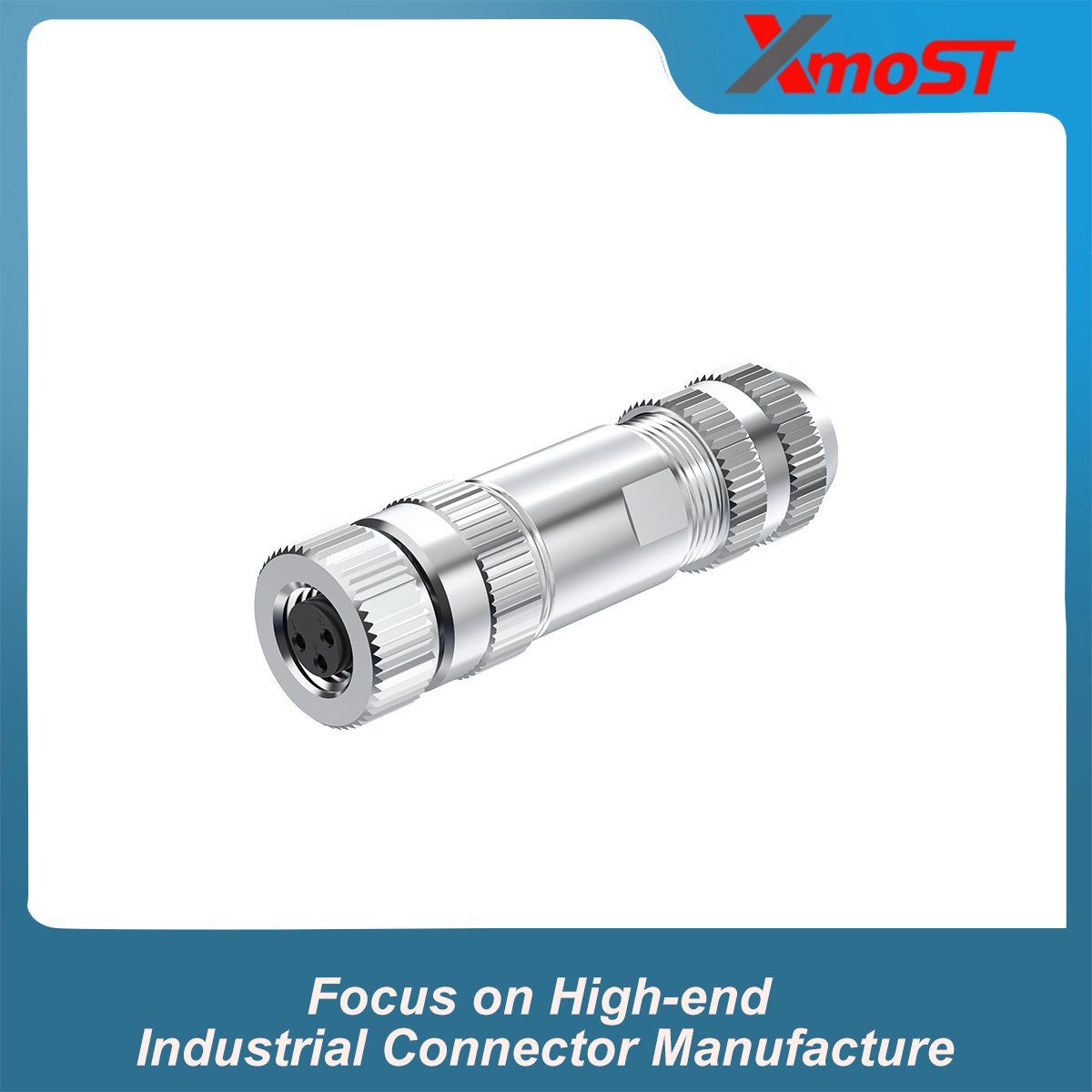

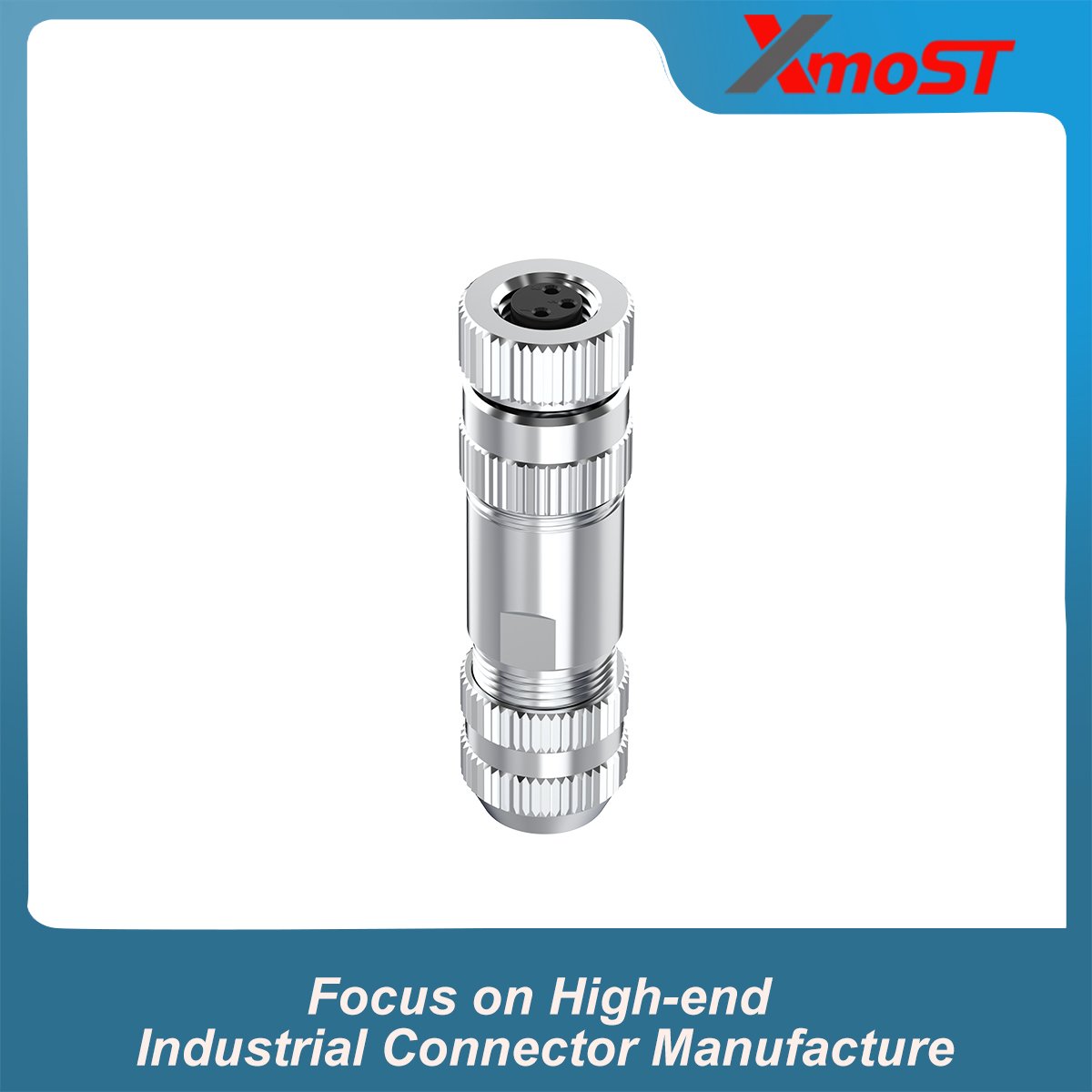

Female Contact Configuration

3-pin A-Code female interface provides the socket-side connection for a compatible M8 male connector. Its straight housing keeps the cable entry aligned with the mating axis, making it suitable for conventional cable routing.

M8 × 1.0 threaded coupling secures the mating connection, while the female contact arrangement provides the corresponding connection interface for A-Code M8 equipment and cable assemblies.

Screw-Type Cable Termination

M8 female assembled connector uses screw fixing rather than solder termination. Individual conductors can be secured inside the connector using the specified 0.1 Nm wire screw torque.

Cable gland is designed for Ø3.5–5 mm cable with a specified tightening torque of 0.4–0.8 Nm. The supported conductor range is 0.25–0.34 mm² (AWG24–AWG22).

Technical Specifications

Parameter	Specification
Connector Series	M8
Coding	A-Code
Contact Configuration	3 Pin
Connector Type	Female Straight Assembled Connector
Housing Type	Metal
Operating Standard	IEC 61076-2-104
Rated Current	3 A
Rated Voltage	60 V
Insulation Resistance	≥100 MΩ
Contact Resistance	≤5 mΩ
Shielding Performance	Shielded / EMI-Shielded
Locking Method	M8 × 1.0 Screw
Screw Torque	Recommended: 0.2 Nm / Max.: 0.4 Nm
Wire Screw Torque	0.1 Nm
Cable Gland Torque	0.4–0.8 Nm
Wiring Method	Screw Fixing
Wire Gauge Range	0.25–0.34 mm² (AWG24–AWG22)
Wire Size	Ø3.5–5 mm
Operating Temperature	-25°C to +80°C Dynamic / -40°C to +80°C Static
IP Rating	IP67
Pollution Degree	3
Insulator Material	PA + GF / TPU + GF
Screw / Nut Material	Brass Ni / Zinc Alloy Ni
Pin Material	Phosphor Bronze Au / Brass Au
Sealing Material	FKM / Silicone / Epoxy
Outer Housing Material	Brass Ni / Zinc Alloy Ni
