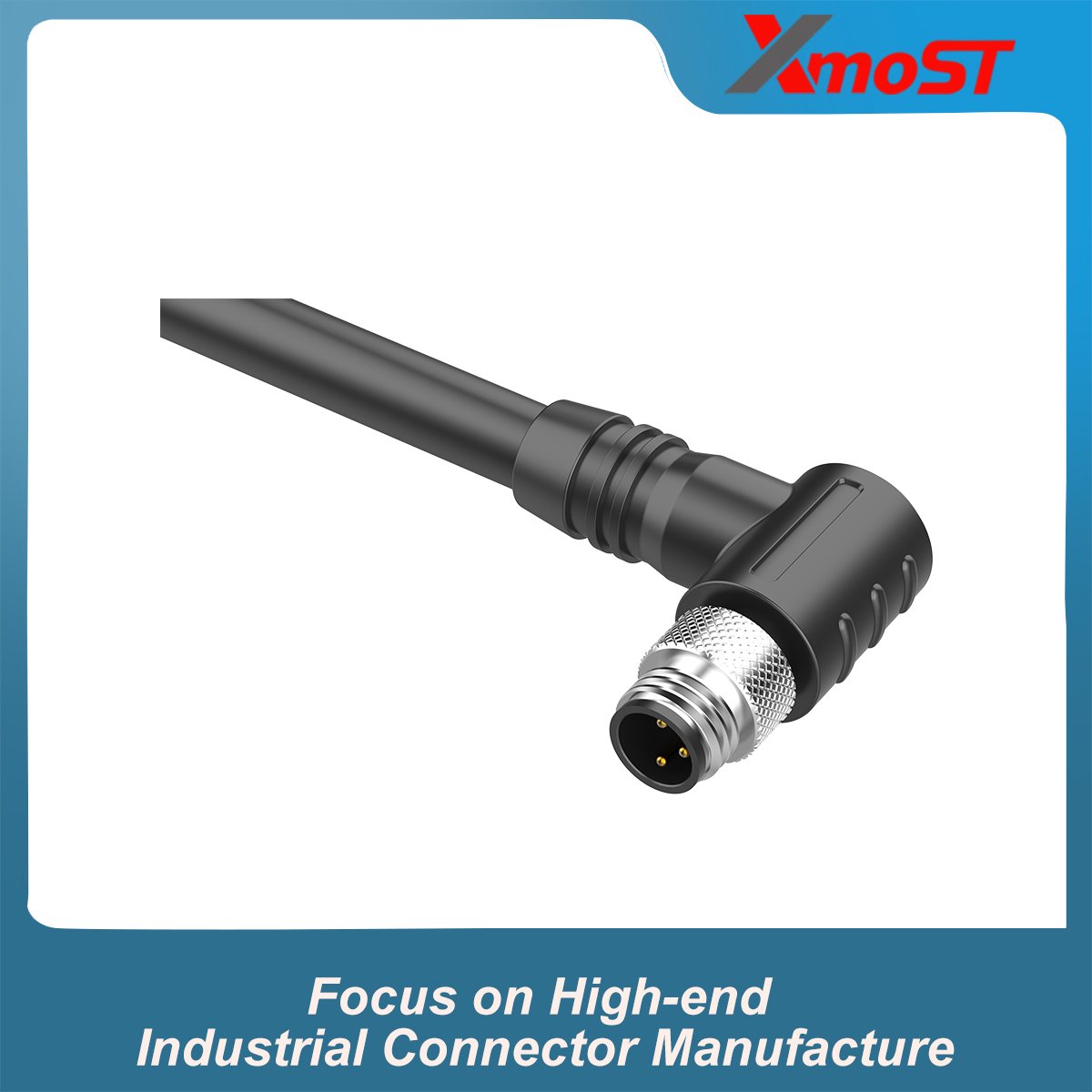

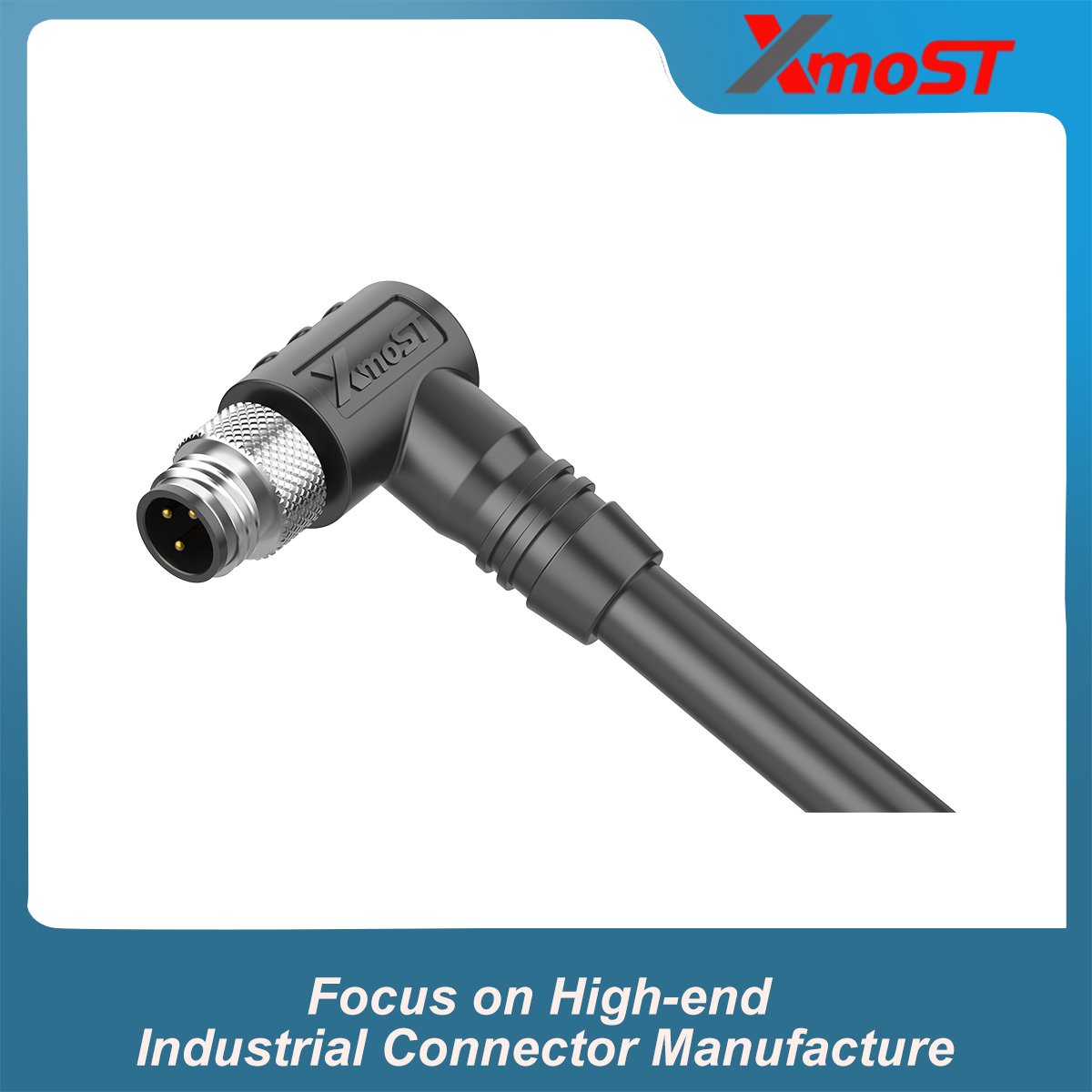

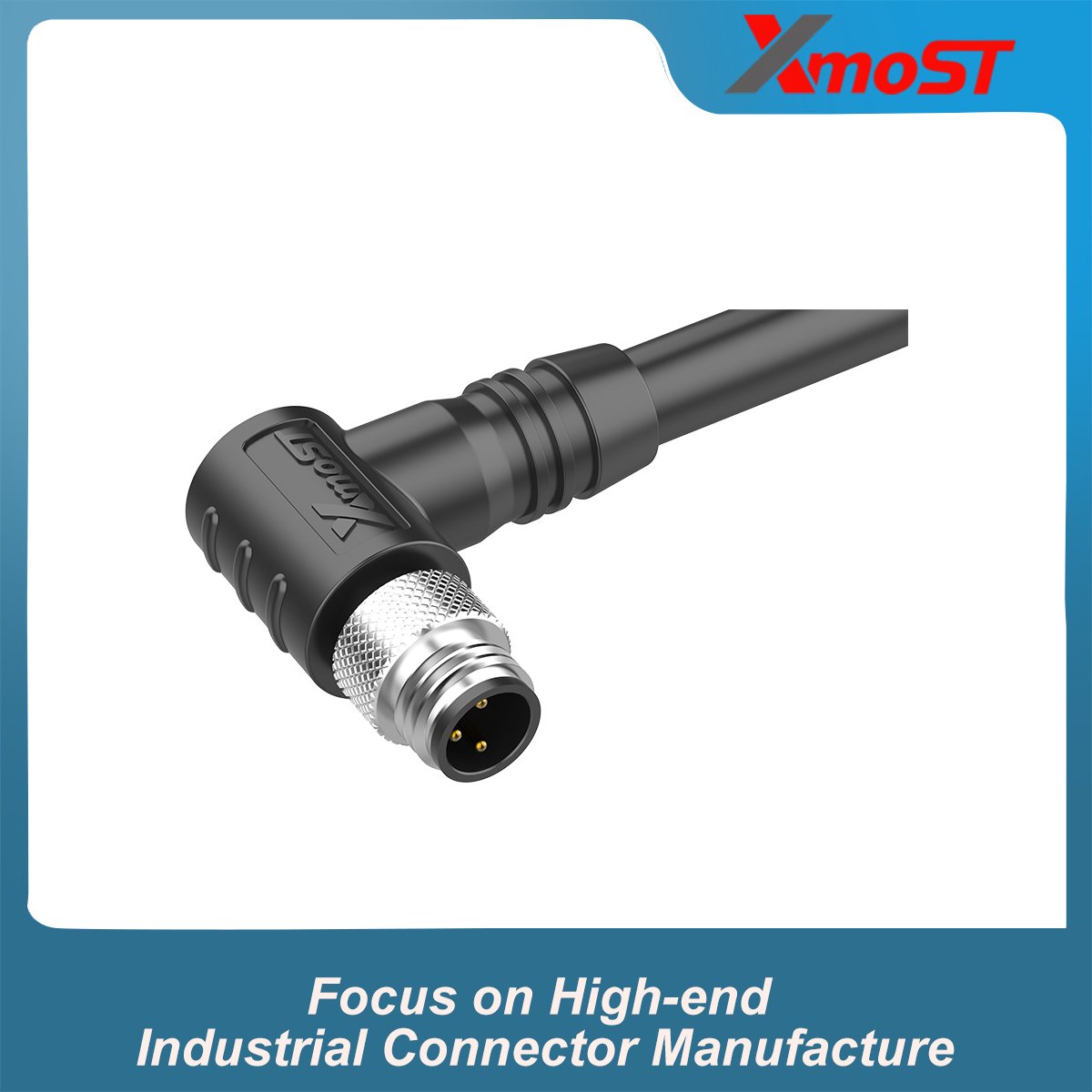

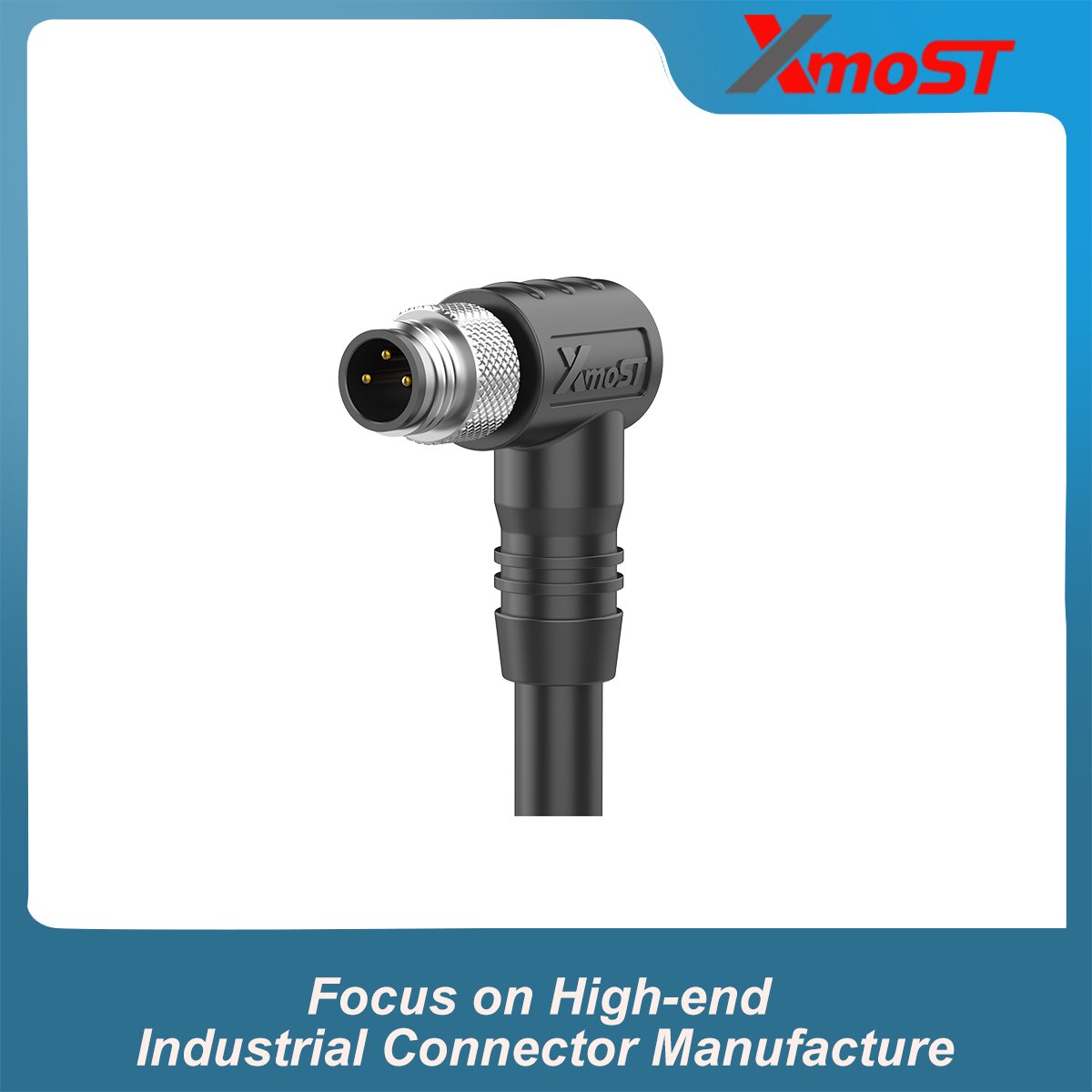

M8 A-Code 3-Pin Male Right-Angle Molded Connector is designed for reliable connections in industrial automation, sensors, and control equipment. It features a 3-pin A-Code male configuration, 90° molded housing, single-ended pre-molded cable, and EMI shielding.
The M8 × 1.0 screw-locking interface provides a secure connection, while the IP67-rated design helps protect the mated connection from dust and water. The 90° cable exit is well suited for installations where cable routing space is limited.
Key Features & Advantages
- 3-Pin A-Code Male
- 90° Right-Angle Molded Housing
- Single-Ended Pre-Molded Cable
- EMI-Shielded
- M8 × 1.0 Screw Locking
- Solder Termination
- IP67 Protection
- 3 A Rated Current / 60 V Rated Voltage
Dimensions

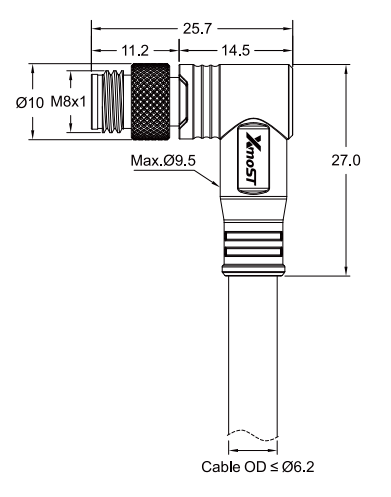

M8 A-Code 3-Pin Male Right-Angle Molded Connector features a compact circular housing, 90° cable exit, integrated pre-molded cable, and M8 × 1.0 screw-locking interface. The rear cable connection is overmolded. Refer to the product drawing for detailed dimensions.
Contact Configuration
3-Pin A-Code Male
Connector uses a 3-pin A-Code male contact configuration. The 90° cable exit and pre-molded cable provide a practical connection for applications with limited installation space.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | A-Code |
| Contact Configuration | 3 Pin |
| Operating Standard | IEC 61076-2-104 |
| Connector Type | Male Right-Angle Molded Connector |
| Rated Current | 3 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded / EMI-Shielded |
| Locking Method | M8 × 1.0 Screw Lock |
| Recommended Screw Torque | 0.2 Nm |
| Maximum Screw Torque | 0.4 Nm |
| Wiring Method | Soldering |
| Cable Type | Single-Ended Pre-Molded Cable |
| Wire Gauge | 0.25 mm² (AWG24) |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| Protection Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Gold-Plated Phosphor Bronze / Gold-Plated Brass |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | TPU / PVC |
Product Industry Applications
- Industrial Automation
- Sensors and Measurement
- Factory Automation
- Control Equipment
- Industrial Machinery
- Motion and Control Systems
