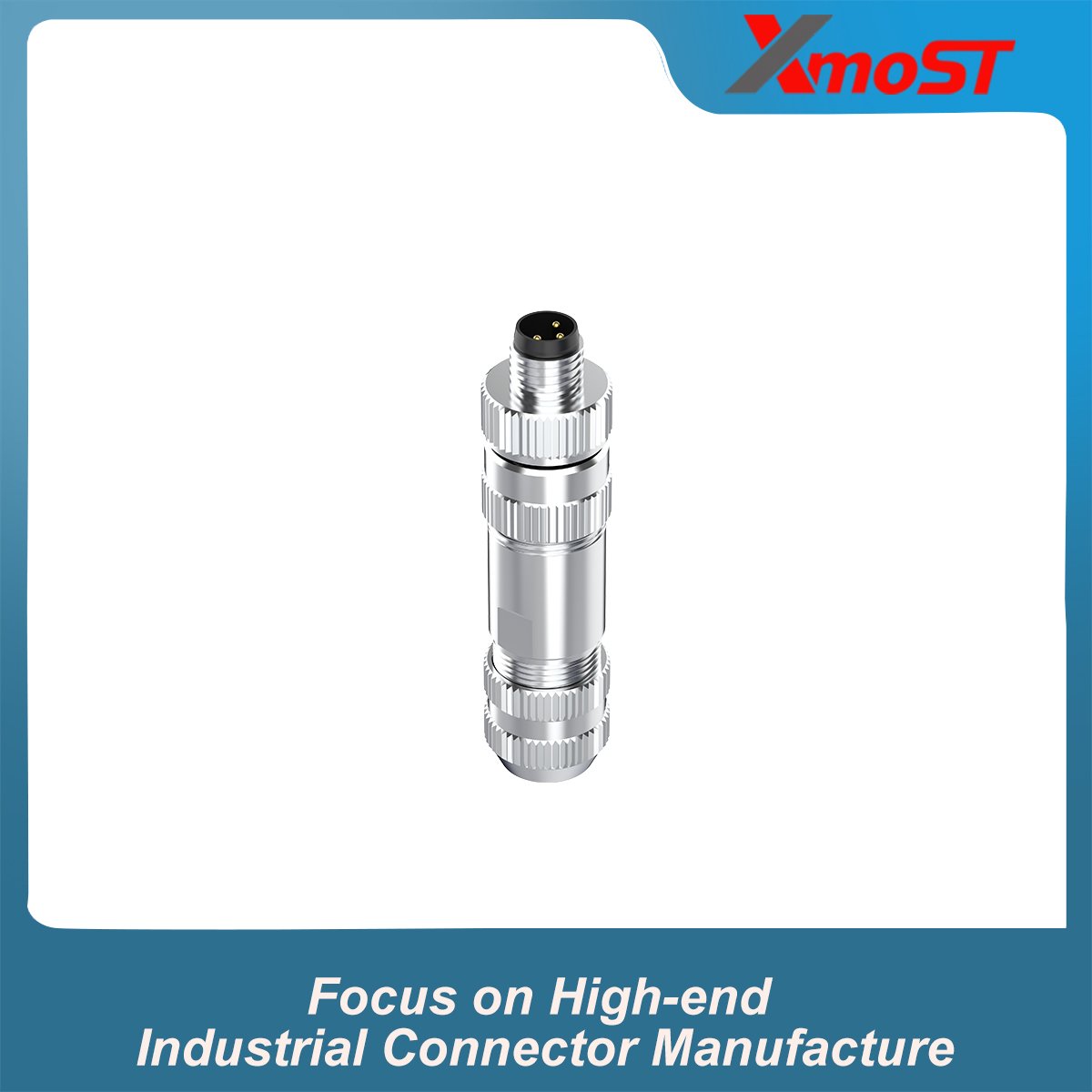

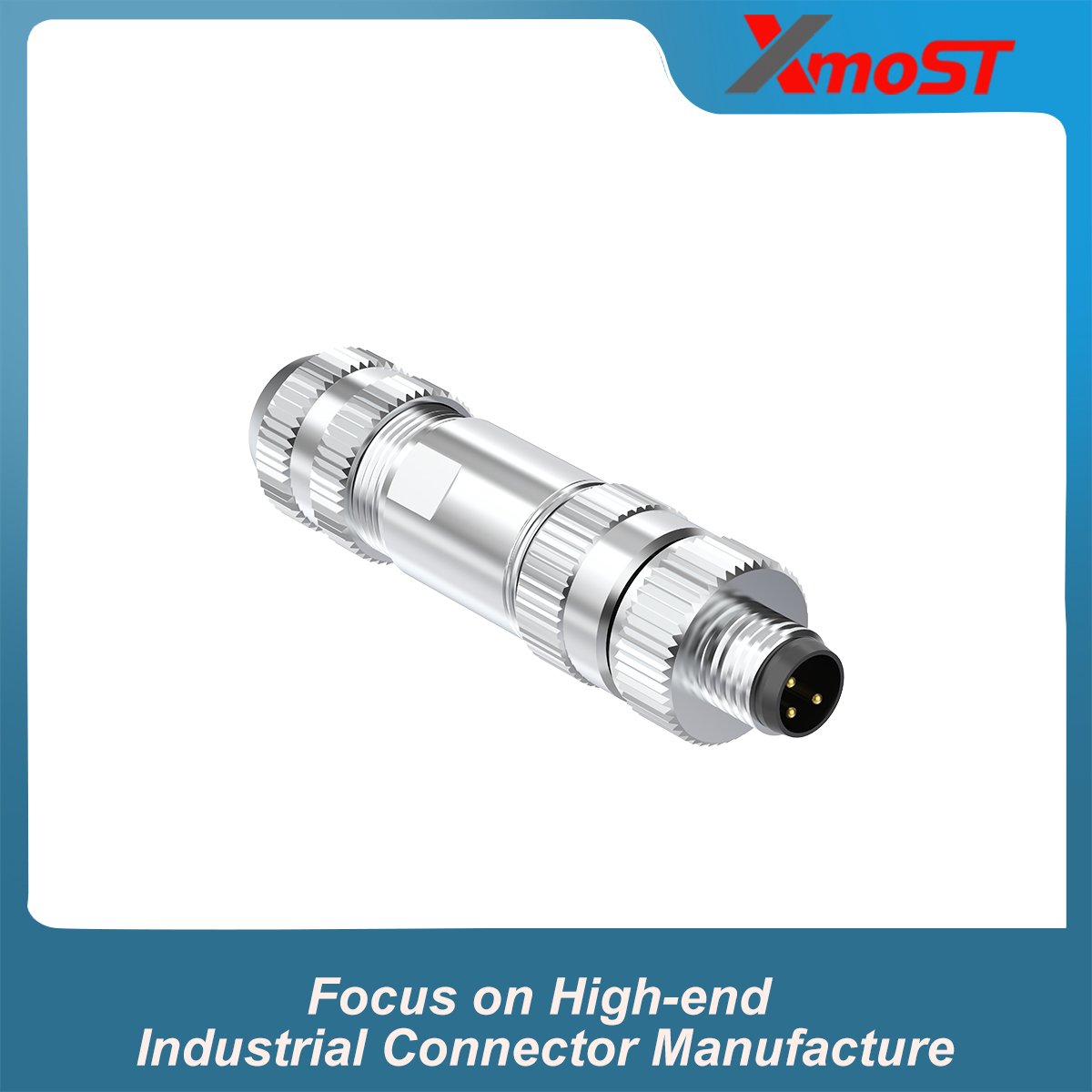

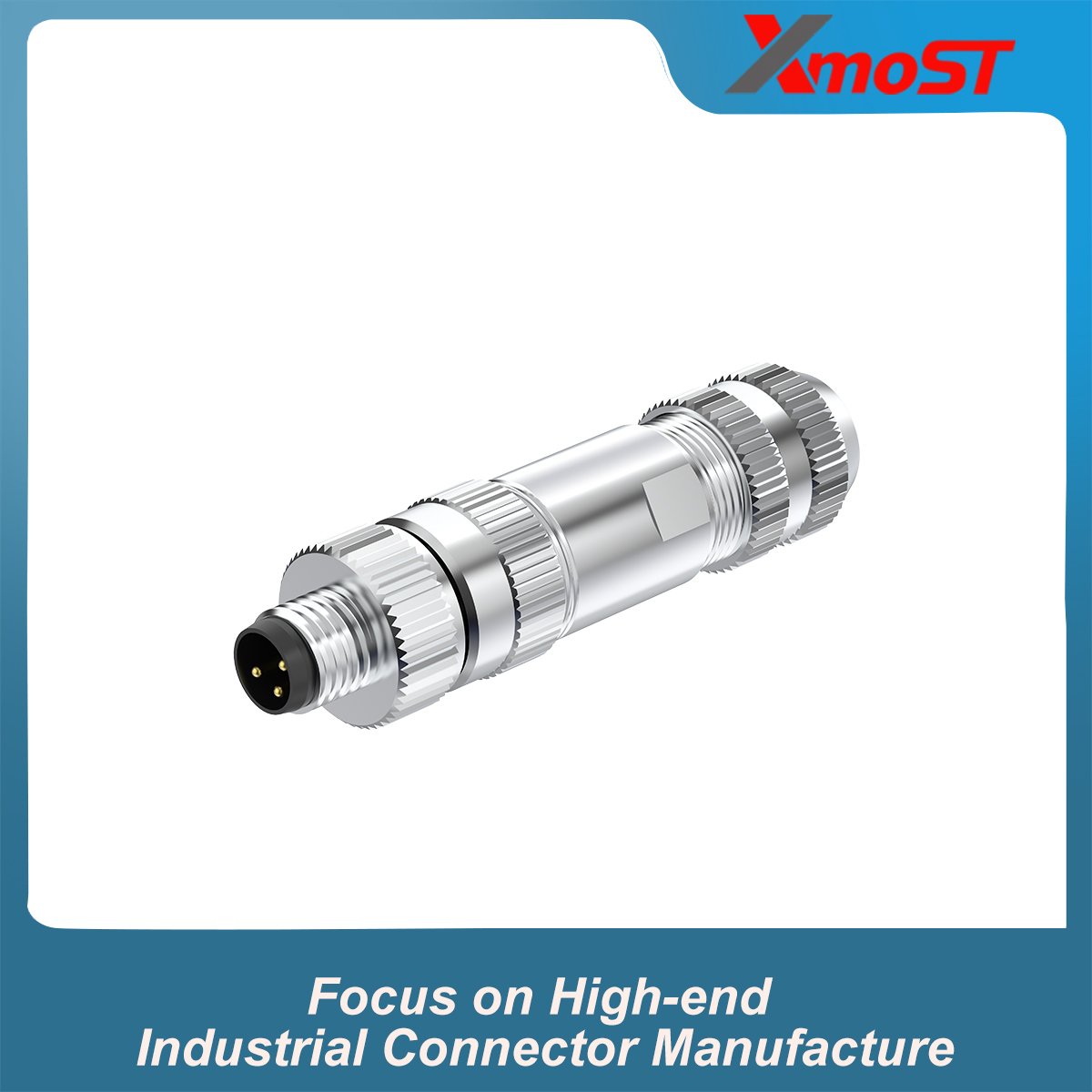

M8 A-Code 3-Pin Male Straight Assembled Connector is a metal M8 connector with a straight configuration, screw-type wire termination, and EMI-shielded construction. The assembled design allows the cable to be secured directly inside the connector, making it suitable for custom industrial cable assemblies.
This M8 A-Code 3-Pin Male Connector uses an M8 × 1.0 screw locking interface and supports a 3 A rated current at 60 V. The metal housing and shielded construction provide a compact connection solution for industrial equipment where a reliable cable termination and electromagnetic shielding are required.
Unlike solder-type M8 assembled connectors, this version uses screw fixing for the wire connection. It accepts cable sizes from Ø3.5 to 5 mm and supports 0.25–0.34 mm² (AWG24–AWG22) conductors.
Key Features
- M8 A-Code 3-Pin Male Connector
- Straight assembled connector design
- Metal housing
- EMI-Shielded construction
- Screw-type wire termination
- M8 × 1.0 screw locking
- Cable size: Ø3.5–5 mm
- Wire gauge: 0.25–0.34 mm² (AWG24–AWG22)
- IP67 protection
Dimensions

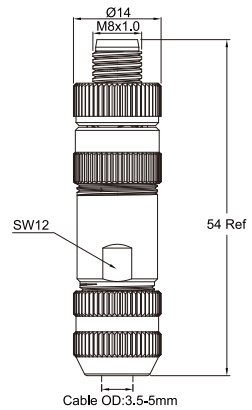

The connector features a straight metal housing with an M8 × 1.0 threaded coupling interface and a cable entry for Ø3.5–5 mm cable.Please refer to the dimensional drawing for detailed connector dimensions, cable entry dimensions, and assembly information.
Contact Configuration

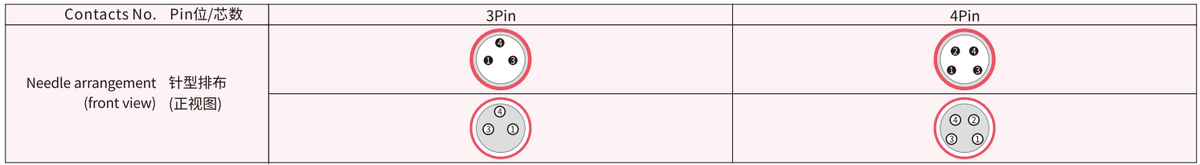

Connector features a 3-pin A-Code male interface in a straight metal housing. The plug-side contact arrangement is designed to mate with a compatible M8 A-Code female connector.M8 × 1.0 threaded interface secures the mating connection, while the internal screw-fixing structure provides a mechanical method for terminating the individual cable conductors.

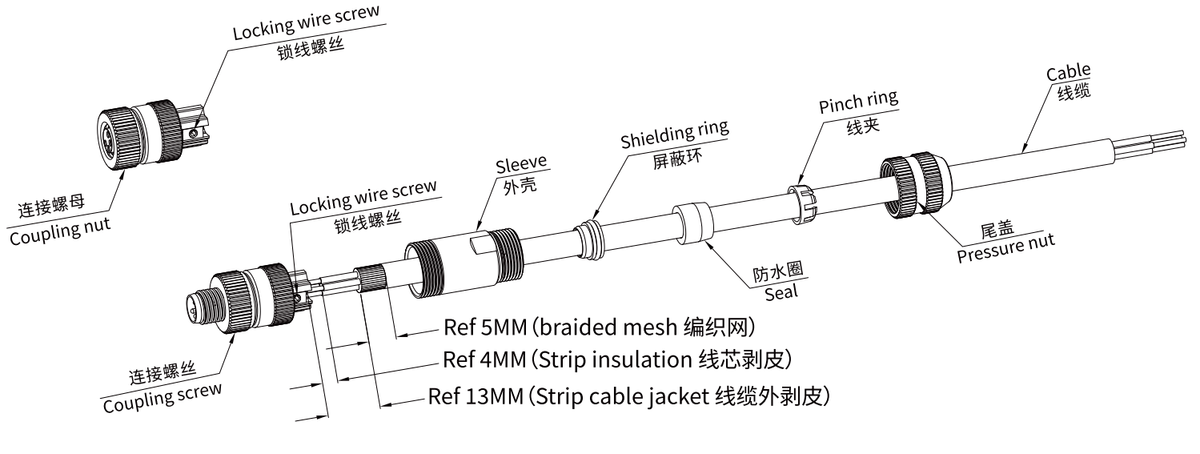

Screw-Type Cable Termination
Screw-type M8 connector is designed for cable assembly without soldering. Individual conductors are secured using the internal screw-fixing mechanism, with a specified wire screw torque of 0.1 Nm.
Cable gland accommodates Ø3.5–5 mm cable and has a specified torque range of 0.4–0.8 Nm. This configuration provides a practical option for assembling custom M8 cable connections in the field or during cable harness production.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | A-Code |
| Contact Configuration | 3 Pin |
| Connector Type | Male Straight Assembled Connector |
| Housing Type | Metal |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded / EMI-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wire Screw Torque | 0.1 Nm |
| Cable Gland Torque | 0.4–0.8 Nm |
| Wiring Method | Screw Fixing |
| Wire Gauge Range | 0.25–0.34 mm² (AWG24–AWG22) |
| Wire Size | Ø3.5–5 mm |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| IP Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | Brass Ni / Zinc Alloy Ni |
Applications
- Industrial Automation
- Industrial Sensors
- Control Systems
- Measurement Equipment
- Factory Equipment
- Industrial Machinery
- Custom Cable Assemblies
M8 A-Code 3-Pin Male Connector is suitable for industrial wiring applications requiring a compact metal housing, screw-type cable termination, and EMI-shielded connection.
