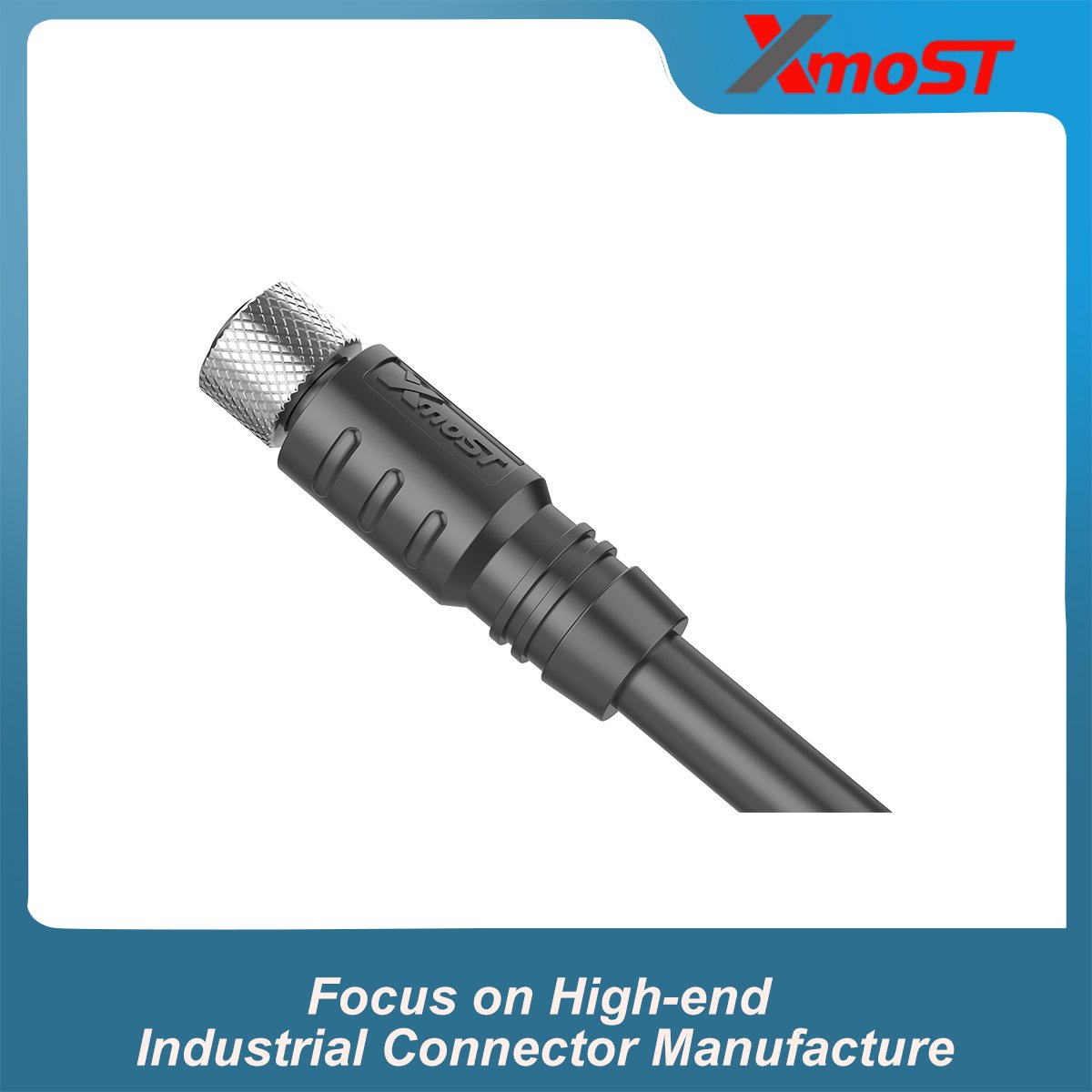

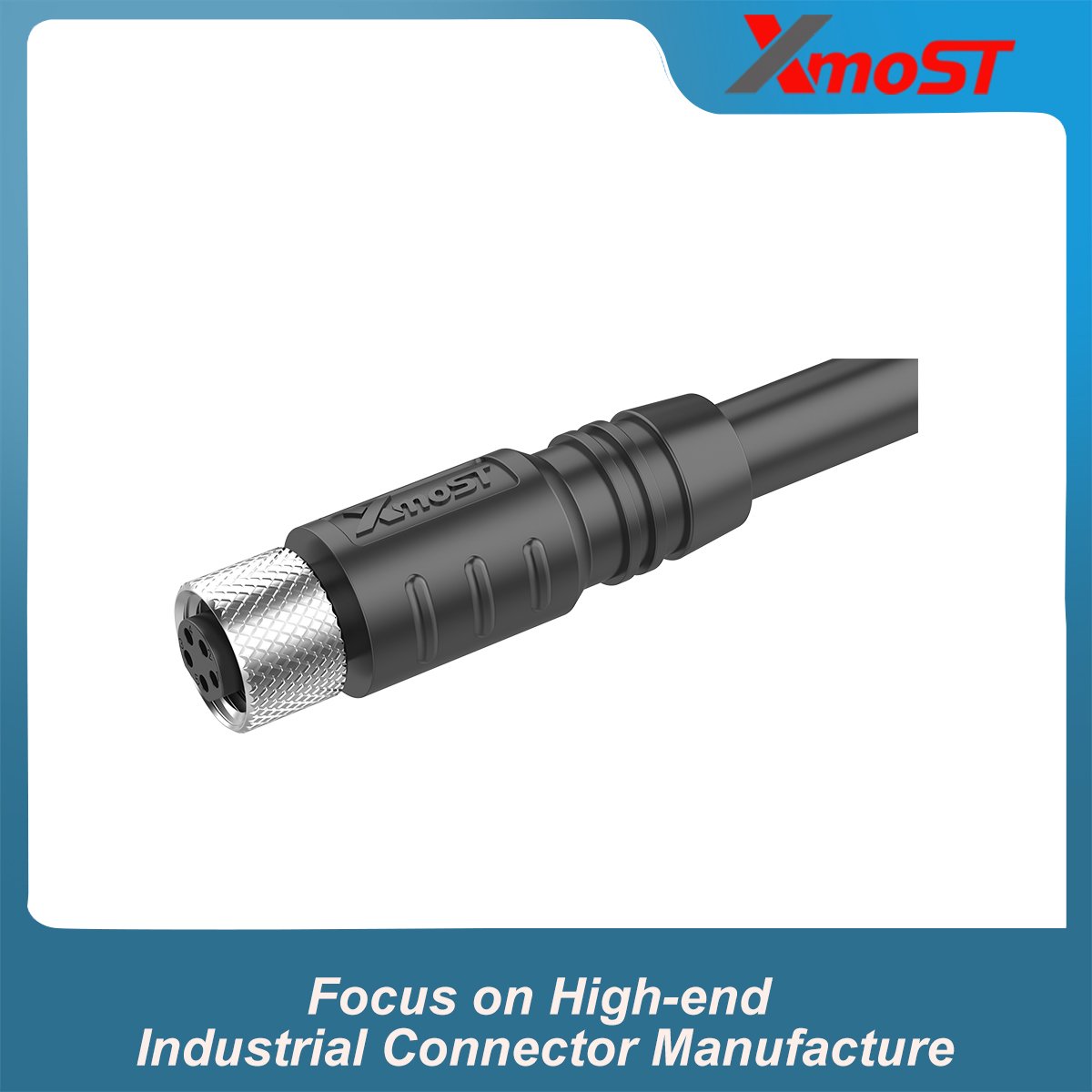

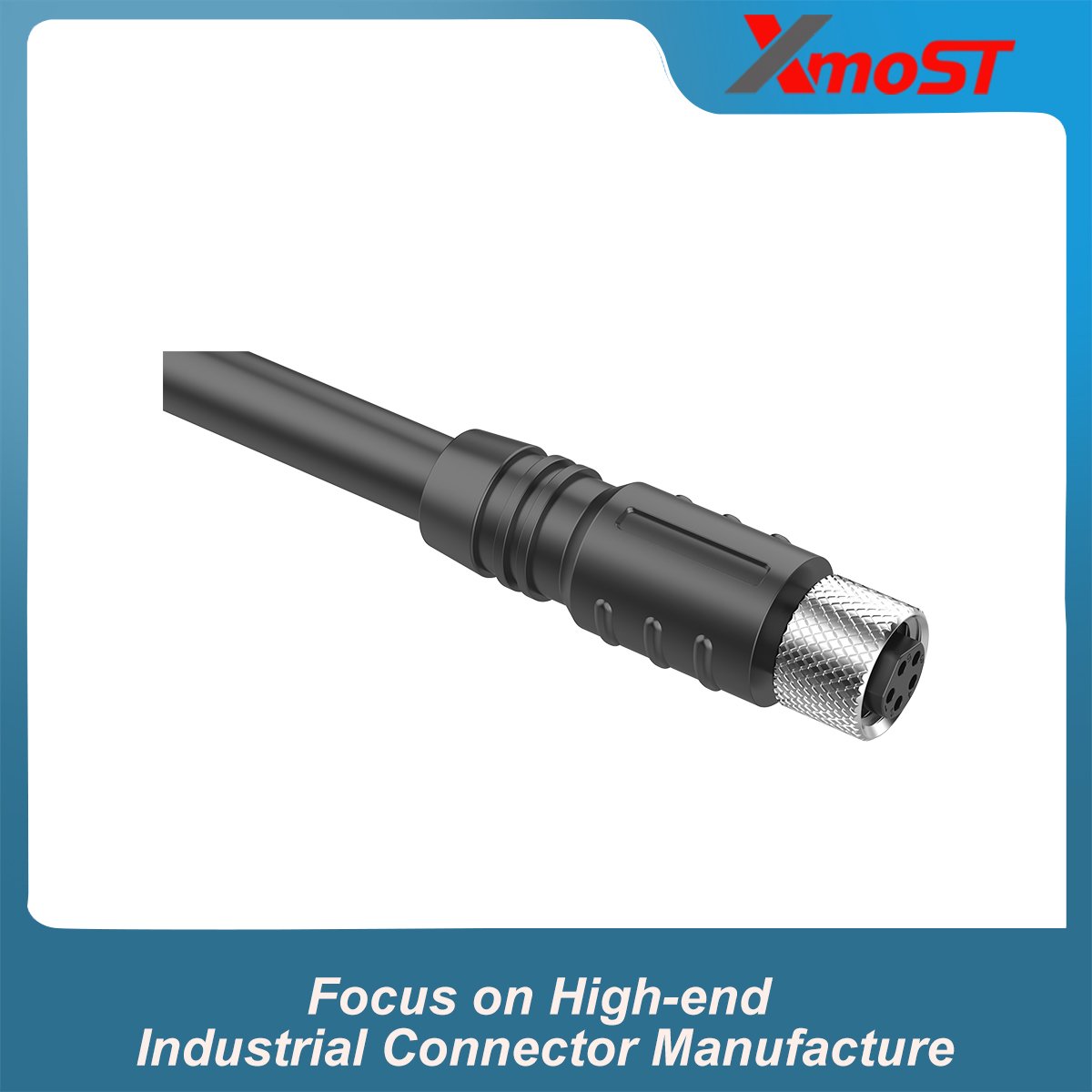

M8 B-Code 5-Pin Female Molded Connector is a compact circular connector designed for reliable connections in industrial automation, sensors and control equipment. It features a 5-pin B-Code female configuration, a single-ended pre-molded cable and an EMI-shielded construction for applications requiring reliable signal transmission and electromagnetic interference protection.
The connector uses an M8 × 1.0 screw-locking interface and solder termination. With an IP67 protection rating, it is suitable for industrial environments requiring protection against dust and water ingress. The integrated pre-molded cable provides a compact connector-to-cable assembly for equipment and field wiring applications.
Key Features & Advantages
- 5-Pin B-Code Female Configuration
- Molded Connector with Single-Ended Pre-Molded Cable
- EMI-Shielded Construction
- M8 × 1.0 Screw Locking
- Solder Termination
- IP67 Protection
- 3 A Rated Current / 30 V Rated Voltage
- Compact M8 Circular Design
Dimensions
M8 B-Code 5-Pin Female Molded Connector features a compact circular housing, an integrated pre-molded cable, and an M8 × 1.0 screw-locking interface. The rear cable connection is overmolded. Refer to the product drawing for detailed dimensions.
Contact Configuration
5-Pin B-Code Female

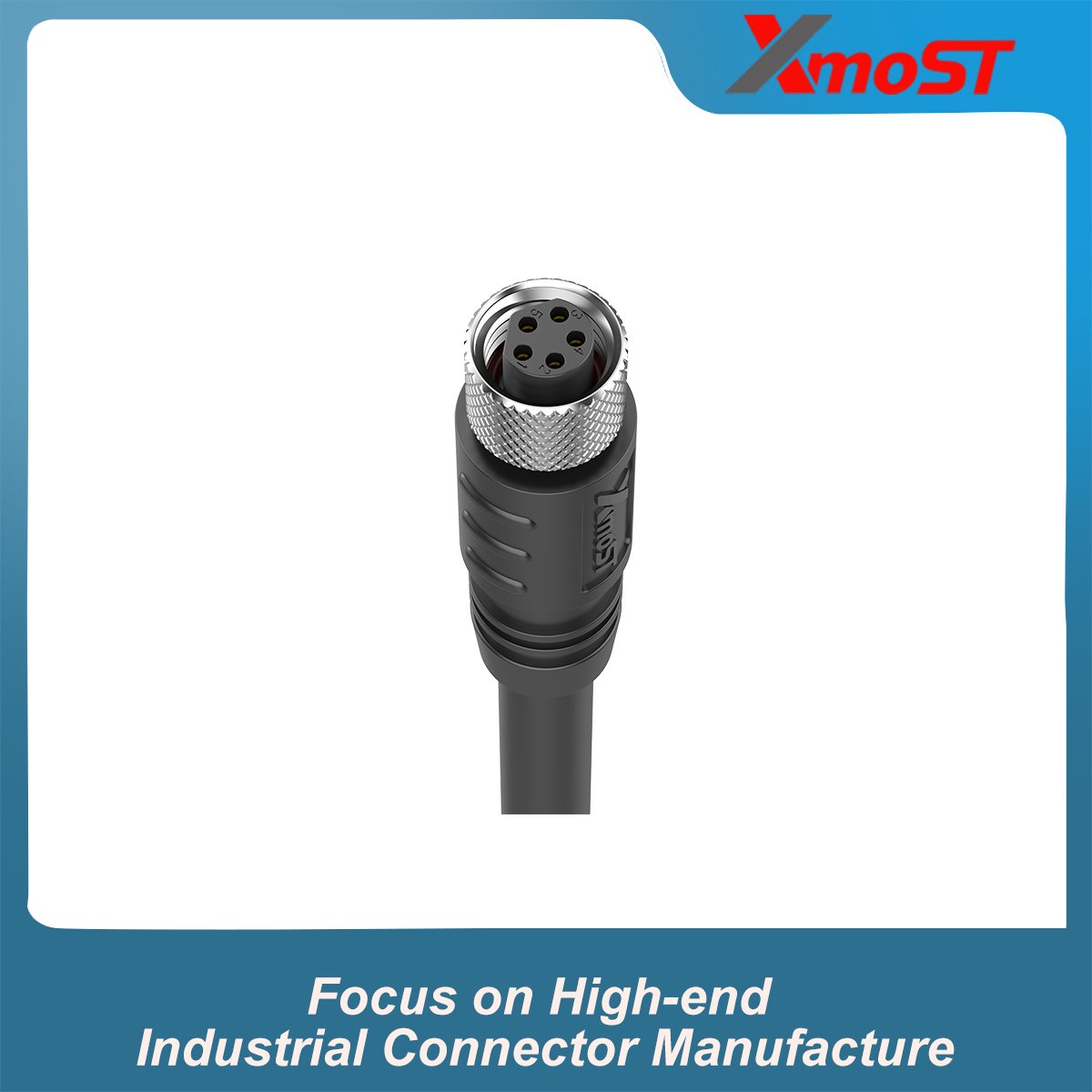

5-pin B-Code female contact arrangement follows the configuration shown in the product drawing. The B-Code configuration is designed for M8 applications requiring a 5-pin connection, while the molded construction integrates the connector with a single-ended pre-molded cable.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | B-Code |
| Contact Configuration | 5 Pin |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 30 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded / EMI-Shielded |
| Connector Type | Female Molded Connector |
| Locking Method | M8 × 1.0 Screw Lock |
| Recommended Screw Torque | 0.2 Nm |
| Maximum Screw Torque | 0.4 Nm |
| Wiring Method | Soldering |
| Cable Type | Single-Ended Pre-Molded Cable |
| Wire Gauge | 0.25 mm² (AWG24) |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| Protection Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass, Zinc Alloy / Nickel-Plated Brass |
| Pin Material | Gold-Plated Phosphor Bronze / Gold-Plated Brass |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | TPU / PVC |
Product Industry Applications
- Industrial Automation
- Sensors & Measurement
- Factory Automation
- Control Equipment
- Industrial Machinery
- Motion & Control Systems
