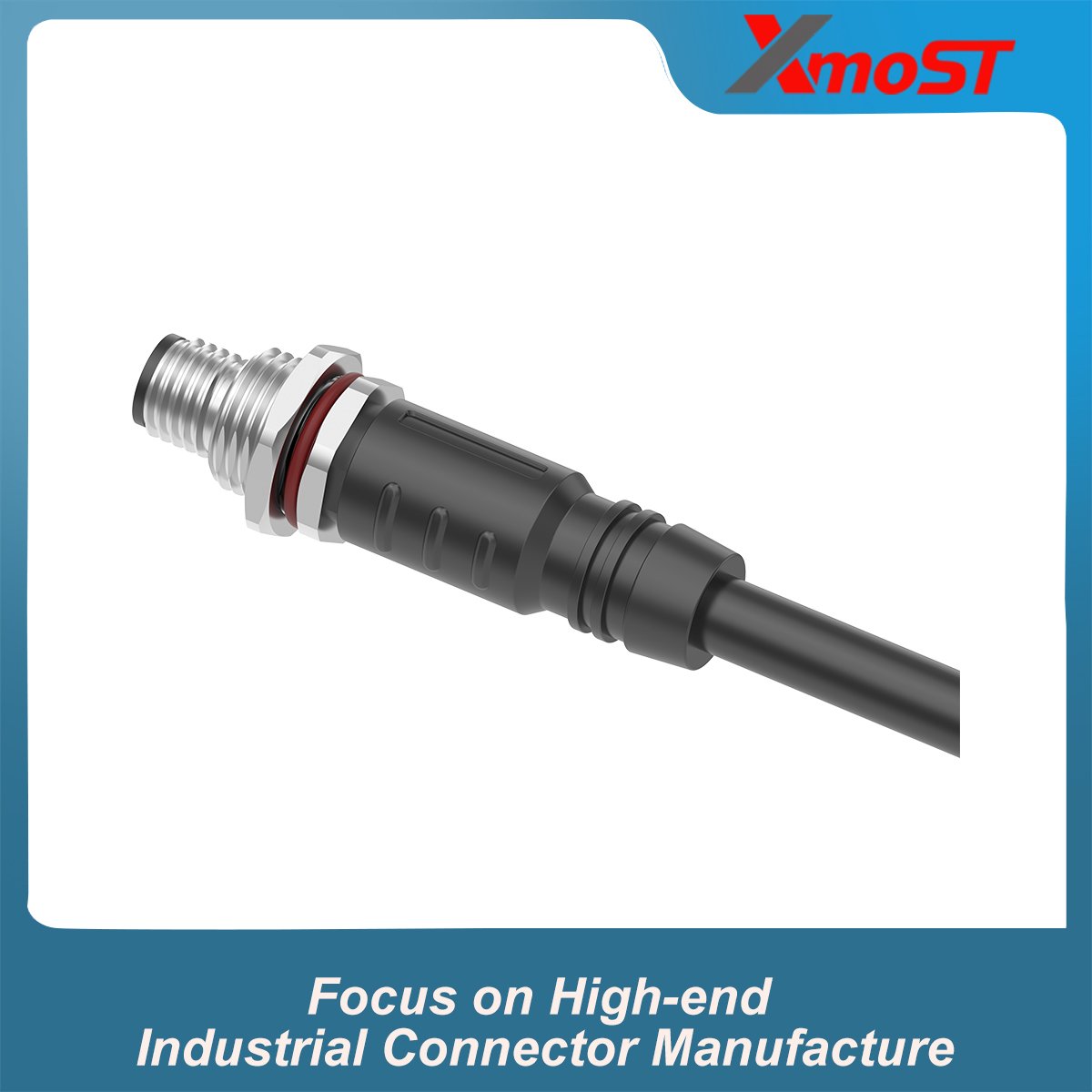

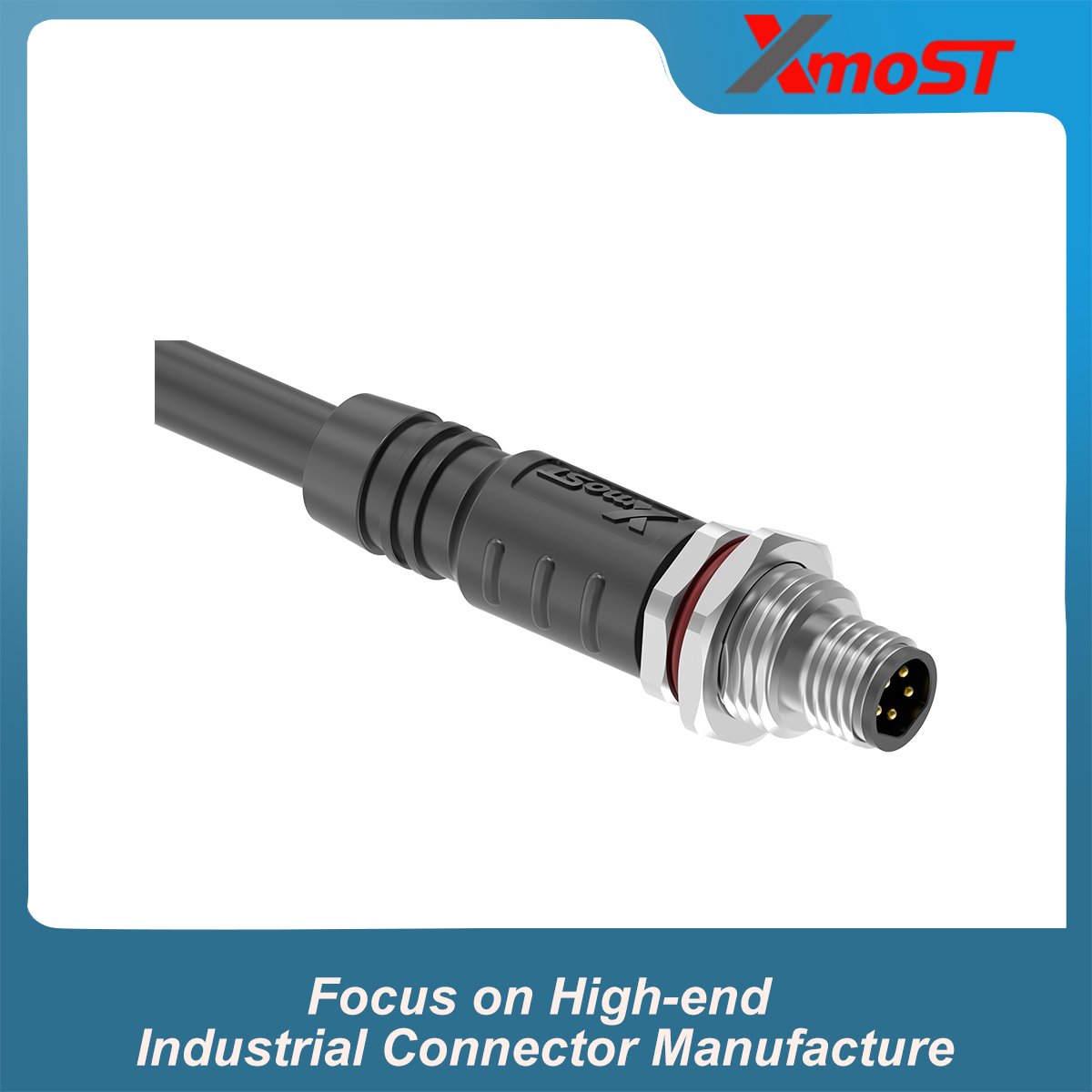

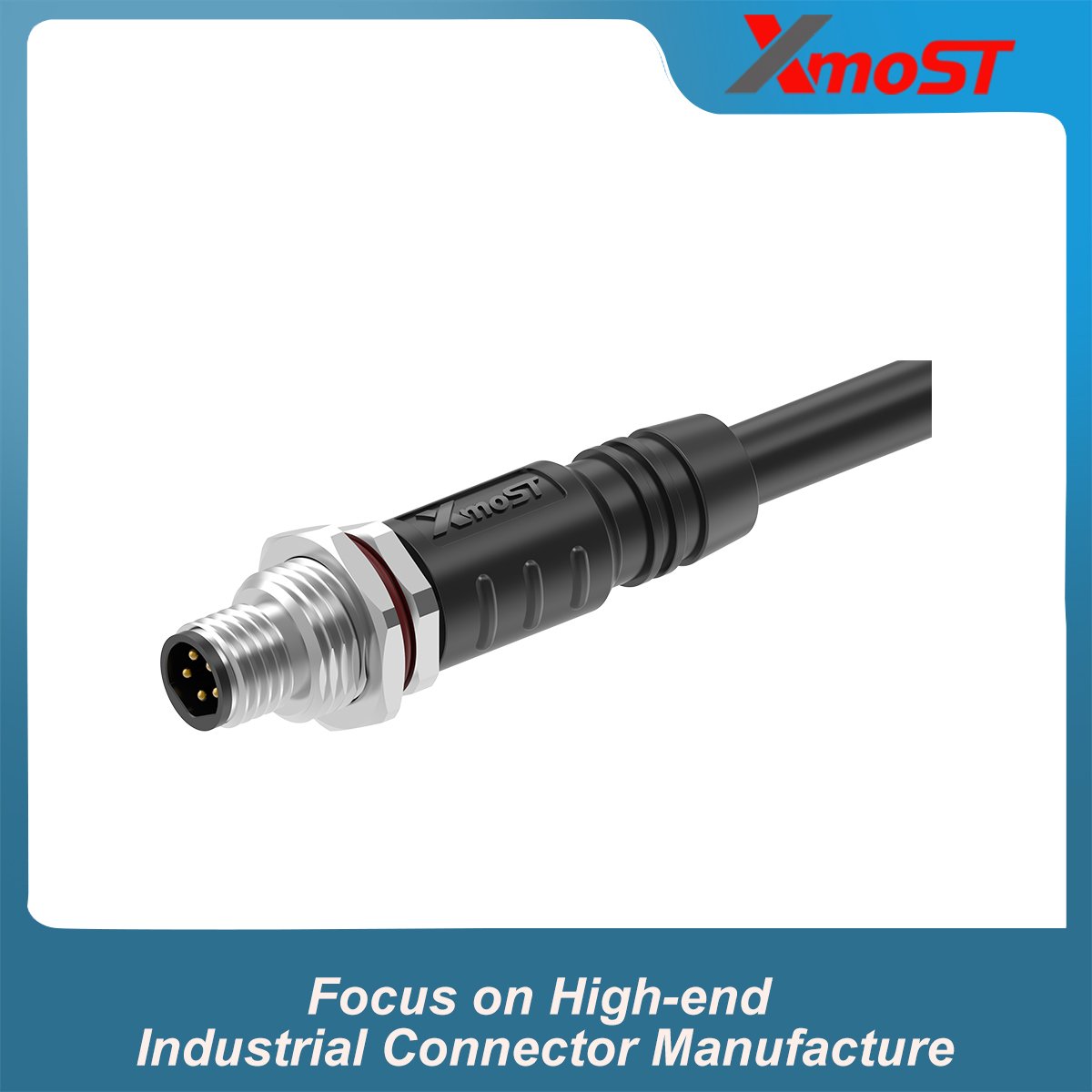

M8 B-Code 5-Pin Male Straight Molded Connector is a compact cable-mounted connector designed around a five-contact B-Code interface. Its straight molded construction provides a direct cable exit from the connector body, making it suitable for wiring assemblies where a compact and consistent connection layout is required.
The M8 B-Code connector uses an M8 × 1.0 screw locking system and a single-ended pre-molded cable. With a 3 A rated current, 30 V rated voltage, shielded construction, and IP67 protection, this M8 5-Pin Male Connector is suited to industrial control, automation, sensor, and machine wiring applications.
Key Features
- M8 B-Code 5-Pin Male Connector
- Straight injection-molded construction
- Single-ended pre-molded cable
- Shielded construction
- M8 × 1.0 screw locking
- Solder termination
- 3 A rated current
- 30 V rated voltage
- IP67 protection

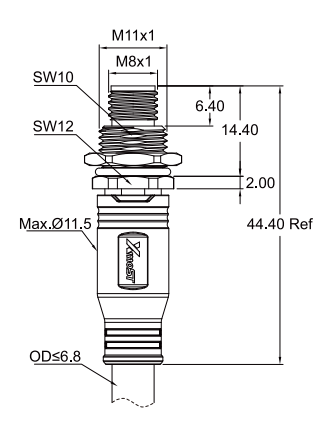

Dimensions
Connector uses a straight molded housing with an M8 × 1.0 threaded connection and a cable exiting directly from the rear of the connector body.
Its integrated molded construction combines the connector and pre-molded cable into a single assembly. Detailed housing and cable dimensions should be referenced from the product drawing.
Configuration

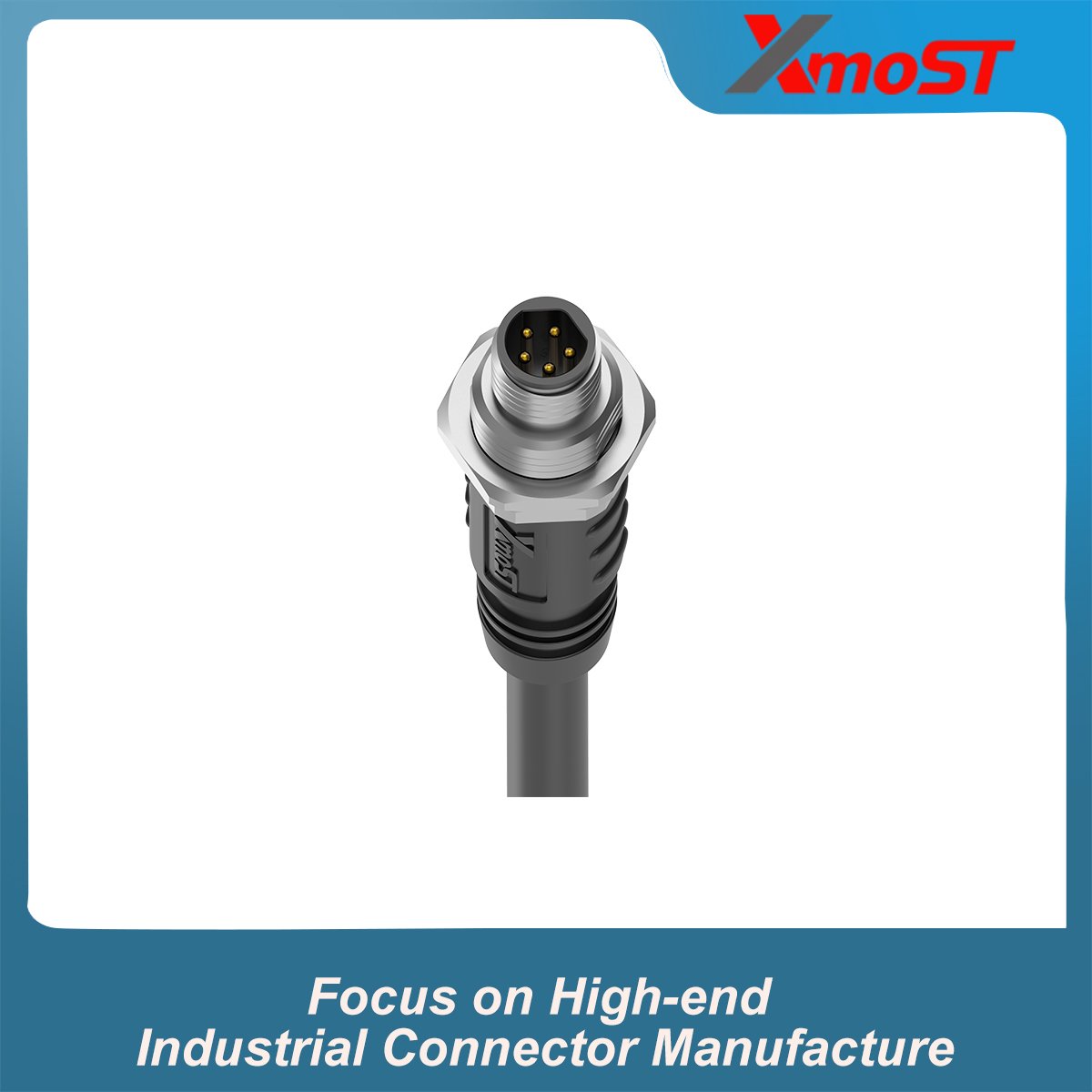

5-pin B-Code male interface provides five contacts within the compact M8 connector format. The plug-side configuration is intended for mating with a compatible B-Code female socket, while the straight housing keeps the cable aligned with the connector axis.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | B-Code |
| Contact Configuration | 5 Pin |
| Connector Type | Male Straight Molded Connector |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 3 A |
| Rated Voltage | 30 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wiring Method | Soldering |
| Cable Configuration | Single-Ended Pre-Molded Cable |
| Wire Gauge | 0.25 mm² (AWG24) |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| IP Rating | IP67 |
| Pollution Degree | 3 |
| Insulator Material | PA + GF / TPU + GF |
| Screw / Nut Material | Brass Ni / Zinc Alloy Ni |
| Pin Material | Phosphor Bronze Au / Brass Au |
| Sealing Material | FKM / Silicone / Epoxy |
| Outer Housing Material | TPU / PVC |
Applications
M8 B-Code 5-Pin Male Connector can be used in:
- Industrial Automation
- Control Systems
- Industrial Sensors
- Factory Equipment
- Measurement Equipment
- Industrial Machinery
- Machine Wiring
Its five-pin configuration is suitable for applications requiring a compact M8 connection with multiple contacts and a pre-molded cable assembly.
