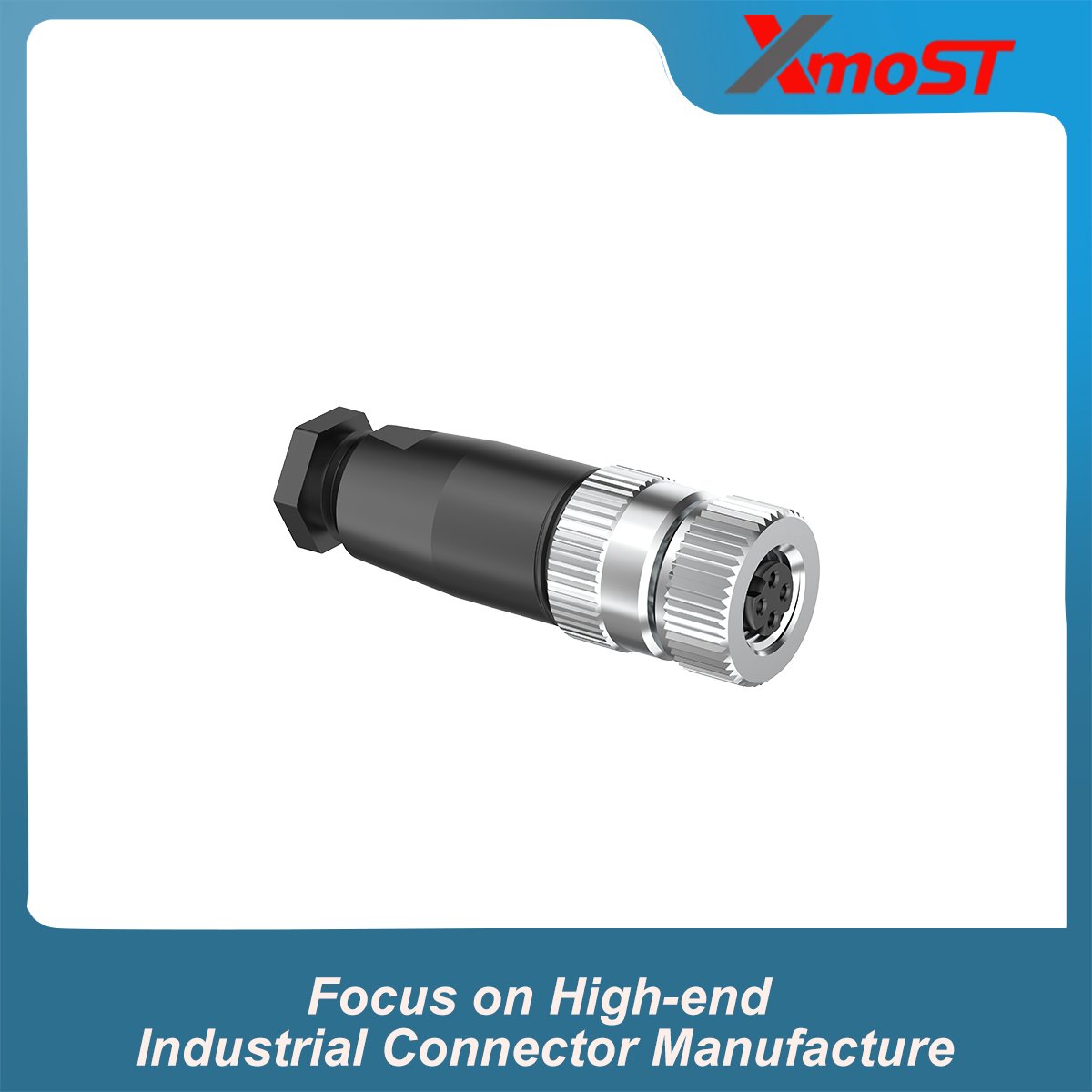

M8 D-Code 4-Pin Female Plastic Straight Assembled Connector is a compact female M8 connector designed for solder-type cable termination and custom cable assemblies. Its straight configuration keeps the cable entry aligned with the connector axis, providing a clean and practical layout for industrial equipment wiring.
Featuring a 4-pin D-Code female interface, this M8 connector uses an M8 × 1.0 screw locking system and is rated for 3 A at 60 V. The assembled construction allows individual conductors to be soldered directly to the contacts, providing flexibility when building custom cable assemblies.
The plastic housing offers a compact alternative to metal-bodied connectors while maintaining the standard M8 threaded connection. With IP67 protection, this M8 D-Code Female Connector is suitable for industrial sensors, automation equipment, control systems, and custom wiring applications.
Key Features
- M8 D-Code 4-Pin Female Connector
- Straight assembled configuration
- Plastic housing
- Solder-type termination
- M8 × 1.0 screw locking
- 4 A / 60 V rating
- 0.34 mm² (AWG22) wire
- IP67 protection
- Suitable for custom cable assemblies

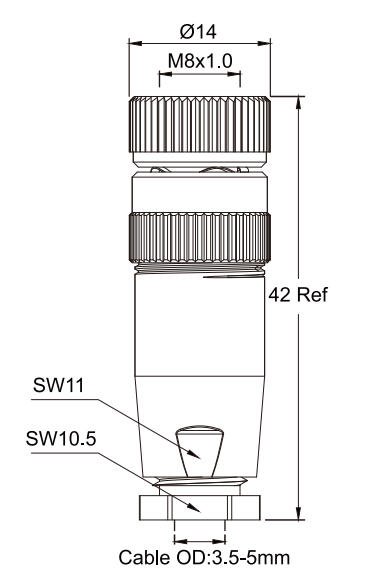

Dimensions
Connector features a straight plastic housing with an M8 × 1.0 threaded coupling.Please refer to the dimensional drawing for detailed connector and assembly dimensions.

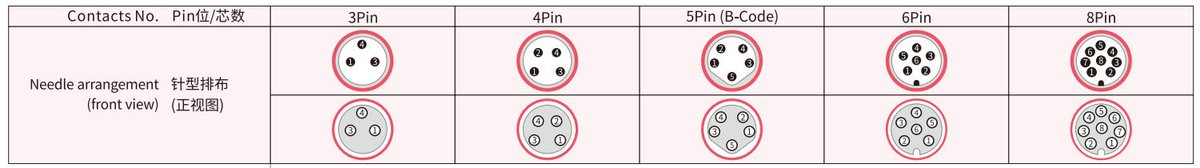

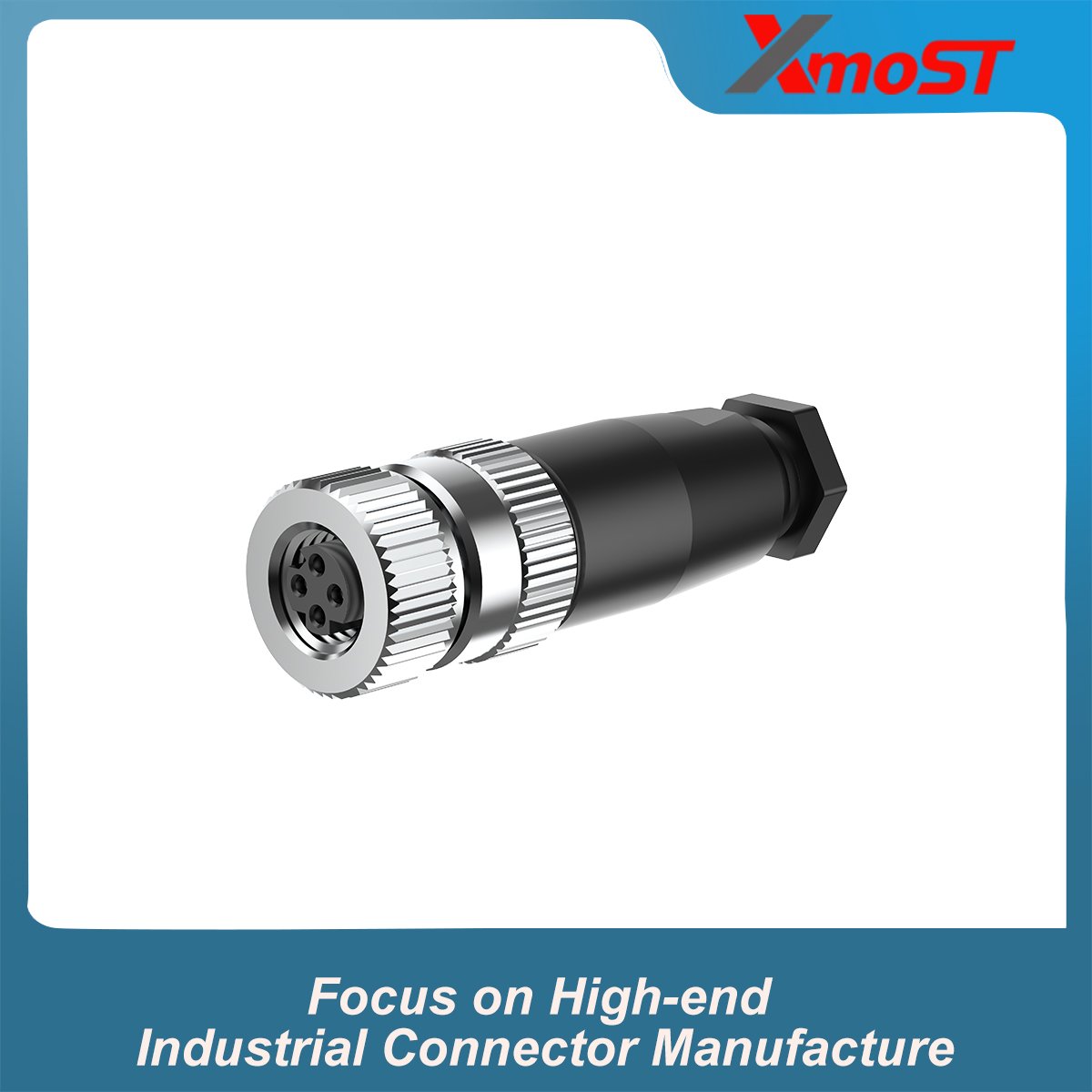

4-Pin D-Code Female Configuration
4-pin D-Code female interface provides the socket-side connection for a compatible M8 D-Code male connector. The straight connector body keeps the cable entry in line with the mating direction, making it suitable for conventional cable routing.
D-Code configuration provides a distinct keyed connection within the M8 connector family, helping differentiate this connector from A-Code and B-Code versions.

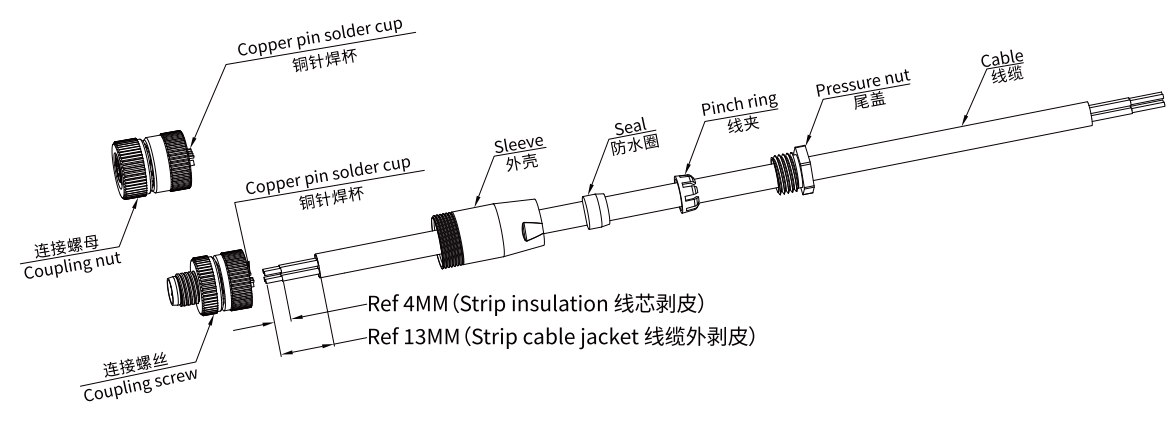

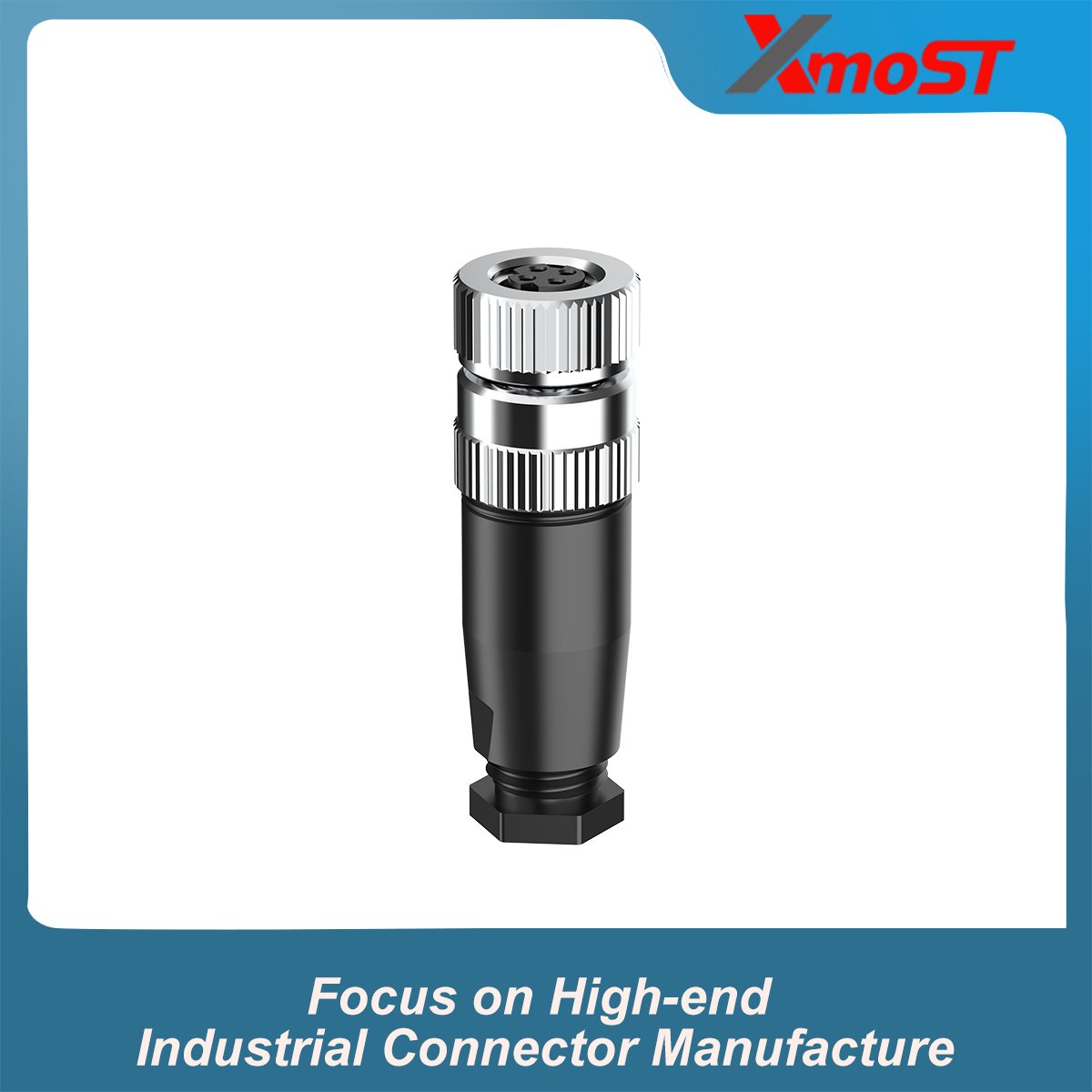

Solder-Type Assembly
The connector uses solder termination for attaching the cable conductors to the contacts. This assembled configuration allows the cable length and wiring arrangement to be determined during assembly instead of relying on a fixed molded cable.
specified wire size for this 4-pin D-Code configuration is 0.34 mm² (AWG22).
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Series | M8 |
| Coding | D-Code |
| Contact Configuration | 4 Pin |
| Connector Type | Female Straight Assembled Connector |
| Operating Standard | IEC 61076-2-104 |
| Rated Current | 4 A |
| Rated Voltage | 60 V |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤5 mΩ |
| Shielding Performance | Shielded / EMI-Shielded |
| Locking Method | M8 × 1.0 Screw |
| Screw Torque | Recommended: 0.2 Nm / Max.: 0.4 Nm |
| Wiring Method | Soldering |
| Wire Gauge | 0.34 mm² (AWG22) |
| Operating Temperature | -25°C to +80°C Dynamic / -40°C to +80°C Static |
| IP Rating | IP67 |
| Pollution Degree | 3 |
Applications
- Industrial Automation
- Industrial Sensors
- Control Systems
- Measurement Equipment
- Factory Equipment
- Industrial Machinery
- Custom Cable Assemblies
M8 D-Code 4-Pin Female Connector is suitable for industrial equipment and custom cable assemblies requiring a compact female D-Code interface with solder termination.
